B u s i n e s s   to   B u s i n e s s

Partnering Connections

"We bring Manufacturers and Distributors together"







Manufacturers Looking for Distributors...















DURATEC

Duratec is an innovative compressed air and inert gas distribution system designed to be absolutely leak-proof, installed quickly and easily and maintained cost effectively.  As a result, Duratec saves time and money.

Duratec’s unique composite structure incorporates a rigid yet flexible aluminum core, permanently bonded to layers of durable high density polyethylene (HDPE) plastic. HDPE on the inner and outer layers provides superior corrosion resistance against aggressive manufacturing environments while eliminating any internal scaling and corrosion associated with traditional metal compressed air pipes.  The unique combination of metal and plastics creates a flexible yet rigid pipe that will not sag.  Its long, lightweight coils cut down on the number of potential leak points in a compressed air system.  And once bent, Duratec will main its shape, greatly reducing the number of fittings required.

Duratec fittings are supplied in tough nickel plated brass or stainless steel and utilize unique double o-ring seals to ensure long term joint integrity. These mechanical connections require no special tools or training and can be installed in less than 1 minute.

Duratec meets all the necessary ASME Codes; OHSA safety standards; NSF, CSA, ANSI/ASTM standards and is FDA Compliant.  The fittings also carry a national pressure vessel CRN0A02020.2C.  Duratec may be used for a wide variety of applications ranging from Plant air and inert gas distribution to valve actuation and CO2 delivery for carbonated beverages.

Sizes: 3/8”, ½”, ¾” and 1”

Operating Pressure: 200 psi at 73°F, 160 psi at 140°F

For more information about Duratec Airline or to inquire about Distribution, contact:

Bill Hawke

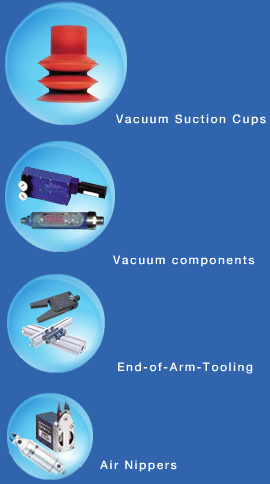

It all started with 20 suction cups. Today, FIPA offers over 20,000 versions - probably the largest selection worldwide. Far over 10 million vacuum suction cups have already been shipped to all parts of the world.
Meanwhile, FIPA has made a name for itself as a solution provider: It not only supplies all kinds of components - from vacuum generators to monitoring equipment and complete vacuum stations -, but also designs entire vacuum units and makes practical tests with customers´ samples.

End-of-arm tooling and air nippers
Primarily for extraction robots and devices for the plastics industry, FIPA supplies all modular profiles and components for custom assembly. As a partner of the Japanese market leader VESSEL, FIPA offers their complete line of automatic and manually operated air nippers.

Research and development
FIPA gives particular attention to the development of new products and the improvement of existing ones.

To Inquire about Distribution contact:

Mr Wilfried Hallenberger or

Mr Oliver Richter
