Size Does Matter With Ultraline’s Rodless Cylinders

Ultraline Ltd is a leading UK manufacturer of pneumatic rodless cylinders
and supplier of magnetic sensors, with a network of worldwide distributors.

Ultraline’s rodless cylinders have been used extensively on a wide range of
applications around the world. These include door actuation,
screen-printing, special purpose machinery and packaging machinery just to
mention a few.

The success of the rodless cylinder range has been credited to the high
performance sealing systems, low leak rates, smooth running, precise
cushioning and excellent load movement capability, as well as the ability to
supply within 24 hours.

Available in various sizes with strokes from 6,000mm as standard with a
compact option up to 40% shorter with the option of slide bearing carriages
for heavier load movement. The cylinders are available in diameters 18mm,
25mm, 32mm, 40mm, 50mm and 63mm.

Ultraline are able to satisfy the needs of most applications as well as
being able to supply specials to customer specifications. Ultraline prides
itself on being a 100% UK manufacturer employing state of the art technology
and a strategy of providing its customers worldwide with high quality,
robust products at competitive prices.

The best engineering, competitive pricing and speedy delivery are the
objectives met by the Ultraline team to ensure that the demands of the
machine builders and designers are satisfied wherever, and whenever, they
need a magnetic sensor or rodless cylinder.

To assist in the selection of an Ultraline rodless cylinder to suit your
application, a free of charge sizing CD is now available. The CD is easy to
use and provides step-by- step instructions on selection program and
complete 2D and 3D drawing files. To order your CD or to discuss the
specification of any product to meet your needs, please telephone (+44)
01908 578617 or e-mail: sales@ultra-line.com or visit Ultraline’s website at
www.ultra-line.com



SMC Corporation of America has released version 3.0 of their convenient Model Selection Software.

The application can be run right from the www.smcworld.com site, and allows users to input their pneumatic system requirements and see an output of the system characteristics, along with recommended product series right down to the basic part number. By considering initial cost as well as operating costs, the software also selects equipment that minimizes the total cost of the pneumatic system.

For more complex models, version 3.0 of the Model Selection Software allows users to simulate circuits with multiple cylinders and multiple valves. The software also provides dynamic system characteristics such as displacement, velocity, acceleration and system pressure.

“This software allows engineers to model and simulate a pneumatic circuit before they buy the parts. Knowing how the system will respond before you physically build it is a tremendous advantage,� stated John Halvorsen, Product Manager for SMC Corporation of America.



Norgren's KIP acrylic sub plates simplify fluid system design

Norgren's KIP series of acrylic sub plates are the ideal answer for simplified design and easy installation of complex media flow requirements. This goes a long way to reducing design and installation times thus reducing that all-important time to market.

Use of an acrylic base permits the flow of various media through a single base using multiple inlets and outlets. For greater design flexibility flow paths can be varied and directed to match specific design requirements. Norgren engineers can aid the customer in selecting the most effective design for easy installation, access and the best product aesthetics. Further information can be found at www.norgren.com

Norgren



GeoMetric Series, a new ISO/VDMA cylinder line that offers elasticity to tight design budgets�

Integrated switch grooves that are compatible with the majority of all the most popular sensors and reed switches�

Numatics is pleased to announce the introduction of the new GeoMetric Series cylinder line. The GeoMetric� conforms to the following cylinder specifications: DIN/ISO 6431 and VDMA 24562. One of the most desirable features of the cylinder line is the dual groove design that is a standard offering on all GeoMetric� cylinders. The dual groove design offers great flexibility when mounting switches and sensors to the cylinders. One groove is a traditional round groove and the other is what we call a CombiGroove�. The CombiGroove� is a unique design that will accept round and angular switches, sensors, etc.

Additionally, the CombiGroove� is designed to accept most all of the popular switch and sensor manufacturer's products. This type of flexibility makes the GeoMetric an easy switch from the traditional ISO/VDMA cylinder lines.

The GeoMetric� is available in 6 bores sizes ranging from 32 mm to 100 mm. Stroke lengths range from 2 mm to 2 meters. Pneumatic cushioning can be regulated by adjusting the brass adjustment screws. Brass is a robust alternative to the conventional plastic adjustment screws. The GeoMetric� series encompasses a high quality, sintered bronze rod bushing. This is a direct effort to win the battle against premature cylinder failure. Furthermore, the GeoMetric� includes a comprehensive list of options, i.e., stainless steel piston rod, high temperature seals, etc. In addition to all of the integrated benefits, the GeoMetric� cylinder line is priced with tight design budgets in mind.

The cylinder name "GeoMetric�," has a two part meaning. "Geo" represents the cylinders worldwide availability and "Metric" refers to the units of measurement to which the cylinder is produced. The GeoMetric� Series cylinder line will be introduced to the North American market on September 30, 2005.

Numatics
103 Sam Watkins Boulevard
Mt. Pleasant, TN 38474
(615) 771-1200 - telephone
(615) 771-1201 - fax
www.numatics.com



New Servo Rotary Offers Innovative Features

The new servo actuated rotary PT-AS70 is a direct current servomotor coupled to a gear driven axis providing unlimited rotation capability. All of the rotation attributes can be controlled such as acceleration, speed and deceleration. The current can even be monitored to control or limit the rotational torque.

The rotary produces up to 23Nm (17ft.lbf) max torque with a nominal output of 7Nm (5ft.lbf). Maximum velocity is up to 470�/s at an acceleration rate of 880�/s2. Repeatability is less than +/-0.02� under nominal conditions. The unit's overall mass is less than 1.7Kg(3.7lbf).

The PT-AS70 is an ideal match for the PT-AP70 servo-electric gripper allowing simple plug-and-plan functionality. Communication is optional CAN-bus, RS232, or Profibus-DP. All controls are fully integrated in the unit eliminating the need for an external controller card. The unit has a 16bit CPU where preprogrammed parameters can be downloaded and executed along with optically coupled digital I/O for monitoring and control of ancillary devices.


SCHUNK INC.
211 Kitty Hawk Drive
Morrisville, North Carolina 27560
Phone: 919.572.2705 or
800.772.4865
Fax: 919.572.2818
www.schunk-usa.com
info@schunk-usa.com




Pneumatic Linear Drive Without Piston Rod

New from Rexroth: GSU Series
GSU guided slide unit from Rexroth
The GSU series represents a new generation of pneumatic linear drives from Rexroth. Excellent guiding qualities within a small unit make the GSU a versatile standard module in handling technology.

The new slide unit can be used in gantries as an X-axis or as a work piece pallet in material supply. The rodless construction makes the unit particularly compact and optimizes machine design. With a speed of up to 1.5 m/s (4.9 ft/s), this drive enables short cycle times. Standard guides ensure high rigidity and precise slide guiding. The name is a good start: GSU stands for Guided Slide Unit.

The GSU series is available in two diameters: 16 mm and 25 mm. The end stops can be finely adjusted, a feature which allows for multiple positions with a single unit and simplifies construction. Diverse connection options allow for extremely flexible installation. Air connections may be used on either the sides or the front.

In order to optimize construction space, all air connections and sensors can be placed on one side.

The drive comes standard-equipped with an elastic shock absorber. It is also available with hydraulic cushioning for applications in which large loads must be stopped or extremely accurate end positions are important. As a part of the Easy-2-Combine automation system, the unit can be directly mounted with other components. Standard interfaces facilitate positive interlocking and frictional connections. Easy-2-Combine is the modular solution from Rexroth for multi-axis automation - versatile and direct.

In North America, the Bosch Group manufacturers and markets automotive original equipment and aftermarket products, industrial automation and mobile products, power tools and accessories, security technology, packaging equipment and household appliances. Bosch Rexroth Corporation, a merger of Bosch Automation Technology and Rexroth, is a wholly owned subsidiary of Robert Bosch GmbH. In the year 2004, Bosch Rexroth AG achieved sales of approximately $5.3 billion (4.1 billion Euros) with 26,400 employees.

Under the brand name of Rexroth, the company offers all relevant drive, control and motion technologies: from mechanics, hydraulics and pneumatics to electronics and associated services. Rexroth has 500,000 customers in over 80 countries and is an extensive supplier of components and systems for industrial and factory automation and mobile applications.

Bosch Rexroth

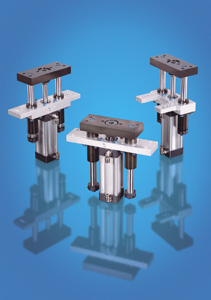

PHD's NEW Heavy Duty Guardian� Grippers Offer High Grip Force & Long Jaw Travels for Robust Parts Gripping

PHD has just released its NEW Series GRR Guardian� line of grippers. These grippers provide high grip force and are available in long jaw travels of 150, 200, 250, and 350 mm. The rugged design and jaw construction can withstand high impact and shock loads. These new heavy duty grippers are designed for gripping large, heavy parts and perform with precision in even the most demanding industrial automation applications, including small engine block manufacturing, automotive wheel rim manufacturing, foundry applications, clamping and fixturing during assembly operations, and much more.

Standard features include:

- Double acting for both internal and external gripping.
- Dual air-passage piston rod design allows rapid bore pressurization to accommodate fast cycle times.
- TC fluoropolymer composite guide shaft bushings provide long life and smooth jaw travel in demanding industrial environments.
- Three large diameter jaw guides span the length of the gripper to provide stable jaw travel, long allowable tooling length, and high moment capacities.
- Rack and pinion synchronizer is enclosed to protect the mechanism from debris and minimizes backlash.

Units can be specified as synchronized, non-synchronized, or non-synchronized with independently powered jaws to support diverse applications.

Inductive proximity switches are available for discrete indication of jaw position. In addition, Series GRR Guardian� Grippers can be specified with an optional jaw position sensor that continuously monitors the grip position of the jaws. These grippers are built "sensor ready" allowing the sensor to be factory installed or easily installed in the field. Units can also be specified with PHD's Rodlok� option, providing reliable part retention in the event of lost air pressure.

For more information, send for a free catalog today. For immediate assistance, call PHD, Inc. at (800) 624-8511 or visit our web site at www.phdinc.com/grr.

PHD, Inc., P.O. Box 9070, Fort Wayne, IN 46899
(260) 747-6151; FAX (260) 747-6754
www. phdinc.com
phdinfo@phdinc.com






NEW ABSOLUTE POSITION FEEDBACK (APF) OPTION FOR TOL-O-MATIC ACTUATORS ELIMINATES HOMING ROUTINES ON RESET.

TOL-O-MATIC has announced its new Absolute Position Feedback (APF) technology, the first fully-integrated linear actuator sensor that eliminates the need for homing routines. APF-equipped TOL-O-MATIC actuators provide analog feedback to the controller or PLC to determine actual load position. Work point variances can also be accommodated throughout the cycle, eliminating stoppage for manual set-ups. Systems with APF provide position feedback as soon as power is applied, allowing immediate resumption from shutdowns, resets and power losses. The APF option is currently available for TOL-O-MATIC BC3 pneumatic and B3S electric series actuators, and unlike fixed length sensors, can be ordered in incremental stroke lengths from 2 to 156 inches.

“APF is fully integrated within the actuator body, eliminating the need for complex mounting and also reducing the chance of damage to the transducer,� said Michael Dornfeld, TOL-O-MATIC Project Engineer. “The technology utilizes a non-contact, linear displacement transducer that offers high life expectancy, high speed, high linearity and repeatability compared to conventional linear potentiometers.� Dornfeld added that because the APF magnetostrictive transducer measures position directly, effects of screw/nut backlash can be eliminated from position feedback information.

In pneumatic applications using BC3-series actuators, APF can eliminate the need for hard-wired event triggers, and events can be easily programmed to a PLC without having to manually add or adjust switches. An analog signal of 0 to +10Vdc or �10 to +10 Vdc can be selected (based on control device) to make full use of the controller’s analog to digital conversion capabilities.

TOL-O-MATIC’s APF technology opens the door to greater productivity in a number of applications that demand load position location at operation start-up, or high performance/high volume production, including valve positioning, winding, measurement, stacking, inspection machinery, X-Y positioning set-up, load sensing and assembly machinery.

More information and performance data for BC3 pneumatic and B3S electric actuators equipped with the APF option can be found at www.tolomatic.com/APF, or by calling 1-800-328-2174.

Tol-O-Matic, a certified ISO 9001:2000 manufacturer, has been designing and manufacturing high quality motion control products for over 50 years. For further information, or free sizing and selection software, contact: Tol-O-Matic, Inc. 3800 County Rd. 116, Hamel, MN 55340. Phone: 800-328-2174. Fax: 763-478-8080. www.tolomatic.com





Vacuum System Components Improve Material Handling Safety

A full line of components, designed to enhance the safety of a wide variety of air-powered, vacuum-based material handling applications, is available from ANVER Corporation of Hudson, Massachusetts.

ANVER Vacuum System Safety Components feature the Mitey-AirVacTM totally self-contained venturi vacuum pump station that achieves 26� Hg and has an internal check valve to maintain vacuum in case of a power loss. Related components include a back-up vacuum reservoir and a leakage sensing system that will activate an alarm when it detects a 10% reduction of vacuum.

Allowing designers to create safe compressed air-powered vacuum material handling systems, ANVER Vacuum System Safety Components can be supplied with a full range of suction cups to match loads, such as AnverFlexTM pads with triple-seal edges for a sure grip. A leak-proof one-way vacuum check valve to help prevent vacuum loss, fittings, and tubing are also offered.

For more information contact:

ANVER Corporation
Mark Laycox, Group Manager
36 Parmenter Rd.
Hudson, MA 01749
(800) 654-3500 FAX (978) 568-1570

www.anver.com

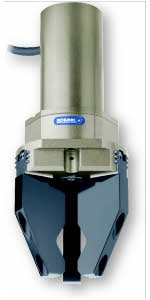

PT-AP 70 - New Servo Gripper Provides Sensitive Flexible Control

SCHUNK Precision Workholding Solutions has introduced the new PT-AP70 servo actuated gripper. The PT-AP70 was specifically designed to make difficult components such as glass, foam or sand molds easy to manage. The direct current servomotor is coupled to a gear driven ball bearing spindle. The fingers are guided with low friction linear bearings to allow ultra sensitive fully controllable actuation. Grip force, stroke and actuation acceleration can be dynamically controlled or controlled by pre-programmed parameters downloaded to the gripper. In contrast to pneumatically actuated units, the servo actuation is fully flexible.
The gripper has 70 mm of total stroke with the capability to produce 200N (45lbf) of grip force to accommodate a wide variety of work pieces. The guaranteed system repeatability is less than +/- 0.05 mm with an overall weight of 0.9Kg (2.0lbs). Many communication options are available: CAN-bus, RS232, or Profibus-DP. All controls are fully integrated in the unit eliminating the need for external controller cards.


SCHUNK INC.
211 Kitty Hawk Drive
Morrisville, North Carolina 27560
Phone: 919.572.2705 or
800.772.4865
Fax: 919.572.2818
www.schunk-usa.com
info@schunk-usa.com





Norgren's extends its VM series of pneumatic valve islands

Norgren, the motion and fluid control specialist, has extended it VM valve island family to include the new VM15. Following on from the success of its VM10 this expands the range of Norgren's valve island solutions and delivers even more advantage to OEM's.

With an unsurpassed flow to size rate of 1.0 Cv the new 15mm wide VM15 continues to deliver the high standards set with the 10mm VM10. The new VM15 allows customers to specify a cost effective compact valve island solution. Previously, to achieve the flow rates the VM15 can deliver, they would have had to opt for a more expensive larger footprint valve solution. The VM15 makes a real difference in projects that require cost savings and reduced installation space.

The VM series valve manifold range provides a high performance, cost effective and value engineered solution that is easy for customers to use and configure to their individual needs. Installation times for the VM series are reduced thanks to the use of integrated push in fittings. Should machine specifications change the configuration can be changed rapidly via interchangeable valve types and is easy to add extra valves for more functionality due to its modularity.

Suitable for deployment in a wide variety of industry sectors the VM series compact design makes it ideal for inclusion in projects that suffer from space limitations. Its high performance engineered polymer construction offers excellent strength and stability for harsh environments and the series is particularly well suited to applications that employ chemical wash down procedures.

With the VM series customers can choose from DIN rail, through hole and sub base mounting options. Valve islands can be configured from 4 to 16 stations with single or double solenoids and with a high number of possibilities for manual overrides and tube fitting sizes the result is a range with over fifteen million different combinations. Featuring a clean and sleek design that is aesthetically pleasing to design engineers all wiring connections for the VM series are made to one face of the unit for tidiness and protection.

When a customer comes to specify the correct VM series island for their given application selection has been made simple. For convenience Norgren provides a software configuration tool which is available online and on CD. This provides the customer with a part number, price and dimensions. Customers can also download 2D and 3D CAD drawings in 13 file formats.

Norgren is also focused on continually upgrading its existing solutions to offer customers even greater advantage. For this reason the VM10 has been enhanced with added design features such as additional mountings, 90� multi pole connectors for applications that need additional space savings and extra customer labelling options.

Norgren





MTS OFFERS IP67 HOUSING FOR WORLD'S SMALLEST MAGNETOSTRICTIVE SENSOR

MTS Sensors introduces new IP67 housing options for the C-Series modular linear-position sensor. The IP67 housing is ideal for applications subjected to dust, moisture and other environmental conditions that can interfere with operation. Particularly well suited for small- to mid-volume applications where an embedded design using the C-Series core sensor may not be feasible, the C-Series housing options allow the sensor to be safely and securely installed externally onto a product with limited design modifications for even the most robust applications.

The Temposonics C-Series sensor incorporates the latest in magnetostrictive sensor technology to produce the world's smallest magnetostrictive position sensor. Designed for use in OEM products, such as medical devices, small cutting/fastening/forming tools, and various consumer products, the C-Series sensor electronics fit completely inside a 36 mm (1.4 in) by 23 mm (0.91 in) cylindrical housing package, such as the new IP67 housing option from MTS.

"The compact size and new housing options provide a greater range of installation choices, making the C-Series an ideal choice to replace older technology sensors, such as linear potentiometers and LVDTs," said Jesse Russell, Product Marketing Manager, MTS Sensors Division. "While many high-volume OEMs will design the C-Series into their application housings, the availability of housing options, such as the new IP67 option, makes the C-Series a more viable option for many small- to mid-volume applications for which redesign for embedded installations may otherwise be too costly."

The C-Series Core sensor has a 0 to 5Vdc or PWM output available, and can be powered with a standard 5-volt power supply. The modular architecture allows the addition of a second electronics board that configures the sensor to operate using 12-volt power and also adds additional protection circuitry for EMI immunity. The optional board was designed to optimize the C-Series sensor performance in many mobile machine applications, including agricultural, marine and construction equipment as well as other applications with 12-volt supplies.

For more information about the C-Series sensor and its housing options, contact Jesse Russell, MTS Sensors Division, at 919-677-2314, jesse.russell@mts.com or via the Web at www.mtssensors.com.







AirCylindersDirect.com has a complete offering of proximity switches and sensors that are available in Reed and PNP and NPN electronic type. These high quality switches entail a multitude of performance advantages.

AirCylindersDirect.com cylinder sensors/switches feature advanced electrical protection against hazards such as short circuits, overloads, reverse polarity, voltage spikes and inductive spikes.

Standard Specifications:

·An extremely accessible, over-size Phillips head screw configuration interchangeable with other popular manufacturers
·Durable Cable Seal
·Robust Housing Material
·Innovative T-Slot Profile Design
·Extremely Bright 180� LED
Material and Construction:
·Housing materials are polyamide, PBTP reinforced fiberglass or aluminum depending of the sensor selected.
·Mounting clamps are available for attaching to the virtually any cylinder size and type.

Telephone: 1-866-404-5300
AirCylindersDirect.com
Nashville, TN





SRU - New Rotary Actuator Series Sets a New Benchmark

SCHUNK introduces a new series rotary actuator SRU, employing both high load capacities and many new technological advances.

The advances start with innovative piston guidance using sleeves in the optimized aluminum housing. The radial clamped end stop adjustments allow easily accessed and fully adjustable rotation angles from 0 to 180 degrees. The housing is not only light it has mounting patterns on both the bottom and side for easy implementation.

The revolutionary locked intermediate position is a highlight new feature. An internal mechanical ball locking mechanism provides rigid center position locking and center position dampening just like the end positions. The standard hydraulic shock absorbers assure smooth, fast and accurate positioning.

Bore sizes ranging from diameter 20mm to 60mm and are available both single and double powered to produce torques from 1.5Nm to 72Nm. Popular features like air feed through, inductive and magnetic position sensing and flexible center bores were maintained from well-accepted predecessor OSE.

From the size and torque options to the locked, dampened center position to the well known features SCHUNK pioneered with previous rotary actuators, the SRU is the state of the art in modern rotary actuation. SCHUNK quality, innovation and durability no need to compromise on your next rotary actuator application3 lbf) to 270N (61 lbf), the GSM will be perfect for your next gripper-swivel application.

SCHUNK INC.
211 Kitty Hawk Drive
Morrisville, North Carolina 27560
Phone: 919.572.2705 or
800.772.4865
Fax: 919.572.2818
www.schunk-usa.com
info@schunk-usa.com

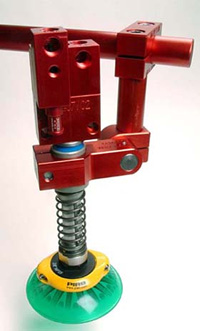

PIAB INTRODUCES RESILIENT LC30 LEVEL COMPENSATOR

Flexible Design is Ideal for High Automation Material Handling

Hingham, MA - PIAB Vacuum Products, a leading manufacturer of industrial vacuum products and components, introduces the resilient LC30 level compensator, a new device that allows for extremely flexible material handling with suction cups. Designed to adjust level differences in lifting devices that are fitted with several suction cups, the LC30 decreases demand for exact vertical positioning. The LC30 is intended for material handling applications in a range of industries, including packaging, automotive, appliances, wood, HVAC, and other industries that require a high degree of automation.

PIAB’s LC30 can be easily integrated into any of the company’s vacuum products, especially the popular VGS�3010 (Vacuum Gripper System), which is an advanced solution for decentralized vacuum systems that combines DURAFLEX� suction cups and patented COAX� multi-stage ejector technology. The LC30 can mount directly in the groove of an aluminum profile, and is easily fixed in place with a hexagonal screw and T-nut.

Featuring a 1.18� (30mm) stroke with low building height, PIAB’s LC30 can be adjusted by 0.47�, and can also be made non-rotational. The LC30’s conical stainless steel spring rests in a polyurethane busing that ensures excellent damping characteristics and allows shock load at full stroke. The materials that comprise the level compensator have been chosen to minimize the weight of the mounting gripper, eliminating high shear forces and, thus, extending system life. The LC30 weighs just 7.76 ounces (excluding fixing screws) and has a maximum vertical load of 157 lbf.

Mike Tuohey
Marketing Communications Manager
PIAB
65 Sharp Street
Hingham, MA 02043
Ph: (800) 321-7422/(781) 337-7309
Fax: 781-337-6864
mtuohey@piab.com
www.piab.com




Norgren introduces new 3-way process control solenoid valve with approval according IEC 61508 / SIL 4

Norgren, the motion and fluid control specialist, has introduced a new series of control valves ideally suited for the harsh operating environments of the chemical and process industries. The new 98000 series control valves feature a wide operating temperature range of -40°F to +176°F and the valves are offered with a 8mm orifice that fills a requirement within these industries. Designed to make a real difference the new 3/2 way control valves operate without lubrication which has a beneficial effect on the reliability of operation.

The process industry imposes specific demands with regards to equipment utilized within it. To this end the 98000 series has been type tested to IEC 61508 and is certified to safety integrity level 4. The devices are available with a wide range of protection class solenoids such as IP65, EEx me, EEx md and NEMA 4 and are CSA and FM approved with metal housing for outdoor implementation. The valve's flow rates are fully comparable with those of indirect controlled units. Further information on this series can be found at www.norgren.com





High Relief Flow Now Available with �" Electronic Pressure Regulator!

Reverse flow rates in excess of 25scfm at 100psi are possible with the new QB3 electronic pressure regulator by Proportion-Air. Backpressure as well as high relief applications are now possible without the use of a quick exhaust valve and/or additional plumbing. The QB3 uses a solid state pressure sensor to monitor the pressure at the work port and then adjusts the regulator to the desired pressure, by filling or exhausting air from the system. The product can be calibrated to operate through atmosphere and regulate vacuum, or can be used as a programmable pressure relief valve.

Contact:
Mr. Thomas Becknell
Proportion-Air, Inc.
P0 Box 218, McCordsville, Indiana, 46055
Phone: 317/335-2602, Fax: 317/335-3853
E-mail: tomb@proportionair.com
Web: http://www.proportionair.com





Distribution Box Enables Quicker Sensor Installation

Computerized controls can be connected to sensors and actuators at the machine level quickly and efficiently with the D-Box from Canfield Connector. Designed to reduce installation and troubleshooting time, the D-Box can be used with 8mm, 12mm or 8mm/12mm quick-connect cables. It also carries a NEMA type 6 / IP 67 dust tight and water resistant designation and is epoxy encapsulated for harsh environments with a temperature rating of -20� to +80� C.

Other D-Box features include Power / I/O LED indicators, built-in input surge suppression, NPN (sinking)/PNP (sourcing) options, 15� standard cable length and optional DIN rail mounting. Its 120V (max.) and 12 Amp unit / 4 Amp I/O ratings make is suitable for a variety of machine applications.

Complete features and specifications are available at the company’s website, www.canfieldconnector.com or by calling 800-554-5071.





Compact Electronic Pressure Regulator Combines Versatile Mounting, High-Performance, Reliability and Now ATEX compliant

AMHERST, NH, USA - ControlAir Inc. announces the Type-550X Miniature Electropneumatic I/P, E/P Transducer with ATEX compliance. The unit's compact housing, accessible ports and easy adjustments provide an ideal answer to applications that are space-constrained. The Type-550X with 4-20mA signal, approved by Factory Mutual (FM) and the Canadian Standards Association (CSA), is now compliant with the ATEX directive 94/9/EC for equipment intended for use in potentially explosive atmospheres in Europe.

The Type-550X is an electronic pressure regulator that converts a variable signal (current or voltage) to a proportional pneumatic output. The Type-550X's economical startup cost, low air consumption, and reliable performance make this unit a great investment. The unit's compact housing permits space saving and dense mounting while multiple mounting configurations provide installation versatility. The ATEX compliant Type-550X comes standard with a NEMA-4X housing and is approved for intrinsically safe applications. Input and output ports on both front and back of the unit allow for versatile plumbing. High flow capacity delivers quick actuation of dampers, louvers, valves and cylinders. Other features include field reversible, RFI/EMI protection, external zero and span adjustments, and removable external orifice.

The Type-550X has a built-in volume-booster that provides up to 20 SCFM air flow capacity allowing increased control speed in critical applications. The ATEX approved Type-550X standard and zero-based range units utilize an input signal of 4-20 mA. Output pressure for the standard range include 3-15 psig, 3-27 psig, 6-30 psig, 2-60 psig and 3-120 psig. The zero-based range output includes 0-30 psig, 0-60 psig and 0-120 psig. Supply pressures range up to 100 psig in the standard range and up to 130 psig in the zero-based range. The standard mounting bracket allows mounting directly on a valve, wall, panel, or pipe. Optional DIN rail and manifold mounting kits are available. Multiple choices for electrical connection include �" NPT conduit terminal block and DIN 43650 connections.

The Type-550X provides precise air pressure regulation to actuators, valves, positioners, cylinders, clutches, brakes and other final control elements. Industries that utilize the Type-550X include Petrochemical, HVAC, Energy Management, Textile, Pulp and Paper, Paper Converting, Robotics, Machine Control, Medical, Semiconductor and Food and Drug.

ControlAir Inc. manufactures precision pneumatic and electropneumatic controls. ControlAir's markets include process control, semiconductor, printing and converting presses, diagnostic and surgical medical equipment, robotics, quality control, automotive, analyzers, compressors, pumps and paint equipment. For more information, ControlAir's website, www.controlair.com, offers full product specifications with pdf files, product CAD drawing files, and company profile.

Contact:
Melissa Ryan
ControlAir Inc.
8 Columbia Drive
Amherst, NH 03031 USA
Phone: 603-886-9400
Fax: 603-889-1844




Easy-2-Combine - The New Automation System from Rexroth

Directly combinable individual components simplify handling tasks with small parts. Providing customers with modular solutions for common handling processes is the central idea of the new Easy-2-Combine automation system.

Easy-2-Combine is the solution for multi-axis automation tasks with individual components that can be combined in simple, time-saving assembly steps. This means that the most common applications in assembly technology can now be done with standardized interfaces. Centering elements are used for interlocking mounting and connections for sensors and the air supply are provided at several positions throughout the system, making complicated and expensive connection kits unnecessary. Rexroth has Easy-2-Combine components that can perform linear movements, pneumatically driven rotation movements, as well as gripper functions. Many components feature easily adjusted end position settings, thus drastically reducing final commissioning time. Connection kits to flexibly assemble additional components will also remain in the Rexroth program. As a result of all this, the Easy-2-Combine system is already equipped for expansion. Rexroth's goal is to integrate additional components and sizes in the system Easy-2-Combine for increased handling technology solutions.

Bosch Rexroth



AirCylindersDirect.com is proud to announce the EN Series. The EN Series combines cost-effectiveness with proven dependability. The EN Series is a repairable NFPA Interchangeable cylinder line that was specially designed to excel in the most demanding applications. The EN Series encompasses many value-added features such as an extra long graphite filled cast iron rod bushing. This robust air cylinder line offers elasticity to tight design budgets without sacrificing quality.

Standard Specifications:
- NFPA Interchangeable
- Bore Sizes: 1-1/2" - 6"
- Rod Diameters: 5/8" - 1-3/4"
- Rod Ends: multiple standards
- Strokes: Up to 48"
- Pressure Rating: 250 PSIG
- Standard Fluid: Filtered Air
- Standard Temperature: -10� F to + 165� F
- Mounting Styles: 17 Standard
- Single Rod and Double Rod

Optional Features:
- Seals for high temperature service: 10� F to + 250� F
- Cushions: Adjustable as well as Fixed
- Bumpers and Silencer Bumpers
- Metallic Rod Scraper
- Stainless Steel Components
- Rod Stud

Telephone: 1-866-404-5300
AirCylindersDirect.com
Nashville, TN





Norgren introduces its new range of Pneufit D food grade pneumatic fittings

Norgren, the motion and fluid control specialist, has extended its range of world-class push in fittings with the introduction of the all-new Pneufit D series. Providing a perfect complement to its existing Pneufit range the new composite fittings feature quick and easy connection without the need for tools thus saving on valuable installation times. Pneufit D is suitable for a wide range of compressed air applications and is approved by FDA, WRAS (UK), SK Zert (Ger) and NSF-51 (USA) for use in food processing.

The integral stainless steel grab rings offers fast secure assembly for Nylon PU and PE tubing and the new range consists of over 45 different shapes equating to over 600 part numbers. Tube sizes are available from 4mm to 12mm in metric and 5/32" to �" in inch. Pneufit D can also be specified with NPTF, BSP and UN type threads.

Focused on providing a wide range of solutions Norgren now offers customers Pneufit C for general industrial, Pneufit D for specialist food, water and beverage and metal Pneufit for higher specification requirements. More information on the complete Pneufit series can be found at www.norgren.com







HOFFMAN UPDATES OPERATOR INTERFACE ENCLOSURES

New CONCEPT� Enclosures ideal for flat screen devices

To address the aesthetic, ergonomic and functional demands of modern manufacturing, Hoffman introduces the newly redesigned CONCEPT� Operator Interface Enclosure series. Twenty standard enclosures designed for pendant or pedestal mounted controls deliver functional and attractive integration of new generation flat screen OI devices including touch screens and LCD monitors, as well as push-buttons and other traditional control schemes.

"The feature-rich CONCEPT Enclosures were developed as an ergonomic response to newer monitors and display technology," said Mark Saunders, Hoffman Product Manager. "These enclosures reflect the requirements of flat screens, providing more sizes and options for the profusion of computer-driven controls".

A single part number orders a complete enclosure including a 14-gauge steel body with quarter-turn latching back door, a blank aluminum front plate for easy customization, and aluminum "comfort grip" handle extrusions that extend the height of the enclosure. Adding modern aesthetics and improving operator comfort, these extrusions are available in a choice of standard accent colors including blue, red, purple and turquoise, as well as a standard RAL 9005 black polyester powder finish. Other options include attached clipboard/whiteboard, a drive access door, keyboard tray and accessory handles.

Twenty new models are available in a wide range of sizes. Each model is pre-drilled for top mounting using a Series 2 or Series 4 50/60 pendant arm, or a pedestal. Like most Hoffman enclosures, the CONCEPT OI can be easily modified to your needs with over 100 finish colors and textures, holes and cutouts to your specifications, and a complete line of accessories.

Hoffman CONCEPT OI enclosures are available throughout North America through authorized Hoffman distributors. Visit www.hoffmanonline.com to learn more and to locate your local Hoffman sales office.

Hoffman, headquartered in Anoka, Minn., is a leading manufacturer of enclosures and accessories to protect mission critical electronic components in the data communications, government, industrial, and commercial markets. Additional information can be found at www.hoffmanonline.com





New Solenoid Valve Connectors Feature "Made in America" Quality, Design and Value

The new Industry Standard SM 5F and 5J solenoid valve connectors from Canfield Connector are virtually indestructible at an affordable price. Now, users no longer need to sacrifice quality or pay a premium for an American-made connector. 5F and 5J connectors offer a completely molded design for superior environmental integrity over field wire versions.

Other features include captive screw and molded in gasket with the assembly so there's nothing to lose. The 5F and 5J connectors are available in ISO, Mini, 8mm, and 9.4mm sizes. Options include indicator lights, surge suppression, and 6' or 15' standard wire lengths. Low profile straight line or right angle configurations allow for installation in many limited space applications. Custom wire lengths and hard usage (STO) cable are also available. All 5F & 5J connectors are made in the USA and backed by Canfield's outstanding service. Complete specifications are available by contacting Canfield Connector or by visiting the company's web site.

For more information contact:

Canfield Connector, Inc.
Tel: 800-554-5071
www.canfieldconnector.com





PIAB INTRODUCES NEW ACCESSORIES FOR P2010 PUMP

Premium Options Expand Versatility for Electronic Manufacturing Applications

Designed to save energy costs, space and time, the P2010 accessories create more versatility in functions for electronic manufacturing applications requiring light and reliable pick-ups.

The P2010 can be accompanied by one type of Blow-off, four types of Quick-Release, and one DIN-rail mounting bracket. The accessories are mounted by pressing the two stems of either aluminum housing into the push-in connections of the P2010 housing. The DIN-rail mounting bracket is fastened by screws to the four connection holes on the underside of the pump.

The Quick-Release unit can be redesigned to suit a variety of specific electronic applications, as the user can add any desired number of Quick-Release tanks. While it is possible to build up to five different models, PIAB has chosen to build two standard models that can be easily redesigned by users and their customers. These units can all be complemented with a vacuum switch in M5 thread, PNP or NPN design. The vacuum switches can be connected either directly to the M5 thread of the P2010 housing or to the M5 thread of the Blow-off unit.

Mike Tuohey
Marketing Communications Manager
PIAB
65 Sharp Street
Hingham, MA 02043
Ph: (800) 321-7422/(781) 337-7309
Fax: 781-337-6864
mtuohey@piab.com
www.piab.com





VENTURI VACUUM PUMPS, LIGHTWEIGHT, FAST, EASY TO USE

An upgraded line of micro-miniature, compressed air powered venturi vacuum pumps that eliminate vacuum controls and let designers use standard pneumatic controls is being introduced by ANVER Corp. of Hudson, Massachusetts.

ANVER JV Vacuum Pumps are lightweight venturi vacuum generators that can be used with high speed, high vacuum pick-and-place systems and provide milli-second attach-and-release. Weighing only 0.63 oz., they can be mounted at the pick-up point, accommodate several types of suction cups, and can be controlled using standard compressed air supply valves and components.

Providing the flexibility of using off-the-shelf compressed air components and fittings, ANVER JV Vacuum Pumps achieve a 26"Hg vacuum with either a 0.50 or 0.74 scfm flow rate. Molded from thermoplastic and color-coded with their flow rate, they are available with 5 mm female threads (which 10/32 fits right in) or with 5/32" (4 mm) O.D. tube connection ports.

ANVER JV Vacuum Pumps are priced from $9.98 each and are made in the USA. Samples and literature are available upon request.

For more information contact:

ANVER Corporation
Mark Laycox, Group Manager
36 Parmenter Rd.
Hudson, MA 01749
(800) 654-3500 FAX (978) 568-1570

www.anver.com





PZV - New 4-Finger Concentric Gripper

SCHUNK Inc. introduces a new series of 4-finger centric grippers known as PZV. Currently, 2- and 3-finger grippers cover most industrial and automation handling tasks. They offer high positioning accuracy when gripping coplanar cylindrical work pieces. 4-finger grippers are required if cylindrical work pieces are palletized in a grid. In the case of a 3-finger gripper, however, at least one of the fingers interferes with a neighboring component. The PZV takes advantage of the given space at the quadrants of the work pieces with its four fingers. The PZV gripper is ideal for these applications.

To make the PZV versatile during other applications, you can use it as a parallel gripper for clamping different parts by mounting two different sets of fingers. This eliminates the need to change tooling, while also reducing setup time. The PZV is available in 4 sizes and achieves grip forces from 580 N (130 lbf) to 7,100 N (1,600 lbf). With strokes ranging from 6 mm to 25 mm per finger, the PZV has the capability to cover a large range of work pieces.

The PZV is built with proven technology from the 2-finger PGN-plus and 3-finger PZN-plus grippers using the serrated jaw design. The serrated jaw design and the proven wedge hook system gives these grippers a higher moment capacity, thereby allowing higher accelerations and heavier work piece weight. SCHUNK has also provided mounting for inductive proximity sensors with fully adjustable targets and integrated mounting of magnetic switches.

SCHUNK INC.
211 Kitty Hawk Drive
Morrisville, North Carolina 27560
Phone: 919.572.2705 or
800.772.4865
Fax: 919.572.2818
www.schunk-usa.com
info@schunk-usa.com





New Compact and Modular Vacuum Pump with Built-in Control Functions for More Efficient and Reliable Handling of Objects

Based upon PIAB’s patented COAX� ejector technology, the P3010 AVM� is a mini-sized compact, compressed air driven vacuum unit that boasts of multiple integrated control functions. PIAB’s P3010 AVM is ideal for highly automated manufacturing processes where robots are used in handling of metal sheets, boards and plastic items in a variety of industries.

PIAB’s P3010 AVM features two built-in vacuum switches for more efficient and reliable handling of objects. These vacuum switches are used to send a ready-signal when the object to be handled is gripped, and a signal to activate the energy-saving function. The P3010 AVM unit also has a valve for start/stop of the pump, plus a blow-off valve that makes it possible to release the objects much faster while also cleaning the vacuum pipe. The ON/OFF valve is offered in two versions: normally open (NO) or normally closed (NC).

The modular design of the P3010 AVM, which measures 4.0 x 0.7 x 6.3 in., allows for the installation of several units together and connection accessories. The P3010 AVM’s ejector housing is made of anodized aluminum, and the complete unit has a safety classification of IP65. The recommended feed pressure is 45 psi. The air consumption is quite low at 1.0-2.0 scfm (two sizes) at the recommended feed pressure, while the suctioned volume of air is up to three times larger (3.0-6.0 scfm). The P3010 AVM has a very reliable function throughout the range of 25 to 87 psi, which is a great advantage as fluctuations in existing compressed-air piping are quite common.

PIAB



MINIATURE PNEUMATIC LINEAR ACTUATOR FITS TIGHT SPACES

The AGMS compact air cylinder offer a high performance solution for linear
motion applications that require short strokes coupled with compact boundary
dimensions and high loading capability. The compact size of this pneumatic
miniature linear actuator is ideal for use in tight spaces needing large
payloads.

New AGMS series mini-linear actuators from AGI provide a load-carrying
capacity of 3 to 28 lbs. yet the total height of the assembly is only 0.813
inches, making this one of the smallest commercially available pneumatic
linear actuator.

This precision mini-slide has a T-slot bearing design that is supported the
full length of the body to carry heavy loads. AGMS straight-line design
offers High moment load and high accuracy in a compact lightweight package.
It features a lightweight aluminum base that is hard anodized and a carriage
made from Ampco 18 aluminum-bronze. Standard mounting holes on the slide
carriage and endplate make it easy to attach the mechanism being moved and
the unit's base offers four holes for mounting. Stroke adjustments and locks
are standard on end of extend and retract of stroke.

The Mini-Linear Actuator is part of a new product line that offers flexible
configurations. The Pneumatically actuated mini slides have two bore sizes
.5 and also a .75 inch available in .5, 1.0, 1.5 and 2.0 inch strokes.
Optional switch kits allow the use of inductive proximity switches for easy
interfacing to electrical controls.

AGI supplies a complete range of sophisticated automation products that
include, parallel grippers, rotary actuators, thrusters, linear actuator
slides, mini slides, tool changers, overload devices. Available in imperial
and metric versions for flexibility of design for a world market.

For more information on this product, send for a FREE catalog today. For
immediate assistance, call AGI, at (203) 459-8345 or visit our web site at
www.agi-automation.com





Norgren introduces new VP12 miniature proportional motion control valve

Increasingly, automation specialists need to raise the levels of both functionality and performance without compromising on cost or space. Norgren, the motion and fluid control specialist has introduced the VP12, which has been developed with these demands in mind. With over twenty years experience in proportional technology Norgren has optimized the design of the new VP12 to provide for the accurate control of pressure in a cost effective package. Suitable for a wide variety of applications within industries such as automotive, packaging, process and medical the VP12 delivers excellent control characteristics, high flow capabilities and optimized use of space.

Available in various pressure ranges up to 116 PSI the reliable and rugged VP12 provides an advantage to applications that require a compact solution due to limited installation space and the ease of connection makes it quick and simple to install. With an operating temperature range stated at 32 to 140°F and IP30 weatherproof protection the devices have a maximum flow capacity of 200 L/min and feature low power consumption. Delivering better system control without paying for a costly solution the VP12 proportional valve benefits from excellent control resolution and features a fail safe mode upon loss of signal or power. Further information on Norgren's complete range of proportional solutions can be found at www.norgren.com




Rexroth Introduces RWT Pneumatic Index Table for Automation Applications

The new Rexroth RWT index table combines proven Rexroth mechanical and pneumatic drives with small dimensions and a flat, circular design, ideal for use in compact automation systems.

The RWT index table offers accurate positioning by continuous stepwise rotation instead of forward and backward motion. A typical application of the index table includes indexing a workpiece requiring four, six or eight processes, resulting in favorable manufacturing flexibility.

A double-acting, piston-type ratchet and gear mechanism provide accuracy up to +/-0.2 degrees, and the table has a useful plane-mounting surface with threaded mounting holes and locating dowels for precision and strength. Its flat design and high torque also enhance the big performance of this small device.

The RWT index table is available in six different step versions that are also prepared for inductive sensors. The series includes 45-degree, 60-degree or 90-degree index angles with rotation to the right or left.

Bosch Rexroth

Angie Petrick
Account Coordinator - Lead Management Services
MarketSense
681 Commerce Street
Burr Ridge, IL 60527
Voice- 630-654-0170 ext. 115
Fax- 630-654-030
apetrick@market-sense.com





New 2-Finger And 3-Finger Servo-Electric Grippers

SCHUNK Inc. introduces a new series of servo-electric grippers, EGN 100, a 2-finger parallel type and EZN 64 of the 3-finger centric type. The basic principle of these two servo grippers comes from their proven pneumatic counterparts PGN+100 and PZN+64. Due to the integrated servomotor and encoder for position feedback, the grippers can be actuated in either a force or positioning mode and allows for adjustment of the gripping force, position or speed.

The EGN & EZN have an external controller that is supplied with 24V DC and can be controlled by a CAN-bus or RS 485 communication interface. This controller also has a digital control input making it easy to integrate it to an existing application without the CAN-bus or RS 485 communication capability capabilities. The EGN 100 gives a stroke range of up to 20mm and a grip force of up to 600 N (135 lbf). The EZN 64 has a stroke of up to 12mm and a grip force of 500 N (112 lbf).

With the capabilities of the EGN & EZN servo grippers you can improve a wide range of processes. The position feedback of the encoder allows you to sort parts while transporting them instead of having a separate measuring operation determining the part size. Typically on robotic applications, the end effector is the only component that requires a pneumatic supply and valve to actuate it. The EGN or EZN will eliminate the need for air in these applications. The EGN & EZN is a great addition to the growing electric product offering of SCHUNK.

SCHUNK INC.
211 Kitty Hawk Drive
Morrisville, North Carolina 27560
Phone: 919.572.2705 or
800.772.4865
Fax: 919.572.2818
www.schunk-usa.com
info@schunk-usa.com




Ultrasonic Flow Meter Handles Suspended Particles

Hedland HTTF Ultrasonic Flow Meters are a reliable solution for machine tool coolant lines and other industrial processes where contaminants can cause inaccurate readings. The non-invasive meters are not affected by suspended solids or gas pockets and provide accurate, bi-directional flow measurement. Because they simply clamp onto the outside of the pipe they are easy and economical to install.

The meters can be used with carbon steel and stainless steel pipes, and copper and plastic tubing in sizes from � " (12 mm) to 2" (50 mm) with liquid temperatures from 0oF to 185oF (-20oC to +85oC). The enclosure is weather proof for indoor or outdoor mounting and is available with or without a rate and totalizer display. Remote mount transducers are available for pipe sizes from �" (12 mm) to 100" (2540 mm).

Direct interface is provided for integrated data collection systems via 4-20mA output and either TTL-pulse or simulated turbine meter outputs that are proportional to the fluid flow rate.

UltraLinkTM, a Windows� compatible software utility is available for customer configuration and in-field calibration.

Hedland is a leading manufacturer of flow meters, flow switches and transmitters and portable hydraulic test equipment for a broad range of industrial applications. The company offers products for use with liquid, compressed gasses and air. For complete specifications on the HTTF Ultrasonic Meter call 1-800-433-5263, visit Hedland's website at: www.hedland.com, or e-mail questions to: hedlandinfo@racinefed.com. Technically trained customer service representatives are available to assist in the selection process.




ANVER TT Series Transfer Tubes are made from aluminum, with an anodized finish, and have a straight-thru bore to let materials pass freely without clogging. Featuring a new mounting clip for easy installation, these tubes are powered by compressed air which creates a Venturi vacuum and can be used for a wide range of conveying applications.

Available in sizes from 0.375� to 1� I.D., with 15 to 95 SCFM air flows, ANVER TT Series Transfer Tubes provide controlled speed and output flow by regulating the input air pressure. Maintenance-free and designed to let several tubes operate from a single air source, applications include material transfer, hopper loading, and dust- and trim waste removal

Anver Corporation
36 Parmenter Rd.
Hudson, MA 01749
(800) 654-3500 FAX (978) 568-1570
e-mail: anver@anver.com

www.anver.com





SCHUNK Inc. introduces a comprehensive selection program for grippers SSG 1.7. This intuitive program queries required parameters entered by the customer and determines the appropriate gripper for the application. The entry of these parameters is made user friendly providing detailed information and 3-D graphic windows that can be easily viewed for each parameter. The program takes into account all aspects of the application from input air pressure to the material of the gripper fingers. Using real engineering calculations and proven scientific laws, the program will output the proper gripper for the application with all needed engineering data that results from the calculation.

The program will allow you to accurately size a gripper or double-check a pre-selected gripper or gripper type. The SSG 1.7 program takes things like finger length, and friction or capture gripping into account along with moment forces, whether they are due to acceleration from a robotic application or generated from an assembly process. The program also considers the factors in the environment of the application such as high temperature, corrosive fluids, fluids with and without particles, cleanroom, and normal environments.


The SSG 1.7 will give you the best gripper for the application eliminating the guesswork or over sizing often used due to other antiquated selection methods. Increase your confidence and optimize your system with a true engineering based software. Now the most technically advanced grippers are sized with the most state of the art software.

SCHUNK INC.
211 Kitty Hawk Drive
Morrisville, North Carolina 27560
Phone: 919.572.2705 or
800.772.4865
Fax: 919.572.2818
www.schunk-usa.com
info@schunk-usa.com



SMC Corporation, has announced the release of the EMY2 electric guided slide table actuator. The EMY2 combines the smooth operation, flexibility, and high positioning accuracy of a stepper motor actuator with the quick setup, simple actuation, and low cost of its pneumatic equivalent.

The EMY2 features a user-friendly control box for manual operation, and can be actuated using just two PLC outputs like a solenoid valve--one for move left, another for move right, and both for move to center. It also provides four status outputs and five LEDs for at-a-glance visual indication. Magnetically triggered hall effect sensors can also be mounted along the length of the actuator for additional position verification.

Available in two base sizes, the EMY2 can handle payloads up to 70 lbs, with stroke lengths from 50 to 1,000 mm. Stroke stop blocks let you tailor the stroke length to suit the application. For added value, the slider & guide rail portion of the actuator can be separated from the motor & control box for maintenance or easier installation. The motor & control box can be positioned on the left or right side of the actuator, facing up or downward.

SMC Corporation manufactures high quality actuators and cylinders, airline and air preparation equipment, high-purity products, vacuum components, instrumentation, and a host of fittings and accessories applicable to the pneumatic automation industry. SMC has a total of 14 production facilities, 3 of which are in North America –Indiana, California, and Ontario, Canada. SMC’s global presence enables it to provide quality customer service in any part of the world.

For more information please visit www.smcusa.com.





PIAB Vacuum Products showcases its Adjustable Vacuum Palletizing (AVP) system. PIAB’s AVP is a flexible new palletizing solution for handling product in a variety of industries, including food, beverage, chemical, pharmaceutical, personal care and industrial.

PIAB’s AVP features a unique modular design that is easily expandable, in order to accommodate for dissimilarities in product size—without the need for additional end effectors. Additionally, PIAB’s AVP is simple to configure, resulting in a minimal set-up time and more available up-time on the machine.

“The growing trend toward mass customization in the packaging industry is changing the shapes and sizes of boxes and containers that come through production lines,� said John Holmes, Packaging Segment Manager of PIAB Vacuum Products. “PIAB’s AVP system provides the flexibility, quick changeover,energy efficiency and speed to palletize a variety of products in less time.�


PIAB’s AVP is manually adjustable on the x and y axis, so the positioning can be quickly changed, thus reducing downtime

PIAB



Norgren's new VP60 pneumatic proportional valve delivers high levels of functionality

Norgren, the motion and fluid control specialist, has introduced a new high performance pneumatic proportional control valve. Designated as the VP60 the device features new microprocessor driven position control and delivers high dynamic properties thus enabling short accelerations times. By utilizing a glandless spool and sleeve design the VP60 makes a real difference in applications that require very high operating figures, the VP60 typically delivers figures of >250 million operations at full stroke.

Zero point adjustment via a mini keypad provides an application specific method of adjustment for leakage, drift and offset and a multicolor LED indicates device status diagnosis. The VP60 is ideal for deployment within sectors such as mechanical engineering, automotive manufacturing, packaging, printing/paper processing, medical and food. Typical applications within these sectors include rotational speed control, velocity control, vacuum generation and torque regulations. In combination with a PLC the VP60 could by used for positioning applications.

Available in pressure ratings up to 174PSI the VP60 is suitable in its standard form for environments that require ATEX Zone 2 certified devices. Conforming to CE the VP60 benefits from IP65 protection and is free of lacquer affecting substances. Connection can be made via G1/4 and 1/4NPT ports and feature optimized linearity in conjunction with minimum hysteresis, failsafe bleeding and zero overlap mode. Suitable for environments that utilize filtered, un lubricated compressed air, further information on the Norgren range of proportional solutions can be found at www.norgren.com




New Bore Size Complements PHD's Series SxL/SxH Slide Offering

PHD has just released a new bore size for its Series SxL and SxH Cantilever Slides. Previously available in 8, 10, 14, 20, and 32 mm, Series SxL and SxH Slides are now also available in a bore size of 25 mm. These slides feature a compact design and provide high load capacities, making them ideal for a wide range of applications.

Series SxH Slides feature precision-machined high capacity TC fluoropolymer composite bearings and are available in long travel lengths of up to 8 inches. Series SxL Slides feature self-lubricating polymer bearings and are available in travel lengths of up to 3 inches. Both versions incorporate twin switch slots for flush installation of PHD's Series 6790 Switches eliminating the need for expensive collars, brackets, and target kits. Units are available in imperial and metric versions to accommodate applications in worldwide markets.

Additional standard features include:

� High capacity internal and external shock pads to reduce noise and end-of-travel
impact
� Low breakaway piston and rod seals
� Tapped and/or counterbored mounting holes in slide housing and tool plate with
optional dowel holes for easy unit mounting and attachment of tooling
� Ships next day from receipt of order

Like other PHD products, Series SxH and SxL Slides are offered with a wide range of options to fit specific automation design requirements. Optional travel adjustment on extend equips the unit with stop collars and external shock pads for high speed cycling applications and easy adjustment of the extended tool plate position. Units are also offered with corrosion resistant options to provide protection in corrosive environments.

For more information, send for a free catalog today or visit our web site at www.phdinc.com/salsah. For immediate assistance, call PHD, Inc. at (800) 624-8511.

PHD



New from Barrington . . . . Low-Profile Slides!

Barrington now offers two more low-profile table slides: the ES-1 and ES-2.

Low-profiles table slides are ideal for tight spaces and gantry applications. The smallest slide has a side profile less than 1 inch tall. Value, durability, and standard features highlight the ES line of low-profile table slides.

Barrington Automation � 780 E. Tek Dr. � Crystal Lake � IL � 60014
http://www.barringtonautomation.com





Famic Technologies Inc. announces the new version of Automation Studio, its leading software for schematic design and simulation of fluid power and electrical systems. Automation Studio offers powerful and user-friendly drawing functionalities, dynamic and realistic simulation, sizing tools, and multiple new productivity features helping companies to accelerate time-to-market.

Automation Studio's new enhancements help systems designers to accelerate the design process with new trade specific drawing tools. The improved color-coded and animated simulation (simulation of all kind of fluids, simulation of heat exchange coefficient and improved consideration of flow type) enables engineers to carry out sharpest analysis of design integrity. Maintenance and service personnel can perform fastest testing of "what if" scenarios and easily detect problems areas, and trainers can create a more flexible training environment at no extra cost.

Design is easy as users only have to drag and drop components from extensive libraries. The dynamic and realistic simulation capabilities allow engineers to quickly identify design imperfections and ultimately to optimize the whole design process. The software includes simulation models for servo and servo proportional valves, variable displacement pumps, proportional pressure regulators and flow controls. It is also possible to assign catalog information to any symbols and to document projects as Automation Studio automatically generates bill of material. Automation Studio's is more than a simple CAD and simulation software, its helps engineers, maintenance and service personnel, and trainers work more efficiently, and makes their companies more competitive in their markets.

For readers inquiry :
Famic Technologies Inc.
9999 Cavendish, Suite 350
Saint-Laurent, QC, Canada
H4M 2X5Tel.:
514-748-8050
Fax: 514 748-7169
www.automationstudio.com
sales@famictech.com





SMC Corporation has announced the release of the LC8 AC Servo Motor Controller. The LC8 is a servo amplifier / controller for the LJ, LG and LTF series actuators and provides high-level features at mid-level pricing.

Up to 7 LC8s can be slaved together for control from a single PLC, which can execute 117 steps that can command any or all of the actuators to move to a specific position, move a specific distance or apply a specific amount of torque. The position accuracy is �0.005 mm to �0.025 mm, depending on the feed screw lead of the actuator. There are also 5 palletizing steps that can use the same command from the PLC to move 2 axes sequentially through pallets of up to 10,000 rows by 10,000 columns. The simple method for configuring and running the palletizing features has been awarded a US patent.

The LC8 comes with easy to use human / machine interface software for configuring and testing the controllers. This HMI software includes features for 'teaching' positions by moving the actuators either manually or under power and all of the configuration data can be stored in files so that a setup for one machine can be easily duplicated on many others.

The LC8 is compact, 141 mm H x 75 mm W x 130 mm D, weighs less than 1 kg and is available for 100 - 115 VAC or 200 - 220 VAC power and either 50, 100 or 200 Watt motors.

SMC Corporation manufactures high quality electric actuators and controllers for industrial automation. SMC has a total of 14 production facilities, 3 of which are in North America - Indiana, California and Ontario, Canada. SMC's global presence enables it to provide quality customer service in any part of the world.


For more information please visit www.smcusa.com.





GSM � The New Gripper-Swivel Unit

SCHUNK Inc. introduces a new series of gripper-swivel units, GSM, which will set a new benchmark in the field of automated assembly. Many applications formerly built from individual components and adapters are now combined into the compact gripper-swivel unit GSM.

With its slim and innovative design the GSM will fit a wide range of application requirements, while saving time and space on any automated machine. The three base swivel unit sizes can be equipped with one of four different gripper types. The GSM offers the choice of 2-finger parallel grippers, 3-finger concentric
grippers, 2-finger angular grippers, and 180� angular grippers. With hydraulic shock absorbers to dampen the rotation, the GSM also has the capability of being fully adjustable from 0-180�. With the internal porting of the air supply to the gripper, the GSM will eliminate interfering contours from airlines and
sensors to the gripper.

The flexibility of the GSM unit is further enhanced by the variety of mounting
possibilities. Due to the slim design of the GSM, several units can be mounted
close to one another without interference. Compared to conventional gripper swivel
combinations the GSM incorporates a hose-free connection for air supply
and integrates mounting of magnetic sensors in the body for position feedback
on both the gripper and swivel units giving the most compact design on the
market. With a total of 92 different versions with strokes ranging from 4mm to
20mm and a grip force range of 28N (6.3 lbf) to 270N (61 lbf), the GSM will
be perfect for your next gripper-swivel application.

SCHUNK INC.
211 Kitty Hawk Drive
Morrisville, North Carolina 27560
Phone: 919.572.2705 or
800.772.4865
Fax: 919.572.2818
www.schunk-usa.com
info@schunk-usa.com





Guided Pneumatic Cylinder gives numerous advantages


Twin guide rods plus slide bearings or ball bearings provide stability
Rexroth GPC guided pneumatic cylinder
The Guided Pneumatic Cylinder (GPC) by Rexroth is equipped with two rigid guide rods supported by either slide bearings or ball bearings, which guarantees a high level of stability.

The main benefits provided by the guided cylinder are high force, precise movement, high side load capacity and anti-rotation combined in the same product. This means easier design and building of machines by reducing the need for external guides. Other features are soft end position resulting in low noise. The magnetic piston means easy sensing of position. Moreover, the GPC has numerous mounting possibilities. A unique advantage is the possibility to directly combine two GPC cylinders to a two-axis system without any adapter plate. The next smaller size GPC mounts directly on the front plate of the larger cylinder.

Typical applications are material handling systems, where high side-load capacity and precision motion are a must, and general application with side load or anti-rotation needs, such as stopping or clamping, where a standard cylinder is too weak. The GPC is also well suited as a carrier of grippers, suction cups and other fixtures and tooling.

The GPC cylinder is available in eight different diameters between 12 and 63 millimeters as well as stroke lengths of up to 200 millimeters. A magnetic piston is standard for easy sensing of cylinder position. Choose from standard or top loader models, and all versions are available with slide bearings or ball bearings.
Bosch Rexroth Corporation, a merger of Bosch Automation Technology and Rexroth, is a wholly owned subsidiary of Robert Bosch GmbH. In the year 2003, Bosch Rexroth AG achieved sales of $4.4 billion (3.7 billion Euros) with 25,700 employees.

Under the brand name of Rexroth, the company offers all relevant drive, control and motion technologies: from mechanics, hydraulics and pneumatics to electronics and associated services. Rexroth has 500,000 customers in over 80 countries and is an extensive supplier of components and systems for industrial and factory automation and mobile applications.

Rexroth



Anver announces new line of vacuum pumps.

A line of air-powered single-stage vacuum generators for use where vacuum is required on an intermittent basis or when a basic, low-cost, functional design is desired is available from ANVER Corp. of Hudson, Massachusetts.

ANVER JB Series Single-Stage Vacuum Generators are versatile air-powered vacuum pumps which have no internal moving parts and can achieve vacuum levels to 27� Hg. Featuring a straight-through internal design that won’t clog easily and can be reverse blown to clear if necessary, they can be controlled by a manual or automatic valve on the compressed air line.

Easy to mount, ANVER JB Series Single-Stage Vacuum Generators have black anodized aluminum bodies, brass internal nozzles, and operate on 50 micron filtered, non-lubricated 72.5 psi air. Five standard sizes from 0.76 to 1.34 O.D. are offered and options include mufflers, control valves, four types of vacuum switches, gauges, suspension assemblies, and vacuum cups.

Anver Corporation
36 Parmenter Rd.
Hudson, MA 01749
(800) 654-3500 FAX (978) 568-1570
e-mail: anver@anver.com

www.anver.com




Repairable Stainless Steel Cylinder Available in Eight Bore Sizes

Bimba Manufacturing is pleased to announce the availability of our new Repairable
Stainless Steel Cylinder. This new offering will be available in eight bore sizes (1-1/2�, 2�, 2-1/2�, 3-1/4�, 4�, 5�, 6�, and 8�) and is the result of the combined efforts of both Bimba Manufacturing Company and our subsidiary TRD Manufacturing Inc.

The Repairable Stainless (RS Series) was initially designed specifically for application in the food
industry. As such we have worked extensively with the USDA to insure that our product meets current
USDA and 3-A Sanitary Specifications. The round, smooth bodied design has proven ideal for wash
down environments as well as any other applications that require an all stainless steel design such as
medical, pharmaceutical, food packaging, chemical etc. Wide ranges of stainless steel mounting
accessories are also available.

When ordered with option “U� the new RS series is accepted for use in dairy plants that are approved
for the USDA Dairy Plant Survey Program. This option designation also complies with 3-A Sanitary
Standard Number 21-00. Additional information as well as formal documentation from the United States
Department of Agriculture is on file at Bimba.

For more information, contact W. Kokum, Bimba Manufacturing Company, P.O. Box 68, Monee,
Illinois 60449. Phone 708/534-8544, FAX 708/235-2014 Technical Assistance 800-44-BIMBA.




PHD's NEW RCC Rotary Actuator  Provides High Axial Thrust Loads

PHD announces the release of its NEW Series RCC Rotary Actuator, which offers standard 2 day rapid delivery. The Series RCC Rotary Actuator features an exceptionally low profile body design and provides high axial thrust loads. The unit's compact size easily accommodates applications within confined spaces.

The Series RCC Rotary Actuator is available in three bore sizes (8, 12, and 16 mm) with two standard rotations (90� and 180�). All units feature standard angle adjustment of �5� in each direction. Standard internal shock pads eliminate metal to metal contact, reducing noise and end-of-rotation impact forces. The Series RCC Rotary Actuator operates with zero backlash at the end of rotations for precise rotary positioning.

All units are pre-threaded with standard through mounting holes in the body to provide versatility and ease of mounting of the actuator. The rotary housing incorporates switch slots for convenient mounting of PHD's Series 6790 4 mm Reed and Solid State Switches.

The Series RCC Rotary Actuator is available with an optional hollow pinion to provide protection and routing of electrical cables and air lines. Other optional features available for the Series RCC Rotary Actuator include port flow control kits for accurate control of rotational speed, additional threaded mounting holes for versatile mounting options, rear ports, and more.

For more information on this product, send for a FREE catalog today. For immediate assistance, call PHD, Inc. at (800) 624-8511 or visit our web site at www.phdinc.com/rcc.

PHD, Inc., P.O. Box 9070, Fort Wayne, IN 46899
(260) 747-6151; FAX (260) 747-6754
www.phdinc.com
phdinfo@phdinc.com





PIAB Vacuum Products introduces new DURAFLEX oval suction cups as a solution for difficult applications. PIAB’s oval suction cups are ideal for a variety of industries including automotive, plastic injection molding, glass manufacturing, white goods, packaging, and electronics.

Made with DURAFLEX, a revolutionary polyurethane material that combines the soft elasticity of rubber with the exceptional wear-resistance of polyurethane, PIAB’s oval suction cups provide an outstanding resistance to wear for extended life span. Unlike conventional suction cups, which often cause micro-leakage, the unique DURAFLEX material allows PIAB’s oval cups to form a proper seal on difficult-to-grip objects, such as long or narrow tubes, pipes, bars and extrusions.

In addition to long and narrow objects, PIAB’s oval cups are designed to accommodate smaller items with oblong picking areas handled in high-speed applications, such as corrugated boxes. The cups feature high friction to ensure a better grip and leave no marks on handled parts. Additionally, built-in filters protect the vacuum system from dust and dirt.

PIAB


SCHUNK Inc. introduces a new series of sealed 2-finger parallel grippers, DPG-plus, designed for the automated handling of components under extreme environmental conditions. This new generation of sealed grippers from SCHUNK not only withstands these conditions without any problems, but sets new standards for moment capacities in the world of sealed grippers. For this type of application the well-known formula tightness = low moment capacity, no longer applies. Due to the serrated guidance and round sealings, high moments similar to those of the PGN-plus series, can be achieved.

The new DPG-plus is available in 7 different sizes ranging in moment capacity from 30Nm (22 lbf.ft) to 160Nm (118 lbf.ft) assuring a long service life. With each size, you have the option of 2 strokes and a spring for additional grip force or a safety device for both OD and ID gripping, giving you a total of 42 standard units to choose from. The DPG-plus achieves absolute tightness with an IP 67 Rating, making it a perfect fit for the loading and unloading of machining centers that are subject to coolant conditions and metal chips. The pneumatic actuation results from an oval piston, which transfers the actuation to the jaws through the proven wedge hook system, and thereby generates a considerably higher grip force than a round piston.

SCHUNK INC.
211 Kitty Hawk Drive
Morrisville, North Carolina 27560
Phone: 919.572.2705 or
800.772.4865
Fax: 919.572.2818
www.schunk-usa.com
info@schunk-usa.com





Norgren combines reliability and flexibility in its 97100 series Herion fluid control valve

Norgren, the motion and fluid control specialist, continues to set the standard in solenoid valve technology. Continuing this trend the Norgren Herion 97100 directional control air valve represents a cost effective solution for today's automated process industries. The 97100 series is compact in design and suitable for applications requiring high flow rates. Featuring a mechanical return spring and closed crossover spool/seal arrangement this assures functionality at low air supply pressure and allows exhaust port throttling for optimised speed control of an actuator or cylinder.

Available in 3/2, 5/2 and 5/3 variations the valve has been designed as a NAMUR direct mount directional solenoid valve. The valve is also available in an inline, directly piped version for non-NAMUR applications. This series also boasts an interchangeable solenoid system providing quick and easy adaptation to many international requirements. For more information on this valve series please visit www.norgren.com







New Miniature Filter/Regulator/Lubricator Line from Wilkerson

Wilkerson Operations has introduced its new complete line of 03 Series miniature air-line filters, regulators, and lubricators (FRLs).

The miniature 03 Series FRL products are for applications anywhere compressed-air treatment and preparation is needed to protect and maximize the efficiency of pneumatic equipment. Typical applications include conveyors, packaging machinery, automotive manufacturing, machine tools, medical and dental equipment, home compressors, and automated-assembly equipment.

The complete Wilkerson miniature 03 Series line includes:
� F03 Filters and M03 Coalescing Filters, with available multiple-bowl and drain options, keep particulate matter, oil vapor, and water from entering pneumatic components, which may plug small orifices or cause excessive wear and premature failure.
� R03 Regulators provide quick response and accurate pressure regulation.
� B03 Filter/Regulator units accurately regulate pressure and provide high moisture-removal efficiency in a space-saving package.
� L03 EconOmist Lubricators, with transparent lubricator sight dome for 360� visibility, provide proportional oil delivery over a wide range of airflows.
� D03 Two-Unit Combos (filter/regulator and lubricator) and C03 Three-Unit Combos (filter, regulator, and lubricator) provide for configuration flexibility.

Miniature FRLs are usually located at the point of use where piping is small and low airflow is required.

Wilkerson manufactures a complete line of compressed air treatment and control products to meet a wide variety of industrial, process, and consumer applications. Today, Wilkerson serves over 500 different industries throughout the world.

For more information regarding the miniature 03 Series FRL products, contact Wilkerson at 888-223-5126.





SMC Corporation, has announced the release of the MHF2 Low Profile Air Gripper. The MHF2 Gripper is in stock and available for immediate shipment from SMC’s distribution center in Indianapolis, IN.

The MHF2 Air Gripper uses a low profile design to save space and reduce bending moments. Because of its compact height, the gripper remains close to the manipulator to which it is attached, thus greatly reducing bending moments and thereby allowing the use of a lighter duty and lower cost manipulator. The height is approximately 1/3 that of conventional air grippers with equivalent gripping force. The gripper jaws are guided using precision ball bearing guides. A dual air piston design maintains high gripping force.

The MHF2 series grippers are designed for simple, repeatable installation and setup. Mounting holes are located on all sides of the gripper body and both side and axial ports are included to allow for flexible mounting and piping. Locating pin holes on both the body and jaws allow for repeatable positioning. The body also includes auto switch rails extruded into the body so you can utilize the vast range of position sensing auto switches available from SMC.

The MHF2 series includes 12 models featuring gripping forces ranging from 8-200N and strokes from 8-80mm. The operating ambient/fluid temperature range is -10 to 60 deg. C. Unit weights range from 65 grams for the smallest size, up to 1225 grams for the largest size. Maximum operation frequency is 120 cycles per minute. MHF2 Grippers are designed to meet or exceed a life of 10 million operating cycles when properly used within specifications.

SMC Corporation manufactures high quality actuators and cylinders, airline and air preparation equipment, high-purity products, instrumentation, and a host of fittings and accessories applicable to the industrial automation industry. SMC has 14 production facilities, three of which are in North America –California, Indiana, and Ontario, Canada. SMC’s global presence allows them to provide quality customer service in any part of the world.







Norgren introduces a high reliability, world class current-to-pressure converter.

Norgren, the motion and fluid control specialist, has introduced a new ultra reliable I/P converter to its Watson Smith range of solutions. Designated as the Type 140 the new I/P converter exceeds the requirements of the process control industry applications worldwide.

The Type 140 design has been based on an analysis of the key requirements and applications for this class of product in all major international markets. Delivering advantage both in terms of safety and performance the features include; fail to zero output pressure on signal failure; advanced electronic closed loop, giving extreme control precision; rugged, IP66 housing to meet the most demanding environmental conditions; vibration immunity and extensive operating temperature range makes the type 140 suitable to a variety of mounting positions and locations. The Type 140 has comprehensive hazardous area certification. Approvals include North American, Canadian and European ATEX certification, encompassing intrinsically safe, type N and flameproof variants. An additional User feature is the inclusion of a jack socket for on site monitoring and local calibration, thus ensuring maximum operational uptime.

The Type 140 has been designed with reliability in mind. Encapsulated modular electronics and a sub micron, field replaceable, pilot air filter give an order of magnitude, greatly exceeding its predecessors, in reliability improvement. Through Engineering Advantage, this addition to the Watson Smith range, gives the user a trouble free, fit and forget, current to pressure converter.

The unit is available in pressure ratings from 3 to 15psi and further information on the Norgren Watson Smith series can be found at www.watsonsmith.com





New Angular Grippers From Techno-Sommer Feature Fully Sealed Design and Adjustable Stroke

New Hyde Park, NY - A new series of grippers from Techno-Sommer, Inc. called the GG-Series features a fully sealed design and adjustable stroke. This family of grippers is fully sealed against dust, dirt, coolant, etc., allowing it to be used in machining and grinding environments. They are ideal for use in wet or dirty applications.

The GG-series also features up to 35� stroke per jaw to allow wide clearance for tooling fingers. The opening angle is adjustable via an adjustment screw on top of gripper to minimize open and close times. For added mounting flexibility, there are main air connections on the front of the unit as well as alternate air connections on the back and bottom. The NC models of these grippers are available with a spring failsafe device to keep the jaws closed in the event of a pressure loss so that parts are not dropped. There are 5 different sizes available in this gripper design with up to 2700N of gripping force.

Techno-Sommer
2101 Jericho Turnpike � New Hyde Park, NY 11040
TEL: 1-800-819-3366 � FAX: 516-358-2576
E-MAIL: grippersupport@techno-sommer.com




Parkers patented CVX Vacuum Generators

Parker’s patented CVX Vacuum Generators keeps your parts in place during emergency stop situations.
Combined with Integrated Air Economizing Functions and Plug and Play electronics, Parker’s unique Venturi
Vacuum System will reduce scrap rate, compressed air consumption and total installation cost.
Quality products with fast delivery, complete design analysis and system expertise, unparalleled application
and technical support and the broadest product line in the industry. With Parker, you can have it all.

For Vacuum Product Catalog 0802-2;
call: 877-201-7635,
email: pdnmktg.com
visit: www.convumusa.com





Chain Pallet Transfer System The Latest Innovation in Conveyance from Meto-Fer Automation

The Chain Pallet Transfer System is manufactured exclusively by Meto-Fer� Automation to provide a cost-effective solution for ultimate conveyance performance. This new system enables automation integrators to efficiently utilize pallet systems in manual, semi-automatic, or fully automated operations.

Built on a Solid Reputation
The development of the Chain Pallet Transfer System exemplifies the experience and dedication to excellence for which Meto-Fer has come to be known worldwide.

New and Improved Feature
The Chain Pallet Transfer System features improved stops with internal cushions.


A Reliable Performer!
As one of the most modular and advanced in its design, this system can be customized in length, width, pallet size, exits and switch points. Complete assembly is achieved through the use of a modest and practical assortment of standard components. Because it can be modified to fit all production needs, it is applicable in all industries. When considering quality, performance and its competitive pricing, this chain system is a truly outstanding value.

For more information please Click here



New Multi-station, Digital-to-Pneumatic Pressure Regulator with DeviceNetTM

AMHERST, NH, USA - ControlAir Inc. announces the introduction of the Type 5500 Multi-station , Digital-to-Pneumatic Pressure Regulator with DeviceNetTM. This unique multi-station manifold uses a common air supply to provide electronic proportional control of output pressure from any combination of 4, 6 or 8 station units through the use of a DeviceNetTM communication protocol.

An 8-bit digital signal describing the required output pressure for each electronic regulator is sent by DeviceNetTM to the Type 5500 node. The Type 5500 converts the digital signal into the appropriate 4-20mA signal that is sent to each corresponding I/P transducer which adjusts output pressure to the desired setting. Each manifold requires only one power cord and one fieldbus connection for up to 8 pressure outputs from one node. This simplified system greatly reduces set up time and wiring costs associated with other analog I/P Transducers. An optional pressure sensor feeds back a diagnostic signal by DeviceNetTM to the controller, which then monitors pressure output from each I/P. Individual pneumatic shutoff valves allow adding, changing or removing electronic pressure regulators without shutting off the main air supply. It also allows servicing one station while the others remain in operation.

In addition to delivering low hysteresis and excellent repeatability, the Type 5500 has RFI/EMI Effect protection. Output ranges include 3-15 psig, 3-27 psig, 6-30 psig, 2-60 psig and 3-120 psig. Maximum supply pressure is 150 psig. Temperature limits range from -20� F to 150� F. Built-in volume boosters provide flow capacity of up to 20 scfm. Mounting is available as wall or DIN Rail.

Applications include modulated control of valves, cylinders and actuators for machine tools, robotics, food and drug processing, semiconductor, textiles, medical diagnostic, material handling, test and assembly, pulp and paper, printing presses, tire production and material handling.

ControlAir Inc. manufactures precision pneumatic and electropneumatic controls. ControlAir's markets include process control, semiconductor, printing and converting presses, diagnostic and surgical medical equipment, robotics, quality control, automotive, analyzers, compressors, pumps and paint equipment. For more information, ControlAir's website, www.controlair.com, offers full product specifications with pdf files, product CAD drawing files, and company profile.

Contact:
John Walsh
ControlAir Inc.
8 Columbia Drive
Amherst, NH 03031 USA
Phone: 603-886-9400
Fax: 603-889-1844
E-mail: sales@controlair.com
Website: http://www.controlair.com





Pneumatic Part Present Sensing from Rexroth for Reliable Process Accuracy

The new Rexroth MS01 pneumatic part present sensing system offers precise measuring accuracy up to 0.01mm.

Automatic feeding and processing of work pieces quite often relies on exact positioning of the parts. Rexroth has developed a pneumatic modular system to monitor part presence that fulfills the strictest user demands in terms of technology, user-friendliness, and size.

The new compact system controls the presence, position, shape, and dimensions of test objects. The object is scanned using an air jet from a sensor nozzle. Simultaneous evaluation of the previously defined pressure sends an output to the user in the form of electrical signals. These signals are processed by the machine control system and displayed on the module.

The control system either releases the work piece for processing or stops the process. This contributes immensely to improving the quality of the test object, but it also avoids errors, thus saving time and money.

This function opens up a wide variety of application possibilities for almost any industry, such as the machine tool or automotive.

The block solution with the proven CD01 valve system can be integrated into any machine control system. Up to 6 test modules can be combined in the system solution. In addition to this, the technical design of the system makes it insensitive to primary pressure fluctuations. In addition to all these advantages, this system solution requires only minimum effort for assembly and installation.

Pneumatic part present sensing from Rexroth also stands out due to its extremely precise measuring accuracy of up to 0.01 mm. The MS01 is also equipped with an integrated air blowing function to prevent the measured results from being incorrectly influenced by contaminants such as shavings or coolant. Regular surface cleaning is guaranteed with this function. The air blowing function can be regulated to keep compressed air consumption to a minimum, making the MS01 much more efficient than most other pneumatic systems available. A combination of optical and mechanical system components also allows you to quickly and easily set the correct gap limit between the work piece and the sensor nozzle.


Reader Inquiries, Please Contact:
Angie Petrick
Account Coordinator - Lead Management Services
MarketSense
681 Commerce Street
Burr Ridge, IL 60527
Voice- 630-654-0170 ext. 115
Fax- 630-654-030
apetrick@market-sense.com




Norgren's 18S Allfluid pressure sensor is ideal for robust fluid applications

Littleton, Colorado, USA - Norgren, the motion and fluid control specialist, has introduced a range of Allfuid pressure sensors for deployment in industries that require the advantage of robust design in harsh operating environments. Designated as the Herion 18S Allfluid series the analog pressure sensor features excellent long-term stability combined with temperature compensation. For use in hydraulic applications the sensors are available in a wide measuring pressure range namely 0 to 11,600 PSI and are suitable for neutral and aggressive gases/fluid mediums.

Available in a 3 wire version with an output signal range of 0 to 10V and a 4 to 20mA 2 wire variant the pressure sensors feature an ambient and fluid temperature range of -4°F to 185°F combined with an IP 65 protection rating according to DIN 40050. Offering � NPT male fluid connection and simple electrical connection via an M12 x 1 connector further information on this range can be found at www.norgren.com.




Tustin, CA - SMC Corporation of America, the world’s largest manufacturer of pneumatic automation products has announced the release of series TU/M miniature tubing and fittings.

Since more and more automation and medical device applications are getting miniaturized, the demand for smaller sizes of tubing and fittings is on the rise. SMC responds to this demand with their new line of miniature tubing and fittings.

SMC now offers their polyurethane tubing in a new 2mm OD (1.2mm ID) size. Seven standard colors are available (black, blue, white, red, yellow, green and clear) in 20 meter rolls. With a minimum bending radius of only 4mm and an OD of only 2mm, this tubing can go places never before possible. Maximum operating pressure (at 68� F) is 116 psi. Suitable fluids include air and water.

Four new fitting configurations have been developed to coincide with this new tubing. Straight and elbow style barbed fittings are available with either M# or M5 threads and a unique collar that helps hold the tubing on the barb better. Barb to one-touch unions allow you to step down to the smaller tubing size where needed and plug in reducers allow direct connection of the 2mm tube to valve manifolds with built in one-touch fittings.

SMC Corporation manufactures high quality actuators and cylinders, airline and air preparation equipment, high-purity products, vacuum components, instrumentation, and a host of fittings and accessories applicable to the pneumatic automation industry. SMC has a total of 14 production facilities, 3 of which are in North America –Indiana, California, and Ontario, Canada. SMC’s global presence enables it to provide quality customer service in any part of the world.

For more information please visit www.smcusa.com




ORIGA SYSTEM PLUS � Clean Room Cylinder

Based on the HOERBIGER-ORIGA rodless cylinder, proven in world wide markets, HOERBIGER-ORIGA now offers the only rodless cylinder on the market with a certification from IPA Institute for the clean room specification according to DIN EN ISO 14644-1.
- Clean room classification
ISO Class 4 at vav = 0,14 m/s
ISO Class 5 at vav = 0,5 m/s
- suitable for smooth slow speed operation up to vmin = 0,005 m/s
- optional stroke lengths up to 1200 mm (longer strokes on request)
- Low maintenance
- Compact design with equal force and velocity in both directions
-� Aluminium piston with bearing rings to support high direct and cantilever loads
- Simple design employing the HOERBIGER-ORIGA concept

Advantages Certifying Function
The clean room cylinders of the ORIGA SYSTEM PLUS (OSP-P) combines the efficiency of the HOERBIGER-ORIGA slot seal system with vacuum protection against progressive wear and contamination from the sliding components. A partial vacuum drawn between inner and outer sealing bands prevents emission into the clean room.

For more information see our homepage www.hoerbiger-origa.com




Parker Hannifin Introduces a New Extension to the Moduflex Pneumatic Valve System


Parker Hannifin introduces a 25-Pin, D-Sub module to the Moduflex Pneumatic Valve System. This new V-Series module allows for the use of industry standard 25-Pin cables in IP40 applications while addressing up to 19 addresses.

The Parker Moduflex Valve System is based upon adaptability and flexibility. Users select from two standard valve sizes and assemble dual 3/2, 4/2, and 4/3 configurations in one island to meet their application requirements (10mm to 100 mm bore sizes.) The single tie-rod connection makes it easy to add or delete valves, change a valve's function, tubing size, or piloting in minutes.

The Parker Moduflex Valve System consists of two valve sizes - 0.32Cv and 0.80Cv. Both have a short 2.5 mm stroke for quick response time, a large 14 mm piston diameter for greater shift force even with dry contaminated air, and a lapped ceramic plate and slide arrangement for total sealing and long life.

Single stand-alone valves can be employed for remote applications, individually wired valves in small islands can be mounted close to actuators, and larger valves can utilize Parker's Valvetronic system of self-addressing integrated connectors. The Moduflex system is offered with DeviceNet, Profibus-DP, Interbus-S, ASI, and CANopen protocol.

A division of Parker Automation Group, Parker Pneumatics has its headquarters in Richland, Michigan and is a leading designer, manufacturer and marketer of quality pneumatic system solutions worldwide. Parker Hannifin is the only manufacturer to offer a choice of hydraulic, pneumatic, electromechanical and computer motion control solutions.

For more information regarding the Moduflex Pneumatic Valve System V Series Module, contact Parker Hannifin Corporation, Pneumatic Division. Phone 269-629-5000 or visit us online at www.parker.com/pneumatic




Norgren extends 18D fluid pressure switch series with new low temperature version

Littleton, Colorado, USA - Norgren, the motion and fluid control specialist, has extended is tried and tested series of 18D pressure switches with the introduction of a new low temperature version. Designated as the 18D LT the pressure switch is ideal for indoor and outdoor fluid applications that require a wide operating temperature range. The new devices are suitable for pneumatic applications with operating pressures from 14 PSI to 232 PSI.

Suitable for neutral, gaseous and liquid fluids that are non combustible the units are ideal for mobile applications like trains, trams and other rail vehicles. The devices are also suited for commercial vehicles and mobile construction machinery. Various fluid connections are available (G, NPT, flange) and features micro switches approved by UL and CSA. Further information on the 18D LT can be found at www.norgren.com




Rexroth ZSC Pneumatic Mini Slides Use Ball Rail System for Low Profile

The new ZSC model complements the extensive Rexroth range of small handling products. Equipped with a guided twin rod pneumatic cylinder and ball rail system, the ZSC is specially designed for vertical applications.

The Rexroth ZSC series features a ball rail system between twin piston rods resulting in a very flat, low-mount guide to save space. The design allows it to have a 35% lower profile and 35% less weight than conventional double rod slide units. The symmetric design with high parallelism between the rail system and the two piston rods provides highly controlled performance.

The versatile, lightweight ZSC slide unit with its precision movement makes the ZSC ideal for 3-axes applications. The double-acting slide has multiple mount options on the front and top plate of the cylinder, thus simplifying machine design. With the addition of grippers and vacuum cups it is suitable for small handling applications of all types. Being prepared for sensors, shock absorbers and stops for stroke adjustment on both ends makes the slide even more flexible.

ZSC slides are available in bore sizes from 6 to 25 mm and strokes up to 100 mm.

Bosch Rexroth Corporation, a merger of Bosch Automation Technology and Rexroth, is a wholly owned subsidiary of Robert Bosch GmbH. In the year 2003, Bosch Rexroth AG achieved sales of $4.4 billion (3.7 billion Euros) with 25,700 employees.

Under the brand name of Rexroth, the company offers all relevant drive, control and motion technologies: from mechanics, hydraulics and pneumatics to electronics and associated services. Rexroth has 500,000 customers in over 80 countries and is an extensive supplier of components and systems for industrial and factory automation and mobile applications.


Reader Inquiries Please Contact:
Angie Petrick
Account Coordinator - Lead Management Services
MarketSense
681 Commerce Street
Burr Ridge, IL 60527
Voice- 630-654-0170 ext. 115
Fax- 630-654-030
apetrick@market-sense.com




New from Barrington . . . Tuff Grippers!

Barrington's Tuff Series has been expanded to include over 20 new Tuff BT Grippers.

Value, strength, and durability highlight our Tuff Series products. We have expanded our line to include our new BT Grippers. Precision engineering and manufacturing make BT Grippers a superior choice for your automation needs.

BT Gripper Features

Our new square body design provides flat surfaces with dowel pin & tapped holes for mounting accuracy. It also offers a larger bore for almost double the grip force for a comparable sized round gripper. A roller burnished cylinder bore provides smoothness of stroke for long life.

More Features

BT Grippers come in four styles: parallel, true parallel, radial, and wide open radial for maximum design capabilities.
The hardcoat anodized body, hardened pins, linkages, and steel clevis link combine to make BT grippers tough, rugged, and long lasting. Multiple sizes and jaw types add even more to your design flexibility. Visit our website to see additional features.

Our innovative new grippers provide value, flexibility, and precision to give you the best made grippers available in the industrial automation market. Come see for yourself. Visit us on the web or give us a call.

Barrington Automation
voice: 815-477-1400
web: http://www.barringtonautomation.com




The Newly Released, Low Cost, High Flow Electronic Pressure Regulator

Kelly Pneumatics, Inc. offers the first ready to use, turnkey design for compact electro-pneumatic regulation.
This compact unit is ideal for end users that want an easy to use electronic regulator that only requires a
standard 110 VAC outlet. Also offered is an OEM version, which requires either a 12 or 24 volt power supply.
The Electronic Pressure Regulator, with (PID) control circuitry, uses a reduced cost, single-valve design,
available at as low as $190 per unit in large quantities. By utilizing either an externally supplied
dynamic/static input signal or an onboard adjustable set-point value, the Electronic Regulator provides
exceptional closed-loop, proportional, output pressure control characteristics. It offers significant
improvements over the traditional dual on/off valve electronic regulators. The design gives a smooth and
accurate signal, as opposed to dual on/off valve designs that cause substantial shock waves in the pressure
signal.

Kelly Pneumatics, Inc. is dedicated to creating, designing, and manufacturing unique, compact Pneumatic Control
Devices driven by new concepts and technology. Our products control force, direction, pressure, and flow for a
wide range of mediums. We offer devices that are compact and have few moving parts, ensuring reliability and
consistency. We guarantee the highest quality products at an affordable price. Visit our website at
www.KPIwebsite.com to find out more.

Kelly Pneumatics, Inc.
711 West 17th St. Suite F-8
Costa Mesa, CA 92627
949-646-6197
www.KPIwebsite.com




SMC Introduces the ZQ to its Family of Compact Vacuum Generator Modules

SMC Corporation, the world’s largest manufacturer of pneumatic automation products has announced the release of the ZQ Compact Vacuum Generator & Control Module. Each full-function vacuum module is only 10mm wide, yet comes with a built-in vacuum venturi, 30m suction filter with replaceable element, long-life solenoid valves, and a digital vacuum switch. ZQ manifolds also come standard with One-touch TM tube fittings for easy air supply and pilot exhaust connections.

The ZQ series modules are 1/3 smaller than SMC’s existing ZX series vacuum modules, yet enjoy the same high performance. The venturi generates up to �25"Hg and suction flow rates of up to 0.7cfm. At less than 4 ounces each, the ZQ is well suited for mounting on moving components. Up to eight ZQ modules can be manifolded for a clean and compact installation.

SMC Corporation manufactures high quality actuators and cylinders, airline and air preparation equipment, high-purity products, vacuum components, instrumentation, and a host of fittings and accessories applicable to the pneumatic automation industry. SMC has a total of 14 production facilities, 3 of which are in North America –Indiana, California, and Ontario, Canada. SMC’s global presence enables it to provide quality customer service in any part of the world.

For more information please visit www.smcusa.com.




Bal Seal Cover Seals - Innovation in Precise Fluid Metering for Critical Applications

Foothill Ranch, Ca
Overview: Spring-energized Cover Seals, a new product from Bal Seal Engineering, have no metal contact with fluids, providing maximum chemical compatibility for medical, analytical, laboratory, and food applications. In addition, they feature snap-on locking for ease of assembly, and to permanently attach the seal onto the piston.

The Bal Cover Seal uses patented canted-coil spring technology that provides near constant force and loading to energize the seal as it wears. Cover seals are made from polytetrafluoroethylene (PTFE) or ultra-high molecular weight polyethylene (UHMWPE)-blended materials.

Additional materials are available for specific applications and customer needs.

Notebook: Bal Cover Seals are self-adjusting for wear and misalignment, and offer better sealing and longer life for vacuum applications. Small size cover seals, 0.062-inch diameter and larger, can be used in pressure ranging from vacuum to 60 psi (4 kg/cm2.)

Applications include fluid metering and dispensing devices such as syringes, infusion pumps, pipettes, and other automated laboratory utensils, as well as food processing equipment.

Since many factors, such as operating conditions, affect the performance of a seal, a consultation with Bal Seal Technical Sales at 949-460-2100 is recommended to discuss your application.


Bal Seal Engineering Co.2004, 19650 Pauling, Foothill Ranch Ca. 92610 www.balseal.com
PATENTS: The products described herein include those which are the subject of pending and issued patents, both foreign and domestic.





Legris launches a new concept of ring for DIN 2353 / ISO 8434-1 couplings - the DiNova ring for long lasting sealing

In accordance with Legris strategy of extensive research and continued product innovation, Legris has developed a new concept of cutting ring for DIN 2353 couplers: the DiNova ring.

Long lasting sealing
Clean equipment and safe working conditions are the essence of the DiNova ring's design. Legris designed and tested the product in order to optimize its leak-free performance and performance over time.

The DiNova ring ensures long lasting sealing by preventing damage to the seal, contamination of sealing areas and risk of contaminating hydraulic circuits.

Reliable and easy assembly
The assembly of a cutting ring determines the quality of connection. Proper assembly guarantees safe tube connection and optimum sealing.

To ensure proper assembly, the DiNova ring includes a mechanical stop that clearly indicates the crimp position which avoids the risk of over and under-torquing.
� In addition, all Legris coupling components are designed with a lubricant coating to allow a low tightening torque and to save time by not needing to apply more lubricant.

With the DiNova ring, assembly is precise, reliable and easy.

Safe connection
This new ring is designed with three bites which reinforces the safety of connection.

Optimal tube connection is ensured by:
� Reduction in bite penetration and tube distortion due to the three bite design
� Increased area of interface with the tube while tightening for excellent resistance to vibrations

The DiNova ring guarantees optimal and safe connection of the tube.

Universal use
The DiNova ring design and performance meet all requirements of hydraulic installations.
� The surface treatment guarantees resistance to saline mist for over 400 hours while chromium 6 free materials meet the requirements of future European directives, similar to those already in force within the automotive industry.
� PTFE seals are resistant to virtually all aggressive fluids and to a wide range of temperatures. Therefore, one single standard product meets all requirements for hydraulic installations.

DiNova cutting ring couplings are suitable for the various assembly methods used on the market: manual pre-crimping, machine pre-crimping and direct assembly.

Legris, Inc.
Tel: (480) 325-3518



Corrugated Sheet Handling System Vacuum Cups Eliminate Mechanical Grabs

A full line of vacuum suction cups and suspensions, that retain their position for handling corrugated sheet and loads with minimal gripping surfaces, is available from ANVER Corporation of Hudson, Massachusetts.

ANVER OC Series Oval Vacuum Suction Cups feature a larger gripping surface than round cups for use with long narrow lifting surfaces and are available molded from non-marring silicone or nitrile. Eliminating mechanical grabs that can scratch and damage loads, these oval cups can be supplied with a wide range of non-rotating, level-compensating suspensions and brackets.

Allowing corrugated sheet metal and plastic fabrications to be lifted from the top, with only rubber touching the load, ANVER OC Series Oval Vacuum Suction Cups are offered in sizes from 0.039� to 3.94� (1 to 100 mm) L to 1.38� (35 mm) W and various depths; with snap-on fittings and brackets. Suspensions come in 10 sizes from 1.14� (29 mm) H to 6.61� (168) L with 0.20� to 2.80� (5 to 71 mm) travel.

ANVER OC Series Oval Vacuum Suction Cups, snap-on fittings, brackets, and suspensions are priced according to size and quantity. Literature and samples are available upon request.

Anver Corporation
36 Parmenter Rd.
Hudson, MA 01749
(800) 654-3500 FAX (978) 568-1570
e-mail: anver@anver.com

www.anver.com



HOFFMAN INTRODUCES AEGIS� ENCLOSURES

IEC-style enclosures provide versatile wall-mount solution


Hoffman introduces AEGIS� Enclosures, a new line of IEC-style wall-mount enclosures exclusively available in Canada and Latin America. Aegis wall-mounts deliver a versatile, true metric solution and global styling for a wide variety of environments including OEMs, automotive, packaging and material handling. The Aegis line includes 67 small- to medium- sized models in three different configurations - hinged door wall-mount, hinged door wall-mount with gland plate, and screw cover wall-mount - each with a galvanized subpanel. Accessories are also available.

"With the introduction of Aegis, Hoffman has expanded our global wall-mount offering to meet the varied requirements of our customers," said Ian MacDonald, Hoffman Director of Sales for Canada and Mexico. "This product is ideal for those seeking a versatile IEC-style wall-mount product, and with more than sixty models to choose from, the Aegis line offers reliable protection for sensitive electrical components."

Constructed of mild steel and featuring a RAL 7032 finish and Hoffman's durable foam-in-place gasket, Aegis is rated IP65, UL/CSA and cUL Type 4 and 12. The included galvanized subpanel makes Aegis Enclosures easy to order and ready to use without additional parts. Some larger hinged door models feature gland plates, which reduce assembly cycle time by aiding in the fabrication of cable entry openings. Other models feature quarter-turn latching, designed to provide ease of access with a reliable locking mechanism. Sizes range from 150mm x 150mm x 80mm to 1200mm x 800mm x 400mm.

The Aegis line is available only in Canada and Latin America through authorized Hoffman distributors. To learn more about the new Hoffman Aegis Wall-mount Enclosures, go to www.hoffmanonline.com or call Hoffman at 1-800-355-3560 to locate a Hoffman distributor.

Hoffman, headquartered in Anoka, Minn., is a leading manufacturer of enclosures and accessories to protect mission critical electronic components in the data communications, government, industrial, and commercial markets. Additional information can be found at www.hoffmanonline.com.




ASCO EXPANDS 8290 SERIES PRODUCT LINE WITH THREE NEW OFFERINGS

ASCO expands its 8290 Angle Body Piston Valves product line to incorporate the Miniature 32mm Operator, Proportional Valve and HS Linear Position Indicator.

The 32mm Operator angle body valve is the smallest construction of this type, and covers 3/8", �" and �" pipe sizes. It provides excellent flow and pressure capabilities in an extremely small package.

The 8290 Proportional Valve incorporates compact positioner technology to provide you with proportional control of fluids. Available for NC entry under disc, 50mm through 125mm operators.

The HS2, 3 and 4 Linear Position Indicators can be supplied with two mechanical or Viper switches and mounts on top of the 8290 valve operator in place of the standard visual indicator. These indicators can be used with the 50mm NC and 63mm thru 125mm NO & NC valves. A wiring box with conduit connections is provided. HS2 and HS3 indicators are suitable for hazardous locations while the HS4 indicator is suitable for non-hazardous locations. Optional ASi and DeviceNet communications are available.

For information on features, specifications and pricing contact ASCO Valve Canada at (519) 758-2700, fax (519) 758-5540, e-mail ascomail @asco.ca or visit our website at www.ascovalve.ca.




Norgren underlines technology expertise with two new fluid power pressure switches

Norgren, the motion and fluid control specialist, has expanded its tried and tested range of pressure switches to include two new models. Designated as the 33E and the 33L the new devices have been developed to offer the maximum advantage in a wide variety of industrial applications that require pressure monitoring or pressure control.

Offering a vacuum and relative pressure rating of -0.5 to 8700 PSI the new 33L features a three colour LED display that is highly visible from a distance of 19ft. This ensures that the operator can easily detect critical conditions from long distances thus delivering advantage through maintained machine uptime The 33L features a self-diagnosis function to detect system errors thus allowing a higher degree of plant security. The electronic lock feature prevents unauthorized personnel from changing the set up and the keypad with three user friendly buttons delivers advantage through reduced set up times and easy programming. Featuring two transistor (or binary) output signals the 33L provides a switching output and a warning output that can also be programmed as an additional switching output thus delivering advantage through flexible user features.

The 33E is compact and robust in design thus delivering benefits to applications that suffer from space limitations and harsh operating environments. Representing an economical solution the 33E features a relative pressure range from 0 to 400 bar and delivers user versatility through the easy programming of switching points and the option of either thread or flange connections The 33E features one transistor (or binary) output signal and also has an electronic lock.

Both series are suitable for use with gaseous, liquid, aggressive and neutral fluids. The new pressure switch is extremely lightweight and offers � 1,5% FS accuracy. With a minimum switching life of 50 million cycles the switching point and the reset points are adjustable between 0 to 100% of FS. The devices are shock proof to 25g, xyz, according to DIN EN 60068-2-27 and vibration proof to 10g, 5 to 500Hz, in line with DIN EN 60068-2-6.

Being free of lacquer impairing substances both devices features IP67 protection in accordance with DIN 40050 and are suitable for an ambient temperature of -4°F to +176°F. With a switching time of less than 10ms (33L) and 3ms (33E) and weighing only 0.13 pounds further information on the range can be found at www.norgren.com





NEW ANGULAR GRIPPER IS ULTRA THIN

MORRISVILLE, NC - SCHUNK Inc. has introduced a new angular gripper series SWG - specifically designed for small parts applications where space is a premium. Small parts handling, from packaging to mold tending demands tighter and tighter dimensions. The SWGs stackable design answers these demands not only in sizing, but in flexibility as well.

The new gripper is available in 6 different sizes ranging from 8mm to 25mm assuring proper selection. With grip force from 0.06Nm (0.5 lbf.in) to 2.8Nm (25.0 lbf.in) and an opening angle of 15 degrees, the grippers are not only small they are powerful. The design is simple with as few parts as possible keeping production costs low and reliability high.

To further flexibility, the new economic ultra thin gripper comes standard with sensor groves for monitoring both open and closed and an integrated spring adding grip force to the closed position. Whether used in a single configuration or stacked in a bank, the new SWG gripper is the cost-effective solution for small part handling

For more information about the new SWG or the complete line of SCHUNK Automation Products contact SCHUNK INC.; 211 Kitty Hawk Drive, Morrisville, North Carolina 27560; Phone: 919-572-2705, 1-800-772-4865; FAX: 919-572-2818, or at www.schunk-usa.com.





Enfield Technologies Introduces High-Speed, Advanced,
Servo-Pneumatic Control System


Trumbull, CT Enfield Technologies is proud to announce the introduction of our LS high-speed, advanced servo-pneumatic control system that helps automation designers control position, pressure, force, flow or velocity in either open- or closed-loop applications. The LS System is
compromised of a dedicated device controller and a 5-ported, 3-position, closed-center directional valve for a unique yet simple and easy-to-use package.

The systems' multiple feedback design gives the designer more control over their applications. The
device controller requires a minimum � 12Vdc at 25 Watts or 1.0 Amp power source, and
accepts a 4-20 mA, 0-10 Vdc or �10Vdc command signal input from a variety of sources
including PLCs and computers. Its convergent controller circuitry provides real-time command
and feedback signal monitoring with a <100 ?second response time. It has active valve current
feedback, which monitors the linear force motor's position and immediately corrects external
disturbances at the valve before the system sees them. It is rated for operating temperatures from
�13OF to +187OF (-25OC to +85OC).

Optional sensor signal conditioners are available. The sensor signal conditioner provides
amplification and linearization for either two individual or one differential low voltage level
pressure or force sensors. For example, with differential pressure measurement an additional
feedback path can be provided for those applications requiring more stability under varying load
conditions. The command signal ramp conditioner modifies the characteristics of the command
signal by changing the up and down slopes of the command signal for gradually opening and
closing of the servo-valve. This allows the system to be tuned to avoid overshoot, and it is ideal
for helping conserve energy (electricity and compressed air) by matching the servo-pneumatic
control system to the mechanical system dynamics.

The servo-pneumatic valve uses a directly coupled linear force motor and lapped-spool-and-
sleeve construction for fast, smooth, quiet, stiction-free operation. This patented design provides
infinitely variable and truly linear proportionality with almost zero hysteresis. The valve's
response time from closed-center to fully open in either direction is 2.5 milliseconds, and it
consumes less than 1 Amp to complete this operation. The valve is available in three sizes 10-
32 UNF, 1/8" NPT and 1/4" NPT with a flow capacity up to 46 SCFM (985 Nl/m). The valves are
capable of controlling pneumatic actuators up to 5" (125mm) bore. The LS System is rated for
use with clean, dry, non-lubricated air or inert gases up from 28" Hg vacuum to 150 PSI (10bar),
and ambient temperatures from �10OF to +115OF (-23OC to +46OC). The valve receives it
command signal through a 3-pin pico M8 female, 24AWG cable.

While the system is designed for proportional pneumatic control it can be used in speed
applications with a total cycle time of 5ms for a complete open and close of one port. That's 4 to
7 times faster then the typical solenoid operated valve. Its trapezoidal command curve eliminates
the end of stroke shock typically associated with high-speed � bang-bang � applications.

The LS System is being used in a wide variety of applications and is well suited for industrial
automation, product testing and animation.

For more information, visit our website at www.enfieldtech.com or contact Ed Howe
(e.howe@enfieldtech.com) or Vince McCarroll (vince.mccarroll@enfieldtech.com), Enfield
Technologies, 41 Monroe Turnpike, Trumbull, CT 06611. Phone: +1 203 459 0700 or +1 800
504 3334, Fax: +1 203 459 2762




CLIPPARD RELEASES NEW MINIMATIC� PUSH-QUICK FITTINGS

Clippard Instrument Laboratory, Inc. announces the introduction of the Minimatic� Push-Quick Fitting line, offering easy tube insertion for quick assembly of pneumatic circuits.

Push-Quick fittings provide a simple method of connecting pneumatic components to each other while accepting both flexible hose and stiff tubing. Available in 5/32", 6 mm, 1/4", and 3/8" O.D. tubing, the Push-Quick fittings allow full flow through the I.D. with no small orifice required as in barb fittings.

The Minimatic Push-Quick Fittings are available in many configurations with pre-applied sealant on the pipe threads.

For more information on Clippard's line of Minimatic Push-Quick Fittings, contact your local Clippard distributor or contact us today:


Clippard Instrument Laboratory, Inc.
7390 Colerain Avenue
Cincinnati, OH 45239
513-521-4261
www.clippard.com


The inventor of the Aluminium Machine Building Kit systems now introduce the NEW RS Building Kit System

All components made of stainless steel � a new material quality for item products
Now, sawing, drilling, bolting � all kinds of machining can be carried out without recourse to specialist skills.
High-quality, durable constructions for business environments & public areas.

What is the RS Building Kit System?

Technically speaking:
"RS System" is a German abbreviation of Tubular Bolted System: a completely new fastening technique used to join Tubes without welding.
The basic structure of the RS System is, in essence, the same as the MB Building Kit System: the Basic Elements are Tubes and Fasteners, to which are added fastening elements, floor components and many other system components.
All components are made of stainless steel (V2 A), i.e. they are also suitable for applications in damp environments and outdoors. Because of the way the tubes are bolted, the joints are not sealed constructions.
All components are joined electrically conducting

From the point of view of product marketing:
The RS Building Kit System opens up new fields of application not previously covered by the MB Building Kit System:
corrosion resistant production equipment and workplaces clean room equipment, electrostatic protected areas (EPA)
fixtures and fittings in public areas, offices, surgeries etc. An opportunity to address and win over new target groups
A chance to transfer the success of the modular Building Kit System and our experience in this field to other fields of business

For more information call > 888-945-4500 *item North America * 925 Glaser Parkway * Akron, OH 44306 *
Phone 330-945-4500 * Fax 330-945-6440 www.itemAmeria.com * itemSales@itemAmerica.com





Problem Solving Solenoid Valves

Valve specialist Alpha Controls have launched a new series of High Pressure
Solenoid Valves operational up to 70 bar. Manufactured with brass or stainless steel bodies and sealing elements in NBR, EPDM, Viton and silicone, the units are compatible with the majority of industrial gasses and liquids.
Developed from the G Series solenoid valve program, the high-pressure units are available in 2/2 normally-closed configuration with a variety of operational voltage options-including explosion protected and intrinsically- safe versions.
Port connections range from G1/4 to G1 and optional NPT thread.

More Information?

Contact
Alpha Controls Ltd
Tel: ++ 44 (0)1942 525 833
Fax: ++ 44 (0) 01942 523 413
technical@alphacontrols.co.uik
WWW.ALPHACONTROLS.CO.UK





One-to-One Direct Drive Compressors for maximum efficiency!

Kaeser Compressors Inc. announces our newest direct drive series rotary screw compressors.
The ASD Series compressors are 25-40 hp units available in flows from 72-193 cfm and pressures to 217 psig. They are designed for efficiency, reliability, and minimal maintenance.
These state-of-the-art units feature our optimized Sigma Profile airend, patent-pending Sigma Control system and the latest one-to-one direct drive technology. The ASD units are true direct drive compressors with an oversized airend connected directly to the motor via a maintenance
free coupling for maximum efficiency. Kaeser has developed a unique cooling air flow design that significantly reduces noise levels and provides superior cooling. Plus, all units are
fitted with a re-designed, high-efficiency separator system for extremely low fluid carry over �
perfect for all of your instrument and process air needs.
All units are also available with optional variable frequency drive and integral dryer.
For more information, please call 800-777-7873 or visit us at www.kaeser.com.

Contact: Angela Kelly
Tel: (804) 550-5655
Fax: (804) 550-5656
www.kaeser.com







Pneumatic Vacuum Innovations introduces the TS Series Vacuum Generators

The TS is a three stage vacuum generator that comes in a small classically styled package. Pneumatic Vacuum Innovations (PVI) was able to significantly reduce the size required for triple stage generation through an innovative method of harnessing the vena contracta phenomenon. This new small package packs a lot of punch. It is 130 mm long and weighs only 340 grams but still provides all the impressive flow characteristics expected from a triple stage generator. The exhaust is routed through internal sound damping chambers thus eliminating the need for a protrusive muffler. Since the exhaust does not pass through any filter media, it is very clog resistant. You can get all this without the traditional bulky body styles and the associated weight.

Pneumatic Vacuum Innovations
407 W. Imperial Hwy. Suite 317H, Brea, CA 92821
Tel :: 888-281-4784 or 714-392-4784
Fax ::714-256-1003
Email :: engineering@pneumatic-vacuum.com
http://www.pneumatic-vacuum.com


GUARDAIR INTRODUCES NEXT GENERATION SAFETY AIR GUN SERIES

Guardair Corporation has launched a new series of Ultra� Safety Air Guns. This new series of extension air guns offers ultimate comfort, extreme power and enhanced ergonomics. The simple features, such as insulated grip, patented storage hook, solid cast metal construction, and larger inlet for air flow make the new Ultra� Series a superior product line. User preference dictates a choice of handle, trigger, extension length and nozzle type.

For over 50 years Guardair has been the leading manufacturer of safety air guns, pneumatic vacuums, and syphon spray guns - all of which are proudly MADE IN USA and OSHA Compliant! Guardair sells its product through a nationwide network of 1000 industrial distributors. For more information, technical specs, or where to buy the Guardair Ultra� Series, visit www.guardaircorp.com/ultra, or call 800-482-7324.




PIAB P3010 VACUUM PUMP FEATURES PATENTED NEW COAXT TECHNOLOGY

Compressed Air-Driven Vacuum Pump With Push-in Function Modules Provides Essential Flexibility

Hingham, MA, -PIAB Vacuum Products, a leading manufacturer of industrial vacuum products and components, offers the P3010, a multi-stage ejector vacuum pump featuring PIAB's patented COAXT technology. The P3010 is ideal for a variety of packaging, electronics and assembly applications.

The P3010 features PIAB's patented COAX technology, an ejector
technology based on a multi-stage concept for creating vacuum with
compressed air. COAX integrates the internal components of a multi-stage
vacuum pump into a vacuum cartridge. The result is a smaller, more
efficient, more reliable and highly flexible technology that allows
users to design a modular system.

The core of the P3010 system is a compressed air-driven vacuum pump with
push-in function modules for added flexibility. The pump module attaches
to a mounting rail that can handle up to four pumps, without tools. The
P3010 includes a variety of easy-to-attach accessories, including
connector modules for either three or six possible vacuum connections,
vacuum switches, and quick-release modules.

The pumps are designed to be easy to maintain and simple to install.
They are 0.65" wide and weigh about 3 ounces. They can create a vacuum
pressure as low as 27 -inHg at 45-psi inlet pressure. The pump has no
moving parts, keeping the noise level down to 66 d(B)A. There is no
need for lubrication and no risk of static build-up or sparks.

About PIAB
PIAB Vacuum Products is a leader in developing innovative vacuum
technology for use in automated material handling and factory automation
processes. PIAB provides innovative solutions designed to help improve
productivity and efficiency in manufacturing processes around the world.


For more information about PIAB's complete line of vacuum products,
contact, PIAB USA, Inc., 65 Sharp Street, Hingham, MA 02043, or call
1-800-321-7422; visit www.piab.com.




Innovation combined with flexibility describes Norgren's new VS18/VS26 pneumatic valve range


Littleton, Colorado, USA - In order to further enhance and strengthen its range of automation solutions, Norgren, the motion and fluid control specialist, is launching a new range of plug in sub base valves. With flexibility and configurability at the heart of the design, the new innovative VS series delivers competitive advantage to OEMs who are looking to make specification decisions quickly and effectively, thus helping to reduce the all-important time to market. Recognizing development time can be costly, Norgren has designed the VS series to offer engineering advantage through the wealth of features including high flow, long life and I/O capabilities.

The new VS series fulfils the requirements of a variety of markets such as packaging, paper and printing, materials handling, machine tools and the automotive industry. Designed and manufactured at Norgren's Swiss facility, the system utilizes proven valve technology to deliver long life and exceptional flow rates through two different spool technologies. The glandless spool and sleeve valve features high operational figures of 200 million cycles, whilst the soft seal spool valve delivers exceptionally high flow rates. This gives the customer the flexibility to select the appropriate spool for each application without the need to install a second valve system.

The VS series is also focused on delivering engineering advantage through its endurance and reliability figures. This focus translates to minimal maintenance for the machine user in the field and, if valves do need replacing, the system allows the user to make a changeover quickly and effectively with minimal interruption.

When it comes to fieldbus options the VS series has been developed to accommodate most of the industry-recognized protocols such as Profibus-DP, DeviceNet, CANopen, Interbus-S, AS-interface and AB RIO. The sub base of the system integrates the required electronics thus delivering advantage because the valve island size is the same for fieldbus and multipole.

Available in 18mm or 26mm widths, the VS series features 3 different port options (ISOG, NPTF and built-in push-in-fittings) and features a valve interface according to ISO 15407-2. The VS series has been designed to be extremely robust and durable and is manufactured from the highest quality materials to handle harsh operating environments. Accommodating two-valve size ranges with flow rates from 550 to 650 l/min (18mm) and 1000 to 1350 l/min (26mm), the VS series features a wide variety of sandwich plate accessories such as pressure regulators, flow controls, single valve shut off plates and intermediate supply and exhaust modules. With IP65, NEMA 4, CE, ATEX and UL 429 approvals and two supply voltages (24V DC and 115V AC), the VS series is suitable for all markets.

Utilizing the Norgren online valve island configurator, the machine builder simply defines a set of parameters such as number of valves needed and flow rate to satisfy individual specification requirements. Available in any combination from one to 16 valves OEMs can configure a solution to match individual specifications and if the system needs to evolve, once installed, the VS system can be configured in the field to match the changes. This flexibility delivers advantages to OEMs through minimum machine downtime and reduced modification times.

Further information on this new range can be found at www.norgren.com.





TUNDRA-AIR The Ultimate Air Hose
New Kuri Tec� Tundra-Air� Low Temperature PVC Air & Water Hose. The hose that's so tough it outperforms other general purpose PVC and rubber hoses in cold weather air tool applications. Easily recoils after use.
Its extreme flexibility is ideal for in-plant applications requiring easy handling in tight workspaces. Available in 1/4'', 3/8'', and 1/2'' ID sizes in bulk and assemblies.

Kuriyama of America, Inc.
(847) 228-0300 Fax (800) 800-0320
www.kuriyama.com





SAS Automation, introduces Gripper Finger Sensor Kit

Xenia, Ohio --- >SAS< Automation introduces Gripper finger Sensor Kit to enhance EOAT (end-of-arm tooling) solutions.

End-of-Arm tooling users can now enhance their gripper fingers with a new Gripper Finger Sensor Kit provided by SAS Automation, Ltd. Where sensing is needed, this kit is a cost effective method to provide a signal when the finger is activated.

Safety is improved when positive detection can be made during the gripping operation. Sensing is effectively accomplished by a normally closed, reliable, proximity sensor in a compact unit attached to the gripper.

This kit will not increase the length of the gripper, and can be attached to any new >SAS< GRF 20-95 single acting & GRF 20-95D double acting cylinder gripper fingers, or attached as a retrofit to a similar gripper finger currently in use.


About >SAS< Automation

>SAS< is a leading supplier of modular EOAT modular components & robotic gripper systems capable of servicing any part and any robot.

>SAS< manufactures in the USA "get a grip!", and distributes "nip it!" Nile sprue nipper line, and "GRIP IT!" Asian chucking/gripper line. They are specialists in robotic end-of-arm tooling and gripper systems, sprue nippers, CNC degating and Insert Molding tooling for manufacturing and plastics industries. >SAS< German office services the European market. Sales and support to USA, Canada, Mexico, Europe. ISO 9001:2000 registered.

Corporate Headquarters               European Office:
SAS Automation, Ltd.                 SAS Automation - Europe
1200 S. Patton St.                      Robotergreifsysteme GmbH
Xenia, OH 45385 USA                 Im Schlehert 26
Ph: (937) 372-5255                      D-76187 Karlsruhe
Fax: (937) 372-5555                    Tel: 0721 / 26 30 6-0
                                                 Fax: 0721 / 26 30 6-22
Web: www.sasgripper.com





Monnier, Inc. Introduces Filter Regulator Manifold Series

Monnier, Inc., a 75 year young manufacturer of compressed air preparation products, has launched a filter-regulator-manifold (FRM) product series. This complete air supply package provides up to eight filtered and regulated air outlets from a single air inlet, with minimal connection time for the end user. The "spaghetti" piping usually associated with arraying multiple outlets from a single inlet can be eliminated by using the easy connect manifold.
The FRMs ensure more constant and predictable pressure at the load by reducing the amount of piping and fittings required. These units provide full flow to each port, allowing pressure to be set at exactly what is needed at the actuator without having to account for leakages. Quick connect fittings reduce system installation and service time, ensuring end-user productivity is optimized.
Additional Advantages of Monnier's FRM assembly include:
- Easy to follow flow diagrams.
- Multiple ports for easy expansion and 'one size fits all' - one product can be used on various machines
- Using threaded ports, instant fittings with NPT or G ports can be adapted to various markets, worldwide.
- Ports can be laser etched with permanent identification of each port's function
- Fewer total components
- Air powered accessories can be added later.
- Improved modern appearance - no 'rats nest of tubing'
- Faster assembly with less chance of tubing errors
- Constant pressure yields more predictable machine operation.
- Installation, set up and service simplified.
- Less chance of expensive leaks, which could lead to improper machine operation.
- Add accessories easily.
- Easier for operators to understand.
Monnier's filter regulators are available in a variety of options including bowl size (one to five oz. bowls), inlet porting (1/8" to �", G or NPT), and element (particulate or coalescing). The accompanying manifold can be custom engineered for a specific application, but are currently offered with four, six or eight outlet ports in sizes between 1/8" and 3/8". Standard flow capacities on the FRM units range between 10 scfm and 70 scfm.
More information on Monnier can be found at www.monnier.com, or by calling 810 794-4935.





Bottle Pick-Up Heads Inflatable Gripper Gently Lift Containers from Inside

A new line of inflatable rubber bladder grippers for high-speed production machinery that require minimal air pressure and are easily field-replaceable by hand is being introduced by ANVER Corporation of Hudson, Massachusetts.

ANVER Rubber Air Picker End-Effectors are designed for gently lifting open mouth containers by inflating up to 140% of their size and tightly gripping from the inside without excessive pressure. Capable of conforming to any shape, these delicate rubber bladder attachments are non-marring, provide instant attach and release, and are unaffected by dusty environments.

Requiring approx. 15 psi with no loss of flow to operate, ANVER Rubber Air Picker End-Effectors are sealed to create closed-loop system and come in four sizes from 0.67� to 1.85� (17 to 47 mm) resting insertion dia. Designed for high-speed production machinery, they are field-serviceable by simply replacing the rubber bladder, which slips on and then locks down by a screw collar.

Anver Corporation
36 Parmenter Rd.
Hudson, MA 01749
(800) 654-3500 FAX (978) 568-1570
e-mail: anver@anver.com

www.anver.com




New: High-Speed Picker HSP handling module

Setting a productive pace

The HSP High-Speed Picker from Festo quickly reins in costs for handling and assembly technology. With high cycle rates and intelligent stroke adjustment, the
new Pick & Place shortens production times and improves economic efficiency.

A handling module steps on the gas: At clock frequencies ranging from 0.6 to 1 second, the high-speed picker combines horizontal travel and vertical stroke, including a rest position, into a single unit. The link-rod driven Pick & Place unit is thus the fastest pneumatic handling module available from the market. Increased output rates of up to 100 parts per minute and 20 % shorter cycle times make it a specialist for handling small parts with typical work piece loads of less than 100 grams. Whether it's used for simple insertion and removal tasks at rotary indexing table, or for sorting tasks at transfer systems - thanks to its compact design, the High-Speed picker keeps the pace even in the tightest of spaces. A repetition accuracy of 0.02 mm in the end-positions guarantees that precision is maintained, even at extreme tempos.

Flexible application
The design of the new handling module allows for more freedom of movement. In contrast to most curve-driven systems, the High-Speed Picker is not constructed for rigid movement kinetics. Only the centre bit of the three-part link is fixed on the aluminium basic profile. Both of the side bits can be moved individually and the strokes along the
Y-axis can be set independently of each other. An additional stroke adjustment along the Z-axis enables the independent height offset between Pick & Place Positions. Level differences between rotary indexing tables and transfer systems can thus be quickly and easily bypassed.

Faster start with plug and work
The HSP also gets off to a quick start when it comes to system design, commissioning and assembly: Delivered preassembled and ready to install - with an appropriate installation package if required - it eliminates the need to assemble axes, adapter plates and installation components.


The High-Speed Picker at a glance:
� Link-driven, flexible handling
� Sizes of 12, 16 and 25 mm
� Y strokes from 52 to 170 mm
� Z strokes from 15 to 100 mm

Contact Information for Festo
Phone: 800-99-Festo or Fax: 800-96-Festo
E-mail: customerservice_us@festo.com





New Lift Table from Bimba—Includes New 125mm Bore Size
The Pneumatic Lift Table is a short, stable
cylinder that incorporates four guide shafts for maximum rigidity. It is
designed for lifting applications where other non-rotating cylinders cannot
handle an overhung load and space is at a premium. The lift table is available
in three bore sizes: 50mm, 80mm, and 125mm which can produce 1,900
pounds of lifting force at 100 psi.
Adding to this family of products, the Lift Table shares all the same benefits
of the Extruded Flat cylinders, including a PTFE-impregnated hard anodized body that yields low
friction and maximum seal life. Options include internal bumpers, magnetic position sensing, and high
temperature operation. Stroke lengths are available in 5mm increments to 100mm.

For more information, contact Mark Tichgelaar (tichgelaarm@bimba.com), Bimba Manufacturing Company, P.O. Box 68, Monee, Illinois 60449. Phone 708/534-8544, FAX 708/235-2014, Technical Assistance 800-44-BIMBA





Tustin, CA � SMC Corporation, the world’s largest manufacturer of pneumatic automation products, has announced the introduction of the Series CQM Compact Cylinder with Guides. SMC’s recently developed CQM Cylinder is now available from SMC’s Los Angeles production facility. The Los Angeles factory can produce all bore/stroke combinations in both metric and inch versions.

The CQM cylinder incorporates slide bearings into SMC’s global standard CQS and CQ2 compact pneumatic cylinders, creating an extremely compact guided cylinder. The CQM cylinder fills a product gap between low side load non-rotating cylinders and higher load guide rod actuators, such as SMC’s MGP and MGQ guided cylinders. The CQM is designed to meet or exceed 10 million cycles, ensuring long life.

The CQM cylinder offers excellent non-rotating accuracy: �0.2� for bore sizes 12 and 16 mm and �0.1� for bores 20 to 50mm. The cylinder is designed to allow for easy mounting and adjustment of SMC’s extensive selection of position sensing switches. With 2 to 4 times the lateral load resistance a standard compact cylinder, the CQM cylinder is ideal where moderate side loading may be an issue.

The CQM cylinder has a maximum operating pressure of 1.0 MPa and is available in seven bore sizes ranging from 12 to 50mm with Imperial or Metric mounting threads/ports. Bore sizes

12-40mm have a piston speed range of 50-500 mm/s; and the 50mm bore size has a piston speed range of 50-300 mm/s. The ambient/fluid temperature ranges for the CQM are -10 to 70 deg. C without the auto switch, and -10 to 60 deg. C with switch. All inch mounting and tool plate threads available.

SMC Corporation manufactures high quality actuators and cylinders, airline and air preparation equipment, high-purity products, instrumentation, and a host of fittings and accessories applicable to the industrial automation industry. SMC has 14 production facilities, three of which are in North America –California, Indiana, and Ontario, Canada. SMC’s global presence allows them to provide quality customer service in any part of the world.

Ask for catalog ES20-179 or for more information please visit www.smcusa.com





Longer Travel Lengths Now Available for PHD's Series SxH Slides

PHD has just released longer travel lengths for our Series SxH Cantilever Slides. Previously available with up to 3 inches of travel, Series SxH Slides are now available with travel lengths of up to 8 inches. These slides feature a compact design and provide high load capacities, making them ideal for a wide range of applications.

Series SxH Slides feature precision-machined high capacity TC fluoropolymer composite bearings and are available in five bore sizes (8, 10, 14, 20, and 32 mm). Slide bodies incorporate twin switch slots for flush installation of PHD's Series 6790 Switches eliminating the need for expensive collars, brackets, and target kits. Units are available in imperial and metric versions to accommodate applications in worldwide markets.

Additional standard features include:

� High capacity internal and external shock pads to reduce noise and end-of-travel
impact
� Low breakaway piston and rod seals
� Tapped and/or counterbored mounting holes in slide housing and tool plate with
optional dowel holes for easy unit mounting and attachment of tooling
� Ships next day from order

PHD also offers an economical alternative to our Series SxH Slides. Series SxL Slides incorporate many of the same standard features as the Series SxH Slide, but are designed with self-lubricating polymer bearings with hard chrome plated shafts for moderate load capacity, low friction, and a lower price. Series SxL Slides are available in five bore sizes (8, 10, 14, 20, and 32 mm) and provide travel lengths of up to 3 inches.

Like other PHD products, Series SxH/SxL Slides are offered with a wide range of options to fit specific automation design requirements. For more information, send for a free catalog today or visit our web site at www.phdinc.com/salsah. For immediate assistance, call PHD, Inc. at (800) 624-8511.

PHD, Inc.
P.O. Box 9070 o Fort Wayne, IN 46899
(800) 624-8511 o (260) 747-6151 o FAX (260) 747-6754
Internet Web Site: www.phdinc.com
E-mail: phdinfo@phdinc.com




ASCO introduces a new line of Pressure Sensors

ASCO, the leader in the design and manufacture of solenoid valves, now offers a complete line of Pressure Sensors. With pressure ratings up to 10,000 PSI and the ability to handle rugged applications like steam and refrigeration, ASCO Pressure Sensors will satisfy your most demanding needs. The ASCO Pressure Sensor line is suitable for accurately measuring many process fluids in the most demanding, pulsating and vibrating environments.

The one piece pressure cavity is machined from 17.4 PH stainless steel, which offers no source for contamination of the process fluid or the sensor. This design provides the stability, accuracy, flexibility, and EMI resistance that your process needs.

For More Information call (519) 758-2700 or e-mail us at ascomail@asco.ca.











Norgren's new multi position airless cylinder delivers precision and control

Littleton, Colorado, USA - April 2004. Norgren, the motion and fluid control specialists, has extended its range of actuator solutions with the launch of its new multi position airless cylinder. With precision at the heart of the design, the new electric actuator complements Norgren's existing range of pneumatic cylinders, thus allowing even more customers to benefit from the competitive advantage that Norgren builds into its engineering solutions.

With the capability to move loads up to 22 pounds (11Kg) the multi position airless cylinder operates at very high speeds and is fully programmable to deliver high stroke accuracies. This makes the actuator ideal for inclusion in applications that require high speeds combined with multiple position operation such as high speed insertion equipment in the packaging and semiconductor manufacturing sector, automatic test/inspection, printing and medical industries.

Featuring the capability to store multiple stroke end points each with its own defined speed, acceleration and force parameters, the positions can be programmed anywhere in the stroke range. The system can be run in different modes: using a programmable controller's I/O modules or from an optional fieldbus connection. For set-up and tests the multi position airless cylinder may automatically run a stored program. This makes the device ideal for a large machine with PLCs, industrial computers and for smaller machines with limited I/O capability.

The airless cylinder requires one electrical connection to operate and can be disabled from the supply when not running thus conserving energy. Featuring no mechanical connection between the moving mass and the stationary mass the airless cylinder features extremely long life and product reliability. The movement is produced by the interaction of two magnetic fields, one field from permanent magnets in the slider and the second field produced by electric current in the motor windings located in the stator. Unlike rotary motors either motor part can move if the other part is held fixed.

The programming of the cylinder is straightforward and intuitive. Desired positions are entered using a laptop or by 'teaching' the unit (moving it by hand and remembering the position). Guiding system information (weight, friction, motor parameters) is entered once and stored under a "module description". The operator does not have to enter this information. This method of programming means that the operator saves time and money when making product changeovers by simply retrieving a stored program.

Further information on this new range can be found at www.norgren.com.





New 3 Finger Grippers Offer Small Sizes With Big Features

The new series 3-finger concentric gripper � MPZ is extremely
compact with the features and options normally only found on larger
gripping products. When gripping and handling small components
two characteristics are considered principal � speed and precision.
The new MPZ compact 3-finger grippers offer repeatability of less
than 10µm (0.0004�) and actuation speeds as fast as 20ms.
Unmatched speed and precision is achieved through precise low
friction guidance. Consistent grip force, long finger capability and
long life are assured as well.

The actuation mechanism is based on the proven double wedge
principal. The pneumatic cylinder is integrated directly in the
housing providing the most compact lightweight package possible.

The grippers are available in 3 body sizes ranging from 30mm to 45mm
allowing proper selection and sizing for many diverse applications. Strokes are
between 6mm and 10mm resulting in grip forces from 60N (14lbf) to 285N
(65lbf). Spring assist models are available for internal or external gripping to
enhance grip force and safety in the event of air loss. These additional standard
models expand the application range further compared to pneumatic only
driven units.

The gripping conditions of open, closed or part present are easily monitored
with magnetic type switches. Up to 5 positions can be monitored with the
optional SCHUNK FPS (Flexible Positioning Switch). The technical features
and options coupled with world known SCHUNK quality make this gripper
series a true innovation.

SCHUNK INC.
211 Kitty Hawk Drive
Morrisville, North Carolina 27560
Phone: 919.572.2705 or
800.772.4865
Fax: 919.572.2818





MTS INTRODUCES NEW TEMPOSONICS POSITION SENSOR LINE

CARY, N.C. - MTS Sensors today announced the introduction of the Temposonics G-Series linear position sensor product line. Utilizing advanced electronics and a new microprocessor-based design, the MTS Temposonics Engineering Team has responded to customer requests for additional functionality at a lower total cost, with innovations that include fully programmable sensor set-up and complete diagnostic capabilities for efficient installation and troubleshooting in the field. In addition, the G-Series offers improved magnetostrictive sensing performance and is fully compatible with existing installations of L-Series and Temposonics II Series sensors.
"As the inventor of magnetostrictive technology, MTS Sensors has always led the way in innovation," said Temposonics Marketing Manager, David Edeal. "The G-Series answers our customers call for enhanced functionality, while maintaining our standard features - all at lower cost-of-ownership."
The advanced G-Series electronics provides better linearity, EMI immunity, and signal to noise performance in harsh electrical environments. Enhanced packaging also offers improved shock and vibration resistance to ensure that the G-Series is rugged and reliable even in the most demanding motion control applications.
The Temposonics Engineering Team responded to market needs by designing the G-Series with advanced diagnostics capabilities, and more importantly, accomplished this in a manner that is practical for the engineer or technician in the field to use. Red and green LED indicators located directly on the sensor may be monitored for errors such as missing magnets, weak signals, insufficient or out of range input power, and other maintenance issues that consume both time and money for customers. These diagnostic features provide plant engineers with enhanced methods for troubleshooting and commissioning in the field without having to remove the sensor, thereby lowering the total cost for the sensors.
In addition, the G-Series offers multiple methods for external programmability to reduce installation time and cost. In-line pushbutton or PC software programming may be accomplished using a serial communications link.
Customers currently using L-Series or Temposonics II sensors in the field will find that the G-Series will provide "drop-in" replacement for existing installations with little or no changes required. The MTS Applications Engineering team is available to answer technical questions about the new G-Series - call (800) 633-7609.
For more information on Temposonics G-Series Sensors, please contact: MTS Systems Corp, Sensors Division, 3001 Sheldon Drive, Cary, NC 27513. Phone: (919) 677-0100. E-mail:displacement@mtssensors.com.



ITW Vortec has introduced Cold Air Tubes - a compact, ready-to-use source of refrigerated air. With no moving parts, the tubes convert compressed air into a low pressure stream of cold air that reaches temperatures as low as -20°F. Cold Air Tubes are designed to kill heat buildup that can slow production or create problems on parts and equipment. Their sub-zero airflows offer an effective spot cooling solution for use on machinery and in fabrication, assembly or processes. At less than 10� long, the maintenance-free cooling component is adaptable for numerous applications, with three models available offering different cooling capacities. Cold Air Tubes are easily installed, provide instant on/off performance, quiet operation, and are covered by a 10-year warranty.

For More Information:

ITW Vortec
10125 Carver Road
Cincinnati, OH 45242

Phone: 800/ 441-7475
Fax: 513/ 891-4092

Website: www.itwvortec.com
E-mail: techsupport@vortec.com





CLIPPARD EVP SERIES PROPORTIONAL VALVES


Clippard Instrument Laboratory, Inc. announces the addition of the EVP Proportional Valve series to its electronic valve product line. This product combines the features of the existing EV series valve - long life, low power, and rugged design and fast response.

The EVP Series valve provides control of air or gas flow, and varies the output flow based on the current input to the solenoid. Consistent gain provides a high degree of control for many applications.

Control and overall value are some of the main features of the EVP Proportional Valve. The valve may be controlled using DC current, open- or closed-loop control, and PWM (pulse width modulation) to cover a broad range of applications.

For more information, please contact your local Clippard distributor, or contact us today:


Clippard Instrument Laboratory, Inc.
7390 Colerain Ave.
Cincinnati, OH 45239
(513)-521-4261
www.clippard.com



FasTest Introduces Ultra-Quick Dry Leak Test System

FasTest–expands its connector product capability with the introduction of an ultra-fast dry leak detection system. The "Lightning" Leak Detector makes leak-testing fast and simple. It can reduce test cycle times by 80 percent. The easy setup and programming makes it a valuable tool for eliminating water-dunk and bubble testing. This small powerhouse performs pressure decay leak testing sensing pressure changes to 0.00005 psi. Lightning provides easy-to-read self-diagnostic messages and setup procedures and can be integrated into a fully automated system. Test results can then be downloaded on a computer or PDA for analysis.

Intuitive prompts on the LED display make setting parameters easy. Lightning also provides an automatic calibration system, which correlates pressure loss to the internal NIST traceable leak orifice. With its ease-of-operation and accuracy, the FasTest Lightning leak detection is a proven cost effective addition to any facility process where leak-proof products are a must. Lightning provides companies an affordable investment that pays off in accuracy, rapid test cycle times, and most of all - it's simple.

FasTest, Inc. is the "one-stop" source for leak testing, filling, and evacuation of gases and liquids. More companies rely on FasTest's turnkey solutions for saving them valuable time and costs. FasTest provides complete leak test solutions for the automotive, appliances, refrigeration, HVAC, hydraulics, pneumatics, plumbing fixture, aerospace, instrumentation, and medical equipment.

FasTest, Inc. is a leading manufacturer of leak-tight sealing and pressure testing products from production applications. For a CoreMax brochure or more details, contact: FasTest, Inc., 2315 Hampden Ave., St. Paul, MN 55114. Phone: 800-206-0316. Fax: 651-645-7390. www.fastestinc.com







DGE.. -RF Electrical Toothed Belt Axis with Internal Roller Guide…Simply More Dynamic!

Festo Corporation, a global leader in automation solutions, is pleased to announce the introduction of our new electrical drive, the "DGE..-RF", an ideal valve technology for any automation task. The DGE-RF boasts extremely short cycle times, but with a minimum of noise!

The DGE-RF has sufficient grease reserves that can be easily replenished without having to reach into the housing - 5,000 km without lubrication.

Axes, motors, gearing, coupling and controller? - You get all these with the DGE-RF - harmonized and of course extensively tested!

Motors from other manufacturers? - The coupling concept supports the attachment of non-Festo drives.

Standardized mechanical interfaces? - The DGE-RF adapts easily to the multi-axis modular system thanks to the concept of mounting options on three sides of the main profile.

Contact Information for Festo
Phone: 800-99-Festo or Fax: 800-96-Festo
E-mail: customerservice_us@festo.com





John Guest Announces New line of Push-Fit Products for Compressed Air Systems

John Guest push-fit fittings and pipe provide the ideal connection from the compressor receiver to the take off points for the point of use equipment. Compressed air systems can be installed quickly and easily, considerably reducing the need for specialist staff and providing reduced production down time.

No need to prepare threaded pipe or apply solvent; all the connections can be made with a simple push-in action. The system is then immediately ready for use. Complex systems can be assembled much more rapidly than with the traditional methods. And because they are also easy to disconnect, systems are easy to modify or expand.

Our fittings are produced in tough engineered plastics or in brass. They are designed for use with John Guest nylon pipe but can also be used with copper or aluminum pipe.

For further product information contact:
John Guest USA, Inc.
Toll Free: 1-800-94 JG USA
Fax: 1-877-77 JG FAX
Email: info@jgusa.com







Indianapolis, Indiana SMC Corporation of America, the world’s largest manufacturer of pneumatic products and filtration equipment has announced the release of the Series FN1 Filter designed for machine tool and general machinery industries.

With a unique patented element design and back-flush feature, the Series FN1 filter from SMC,
generates no industrial waste, as there are no replaceable filter elements, thus saving you cost of filter elements, maintenance and help achieve your goal to be environmental friendly to meet ISO 14001 standard.

The element of the FN1 filter is constructed of a series of grooved filter plates and wave washers placed one above the other and compressed by a compact cylinder on the top of the filter. When the element is compressed, foreign matter in the fluid is trapped in between the plates and washers. Decompressing the element allow the foreign matter to be back flushed and washed away for collection, eliminating the need for element replacement and providing a low maintenance operating regime. Recompressing continues normal operation.

The process of filtration and back flushing cycle can be carried out manually or automatically. The control circuit for the cycle operation can be built using a totally pneumatic or electro pneumatic circuit, for which SMC provides the required pneumatic components. In automatic operation, a differential pressure switch indicates filter element clogging

The FN1 series filter operates in tandem with the FNR reservoir, which stores the fluid required for back flushing, and FND dust recovery filter for collecting the debris. All three units are primarily constructed of stainless steel SUS304 and form an integrated circuit for industrial waste removal.

The filter is compatible with water (industrial and distilled), water-soluble and oil based coolants: petroleum (Oil, kerosene and xylene) and ammonia hydroxide, sodium hydroxide and alkalis. Seal material is available as either nitrile rubber or fluoro rubber to suit the application.

The filter element is available in two types, cylindrical and step type. The cylindrical type has a smooth peripheral surface, as the dimensions of the filter plate and wave washer are the same. The element is ideal for filtering fluids that contain dust with same particle size, as it provides a larger filtration area and easier dust separation. The step type element has an uneven (stepped) surface, since the dimensions of the filter plate is smaller than that of the wave washer, and is recommended for fluids containing dust particles with large variance in sizes

Element lengths are either 250mm or 500mm with respective flow rates of 40 liters per minute and 80 liters per minute. (at 20-micron filtration). Compatible reservoirs have tank capacity of either 1.1 liters or 1.8 liters. Maximum operating pressure of the filter is 1.0 Mpa and maximum fluid temperature is 80ºC.

For larger flow rates SMC also offers 200 liters per minute filter as a special, and also the standard filters can be mounted in parallel


For more information, please visit www.smcusa.com







PNEUMATIC PRODUCTS CATALOG ON CD OFFERED BY PARKER


Parker Hannifin Corporation's Automation Group has released a new product selection guide and an accompanying electronic catalog on CD for its complete line of pneumatic components and systems. Bulletin AU01-1000/US includes over 3000 pages of catalog information from all of the company's pneumatic divisions. The CD contains product information for everything necessary to design and order a complete pneumatic system.

This comprehensive electronic catalog describes Parker's complete line of pneumatic products including valves, air preparation units, cylinders, slides, rotary actuators, grippers, vacuum components, pressure sensors, fittings, tubing, hose, quick couplings and structural framing systems. There is also information on training programs and materials available from Parker.

Each product series listing in the catalog has an accompanying CD icon and search code. Entering this code into the CD reader's search window takes the user directly to detailed technical pages for that specific product.

The electronic catalog contains detailed information for all products including specifications, performance curves, technical data, cross-sectional drawings and dimensional views. Complete ordering information, including model codes and part numbers, is covered as well. The CD also contains links to each division's web home page where you can view the latest updated product information. The electronic catalog operates with self-loading Adobe Acrobat Reader software, which is included on the CD.

Parker



NEW P2010 Vacuum Pump-The Smallest Multi-Ejector Pump in the World

PIAB introduces the smallest multi-stage ejector pump in the world today, the P2010! The P2010 weighs 0.54 ounces and reaches 24.9 –in Hg at only 26 psi feed pressure.

This pump uses a Micro-COAX� vacuum cartridge called Bi03-2. By operating at such a low air pressure, you can cut your compressed air costs by 50 percent while providing 100 percent higher vacuum flows compared with traditional single-stage ejectors on the market.

With its low decibel rating of 61-64 dBA, you can use the P2010 on a tabletop robot without being bothered by the noise from the pump.

The P2010 is a self-contained multi-stage ejector pump that can hang freely from its own connections or mount by using the pre-drilled holes.

Your benefits include:
� Inline design makes possible simple and inexpensive installation.
� The very low weight makes it possible to place the pump quite close to the suction cup without having to reduce the speed of the “pick-and-place� movement.
� The low feed pressure ensures high operational reliability, low air consumption and very low noise.
� The Micro COAX� cartridge can easily be exchanged whenever needed that equates into shorter downtime.





Technologically advanced design features provide enhanced cost/value advantages with new Isonic� MOD3 solenoid air valves.

New patented Isonic� MOD3 series air valve technology incorporates upgraded internal wiring, a
built-in PCB connector, and snap-on installation - with all valve components encapsulated in a
half-shell thermoplastic valve body. Since all connections are integral to the valve body, no
additional wiring, connectors, or fittings are required to install the valves, reducing labor costs.
Because electrical and pneumatic connections are made simultaneously without tools, the
advanced technology half-shell design makes installation inherently easier and faster.

The unique modular design accommodates three and four way single and double solenoid valves,
as well as direct acting valves on the same manifold in a highly versatile, expandable control
base. A simple release enables the operator to remove a valve with the press of a finger, and a
replacement valve can be pushed in place as easily as plugging in an electrical cord. The
installation system virtually eliminates downtime, providing further cost savings.

The technically advanced MOD3 series is unique in its simplicity, offering the most advanced
design of any valve manifold system available, at a significantly lower cost than other
comparable valve manifold systems.

Since 1939, Mead Fluid Dynamics, Inc. has introduced a stream of innovative technological
advances to the field of pneumatic components - including control valves, cylinders, specialty
valves, and production devices. The Company is located at 4114 North Knox Avenue, Chicago,
IL 60641. Fax:(773)685-7002. Visit our website at www.mead-usa.com

Company Contact: Steve Thiel
Mead Fluid Dynamics, Inc.
(773) 685-6800

Agency Contact: Mike Weber
Marcus, Inc.
(847) 459-6600





Turn the page to engineering advantage with Norgren's new, all inclusive pneumatics catalog


Littleton, Colorado, USA - 2004 February 2004. Norgren, the motion and fluid control specialist, has recently introduced its 2004 catalog focusing on its range of pneumatic products and systems for a wide variety of industry sectors. Produced in 12 different language versions the catalog is perfect for international OEM's who want the reassurance of global support in export markets.

With a fresh new look and feel the catalog has been structured to deliver competitive advantage to customers who are seeking to make product selections fast. Showcasing 17 new products and featuring Norgren's flagship VM10 valve system technology the catalog contains over 500 pages of detailed product information and outlines the comprehensive range of engineering solutions to suit today's most demanding applications or projects.

Featuring deep website links on every product page the user can type the unique URL into a web browser and be automatically taken to the relevant product section within the Norgren web site. When at this page the user can down load full product data sheets and even buy the product on line via Norgren's web store facility.

To receive a copy simply visit the Norgren website at www.norgren.com or contact your nearest distributor







Hargraves Technology Announces the Release of the LTC TM Pump


(Mooresville, NC) February 25, 2004. Hargraves Technology Corporation (Hargraves) announces today the release of the LTC series pump. The addition of the LTC diaphragm pump broadens our product breadth while increasing Hargraves' capability to solve unique fluidic applications. The LTC is now available through our e-commerce site with immediate delivery and specifications can be found under the "what's new section" of the Hargraves site (www.hartechcorp.com).

The LTC utilizes motor and material technologies derived from the existing BTC product line. The pump head design incorporates an innovative diaphragm configuration and patent pending sealing technology that surpasses other diaphragm pumps.. The absence of metal in the flow path enables a variety of liquids to be used. These pumps come standard with 1/4 -28 UNF ports.

According to Doug Curtis, Engineering Manager at Hargraves, "creating a leak-tight seal between the pump head and diaphragm presented an interesting challenge to our engineering team. After scrutinizing several designs, the most reliable configuration was selected and deemed "Fluid-Blok" by virtue of its ability to prevent leakage. This patent pending design creates a wedge between the pump head and diaphragm."

Hargraves strives to produce the best and most reliable miniature diaphragm pumps in its class. The patent pending pump head efficiency and long life continues to excel the Hargraves name in the miniature diaphragm pump industry.

The LTC literature is downloadable at www.hartechcorp.com/new.htm and is available for purchase on our e-commerce web site www.hartechcorp.com/store.html. Please contact Hargraves at 704-662-3500 for questions or technical assistance with the LTC series liquid pump.




Position Feedback Cylinder Now Available with Integral Rod Lock

February 13, 2004, Monee, Illinois - Bimba Manufacturing Company is pleased to announce the immediate availability of their new Position Feedback Cylinder with Integral Rod Lock, Model PFCL- in five bore sizes. When used in conjunction with the PCS pneumatic position control system, the rod lock can be used to offer a highly repeatable, precise hard stop once the actuator reaches the desired position. If a less accurate position is required, the system can be used in conjunction with a 3 position, 5 way directional control valve for positioning, and engaging the rod lock for a final mid-position hard stop.

The PFCL incorporates a clamp/cam device to hold the piston rod in position upon loss of air pressure. Its simple and effective design provides a low-cost, reliable locking cylinder. Holding forces range from 90 pounds in a 1-1/16" bore cylinder, to 700 pounds in the 3" bore. The rod lock offers a very cost effective positive, rigid, mid-position stop. It is intended to be used as a static locking device, which can be applied once the piston rod is in the stopped position.

Application examples include: � Variable press (allowing clamping at a variable position), flow gate (adjustable diverter for conveying), work table (different heights for ergonomics), and bar feed (feed-clamp applications). The innovative PFCL expands our product breadth further for position control system products, which include position feedback cylinders that incorporate integral LRT transducers, DPM controllers for precision measuring and gauging applications, PCS pneumatic position control systems for accurate motion control, and TRD NFPA interchangeable actuators that also incorporate integral LRT transducers. Request new product bulletin, PFCL-104/PCS, for catalog information.

For more information, contact Mark Tichgelaar (tichgelaarm@bimba.com), Bimba Manufacturing Company, P.O. Box 68, Monee, Illinois 60449. Phone 708/534-8544, FAX 708/235-2014, Technical Assistance 800-44-BIMBA.





NEW PETERS PRESSURE SWITCH

Electronic pressure switch with 360� indication (Patent pending)

With the NEW pressure switch series EDC from Peters Indu - Produkt the company fulfills the increased demands on optimized visibility and user friendly operation. The status of the switch can be seen from every point of view because of the 360� status indicator ( green or red flashing ) The exact pressure can be red on the bright 3 digit LED display which can be programmed to the "upside down" mode which turns the digit's 180 � so that the switch can be installed overhead. The ceramic sensor provides highest accuracy on the whole temperature range with high overpressure safety. The EDC switches are available from -1 to 400 bar.


For further information please contact:

Peters Indu-Produkt
Mercatorstr.41
46485 Wesel
Germany

www.peters-indu.de
info@peters-indu.de







New 3 Finger Gripper Delivers Higher Load Capacity And Longer Finger Capability


SCHUNK,Inc. has introduced a complete new series 3- finger concentric gripper � PZN-plus. Extending the
capabilities of the current industry standard PZN series, the “Plus� stands for even higher load capacities, longer finger capability and better efficiency.


The basis for this increase in efficiency on the PZN-plus is the newly designed jaw guidance. Forces and moments of the gripper - or acting on the gripper - are spread over several surfaces of a multiple-tooth guide, enabling finger length increases of up to 30%. Moment loading capability is greatly enhanced allowing higher external loads to be   applied without damage to the gripper or problems with operation. The actuation mechanism is based on the proven double wedge principal. The size of the wedge was increased compared to the standard PZN to assure absolute reliability even under the increased loads. The pneumatic
cylinder is integrated directly in the housing providing the most compact lightweight package possible.


The gripper is available in 5 body sizes from 64mm to 60mm.Even with this small size, the grippers produce
between 580N and 18,000N of grip force with strokes from 12 mm to 50 mm.Each body size has multiple stroke versions with I.D. or O.D. spring assist. These options assure proper sizing exactly to the application without compromise.


The gripping conditions of open, closed or part present are easily monitored with magnetic or inductive type switches. Up to 5 positions can be monitored with the optional SCHUNK FPS. For part loading against hard positions, a spring packaged pressure plate is available.


SCHUNK INC.
211 Kitty Hawk Drive
Morrisville, North Carolina 27560
Phone: 919.572.2705 or
800.772.4865
Fax: 919.572.2818
www.schunk-usa.com
info@schunk.com





New Series GRF Grippers Ideal for Limited Space Applications and Provide Exceptional Grip Force

PHD has just released the NEW Series GRF Gripper, which features a fully enclosed, self-lubricating cam driver and jaw covers to prevent contamination and maintain optimum lubrication. The unit's low profile design makes it ideal for limited space applications. In addition, the Series GRF Gripper provides a high grip force to weight ratio and is ideal for gripping parts of varying size.

The Series GRF Gripper is available in four sizes (19, 25, 28, & 32 mm) with one or two jaw travels available per size, which provide superb adaptability to meet a variety of applications. To ensure longevity of service life, each unit is designed with rugged jaw support, hardened jaws, and hard coated bearing surfaces. All bodies feature dowel pin holes for accurate gripper mounting alignment. The two larger sizes (28 & 32 mm) also provide dowel pin holes in the jaws for accurate tooling alignment.

Optional inductive proximity switches as well as solid state and reed switches are available for indication of jaw position and simple interfacing with electronic system controls. All bodies incorporate twin switch slots for convenient mounting of PHD's reed and solid state switches. A choice of metric or imperial mounting holes, dowel pin holes, and ports provide an excellent MRO drop-in replacement opportunity. Consult PHD or your local distributor for unit compatibility.

For more information, send for a free catalog today or visit our website at www.phdinc.com/pfc. For immediate assistance, call PHD, Inc. at (800) 624-8511.

PHD, Inc.
P.O. Box 9070 o Fort Wayne, IN 46899
(800) 624-8511 o (260) 747-6151 o FAX (260) 747-6754
Internet Web Site: www.phdinc.com
E-mail: phdinfo@phdinc.com


LOW COST MEETS HIGH QUALITY ,
PISCO T SERIES TUBE FITTINGS AND SPEED CONTROLLERS.


Elk Grove Village, IL - Pisco's new T Series Tube Fittings and Speed Controllers are offered at a lower price than their existing line of tube fittings and speed controllers - a savings that is passed on to pneumatic equipment users.


Pisco's advanced manufacturing process has resulted in the efficient production of the new T Series Tube Fittings and Speed Controllers, and in the new lower price. Though lower in price, Pisco's T Series, featuring lightweight components and a compact design, successfully maintains quality performance.


Maximum service pressure for T Series Tube Fittings and Speed Controllers is 150 psi, and service temperature, ranges are 32 - 40 degrees F. T Series Products are lSO 9001 Certified, and available from stock.


For more information, contact

Pisco USA, Inc.,
100 LeLand Court, Unit A,
 Bensenville, IL, 60106
Phone: (630) 521-9920,
Fax: (630) 521-9927
E-mail: inquiry@pisco.com
www.pisco.com.



Offering in built quality and reliability Norgren launches a new range of linear slide tables

Littleton, Colorado, USA - January 2004. In a move to further develop its range of automation solutions Norgren has announced the launch of a new range of linear slide tables. With a proven track record in the supply of pneumatic and automation solutions the new range of linear slide tables complements the current families of grippers, vacuum components, rodless and rotary actuators.

In the design phase of this new range particular emphasis has been placed on engineering a product that offers superior quality combined with reliability. Utilizing superior quality components within the construction of the linear slide has allowed Norgren to offer a solution that delivers market leading accuracy, strength, reliability and rigidity. This ensures minimal cost of ownership and maximum machine yield due to a reduction in machine or process downtime.

Ideal for use in applications that require the transportation of loads over short distances for example pick and place, fluid dispensing and product testing machines, the new range can be widely employed by OEM's and automation machine specialists in industries such as the electronics, packaging and medical sectors.

Available in compact, precision, low profile, synchronous and adjustable formats, the new linear slides suit the needs of most project specifications. As one of the most comprehensive ranges of linear slide tables on the market, customers are able to obtain multiple products from one source thus reducing purchasing and inventory costs.

The new range of linear slide tables have been optimized to deliver further benefits such as quick/easier load attachment to reduce labor costs and process changeover times. What's more the new products offer secure product installation again helping to reduce labor costs and maximizing performance.

Across the whole range standard models are magnetic with stroke adjustment. Individual linear slide tables can be specified quickly and easily to suit individual customer requirements. This is mostly due to the large variety of standard options available; customers can reduce inventory costs because there is no need for expensive custom-built specials. Slide tables are available with maximum stroke lengths from 30mm to 150mm. Port sizes are from 6mm to 32mm. Further information on this new range of linear slide tables can be found at www.norgren.com.





Tustin, CA � SMC Corporation, the world’s largest manufacturer of pneumatic automation products has announced the release of the ITV1000 Electro-Pneumatic Regulator. The ITV1000 fills the gap between SMC’s super compact ITV0000 and the larger ITV2000 and 3000 –all of which have been a big hit with customers due to their precision operation.

The ITV1000’s max flow rate is 250L/min (ANR) when a set pressure of 0.5MPa is applied, making it ideal for applications that require a flow rate between the ITV0000’s 7L/min and the ITV2000’s 1500L/min.

“One of the many advantages of using ITV regulators is SMC’s decision to go with a dual pilot valve design, reduces both cost and air consumption. The more typical flapper nozzle design prevalent in many competitors require a constant air bleed-off to operate properly.� stated C. Brion Kidder, Senior Product Manager for SMC Corporation of America.

The ITV regulators offer step free control of air pressure proportional to an electrical signal. Internal circuitry pulses supply and release valves to maintain the desired output air pressure. Compatible inputs are: 4-20mADC, 0-20mADC, 0-5VDC, and 0-10VDC analog inputs; 4-wire digital input. ITV2000 and 3000 are available in 10-point or 16-point digital input DeviceNet network-compatible types and are available with 5 monitor output options. They have a sensitivity of 0.2 kPa, linearity within 1%, and hysteresis within 0.5%. All but the ultra compact ITV0000 have an easy-to-read digital LED display. All SMC ITV regulators have earned the CE & IP65 rating.

SMC Corporation manufactures high quality actuators and cylinders, airline and air preparation equipment, high-purity products, vacuum components, instrumentation, and a host of fittings and accessories applicable to the pneumatic automation industry. SMC has a total of 14 production facilities, 3 of which are in North America –Indiana, California, and Ontario, Canada. SMC’s global presence enables it to provide quality customer service in any part of the world.





NEW 'W' Jaw Released for Series PFC Clamps

PHD announces the release of the NEW 'W' jaw for Series PFC Clamps. Clamps featuring the 'W' jaw design are especially suited for clamping short, wide parts closer to the tooling surface. The 'W' jaw produces 7,200 lbs of total clamp force 2.187 inches above the tooling surface at 87 psi. This force is constant as the jaws close through the last two degrees (per jaw), producing a 0.150 inch wide power window.

Series PFC Clamps are also available with the 'L' jaw to accommodate tall, narrow components. Both designs can be specified with an optional weld cover to protect the unit against harmful sparks and debris created in welding environments. Series PFC Clamps conform to North American Automotive Metric Standards (NAMS), offer the lowest cost of ownership, and are available in one working day.

Additional benefits include:

� Tooling surface has dowels and threads to North American Automotive Metric Standards
(NAMS) NC blocks.
� 'L' Style Jaws have dowels and threads for NAMS mounting and shims.
� Modular design allows the jaws and bushing block to be easily removed for modification.
� Position sensing option provides open and close sensing with an industry standard AC or DC
weldfield immune switch mounted to a protected housing.
� Operates quietly in less than .6 seconds. Flow controls are not required. Body has orifice
communication.
� Fully field repairable in less than 30 minutes using only four metric hex wrenches.

For more information, send for a free catalog today or visit our website at www.phdinc.com/pfc. For immediate assistance, call PHD, Inc. at (800) 624-8511.

PHD, Inc.
P.O. Box 9070 o Fort Wayne, IN 46899
(800) 624-8511 o (260) 747-6151 o FAX (260) 747-6754
Internet Web Site: www.phdinc.com
E-mail: phdinfo@phdinc.com




MPA Valve Series� Systematically More Modular!

Festo Corporation, a global leader in automation solutions, is pleased to announce the introduction of our new modular sub-base valve system, the "MPA Valve Series", an ideal valve technology for any automation task. Whether connection, functionality or pressure supply is concerned, the adaptable MPA valve system is easily modifiable and expandable- from individual valves and multiple connection plates, to fieldbus valve terminals. Designed for easily integration with the CPX Electrical Valve Terminal.

With the help of threaded connectors, all of the components - including valve units, electronic modules and pressure supply modules can be mounted on sub-bases and assembled into individualized, low-maintenance solutions, which can be quickly modified and expanded if necessary - on-site without removal from the system.

Ultra-versatile: Valve functions 5/2, 5/3, 2 x 3/2, 2 x 2/2 and 3/2 with external air supply.

Total modularity and flexibility: Highly cost-effective serial bus for controlling valves with up-to 64 solenoids. Valve terminals can be reconfigured and expanded easily, on the spot if required.

Increased machine-up time: With LED indicators on each valve and diagnostic messages via fieldbus.

Extremely easy to service: Interchangeable valve and electronic modules.

Highly practical: Offering labeling systems, multiple override selections and the broadest range of electrical or electronic options. Plus, Festo quality, service and global support.

Features:
� Modularity for easy conversion and expansion. Fast connection of sub-bases using three screws.
� MPA valves with high flow rates of up to 360 l/min.
� Broad operating voltage range. Voltage tolerance 24 V � 25 % (18 ... 30 V DC).
� Broad pressure range of 10.9 ... 10 bar.
� Option of different pressure zones, flexible compressed air supply, and additional supply can be input at any desired point using easy-to-fit isolating discs and supply modules.
� Integrated large surface area silencers or ducted exhaust air.
� Electrical I/O's and fieldbus connection via modular valve terminal CPX.
� Durable identification of valves by means of label holders on sub-bases.
� Operation with standard air qualities: 40 µm filtered, lubricated or unlubricated compressed air or inert gases.

1. Valve terminal with CPX fieldbus connection
- Up to 32 valve positions
- Up to 64 valve coils
- Serial valve control
2. Valve terminal with electrical multi-pin connection
- Up to 24 valve positions
- Up to 24 valve coils
- Parallel valve control
3. Valve on individual sub-base
- M8 plug connection

For Further Information Contact:
Festo Corporation
395 Moreland Road
PO Box 18023
Hauppauge, NY 11788
Tel: 631-435-0800
Fax: 631-435-8026

www.festo-usa.com







Norgren extends Pneufit pneumatic fittings range to deliver choice and value

Littleton, Colorado, USA - November 2003. Norgren, the motion and fluid control specialist, has quadrupled its competitively priced popular Pneufit C range of composite, push-to-connect pneumatic fittings. It has also further strengthened the entire range with the introduction of the all-new ultra compact series of Pneufit M fittings with sizes down to M3. Offering fast assembly with no special tools, Pneufit has been designed for the connection of tubes to pneumatic components. Suitable for use in a wide variety of industrial applications the range is designed for customers who are looking to achieve competitive advantage by purchasing economically priced parts and are looking to capitalize on the cost savings that can be made through rapid assembly.

Having been expanded from 300 to 1200 different variants the Pneufit C series is available in over 40 different shapes covering tube sizes from 4mm to 16mm and 5/32" up to �". The Pneufit C is available with metric, ISO R, ISO G, UNF and NPT threads. With the capability to grip polyurethane and nylon tube the components feature recessed captive o-rings on parallel threads and pre-applied thread sealant on all taper threads for optimum rapid sealing.

The all-new Pneufit M has been specifically developed for industries where OEMs find that space is at a premium and are seeking miniature solutions to give them an engineering advantage. One typical example of an application that requires miniature solutions is within the semiconductor/electronics industry. With tube sizes of 3, 4 or 6mm threads include M3 up to 1/8" ISO R. Inch tubes include 1/8", 5/32" and �" with threads from 10-32 UNF up to and 1/8" NPT.

"With the expansion of the Pneufit line of push in fittings we can now offer a very comprehensive range to customers" stated Tim Perry Norgren's Product Marketing Director fittings. " In a business environment where cost savings by whatever means are continually being sought, Norgren is ideally placed to offer a one stop shop for fittings at very competitive prices to complement our full range of motion and fluid control solutions."

Further information on this new range can be found at www.norgren.com





New Electro-Pneumatic Pressure Control Valves
Electro-pneumatic pressure control valves convert an electrical signal
proportionally into pneumatic pressure allowing users to change
pneumatic pressure or force electronically.


Rexroth ND-5 Electro-Pneumatic Pressure Control Valves
The new ND-5 series of E/P's has excellent repeatability and are
available with analog or serial link control options.

The new ND-5 series of electro-pneumatic converter valves from Rexroth allow
highly accurate, electronic remote control of pneumatic force or pressure.
Models are available to allow analogue or serial link connection to the poppet
type valve, whichever best suits the application. With a flow rate of over 28
SCFM, output pressure up to 150 psi, and a hysteresis of less than one psi, the
ND-5 can handle a large variety of tasks such as tensioning or press force control.
Models are available to accept current or voltage electrical signals, or serial link
communication. Universal pneumatic port threads accept ISO G 1/4 or 1/4" NPT
connections.

Bosch Rexroth Corporation, a merger of Bosch Automation Technology
and Rexroth, is a wholly owned subsidiary of Robert Bosch GmbH. In the
year 2002, Bosch Rexroth AG had total revenues of approximately $3.89
billion (3.62 billion Euros) and a worldwide total of around 26,000
employees. In the Americas, Bosch Rexroth had total revenues of $795
million and about 3,000 employees in 2002.

Business units include Industrial Hydraulics, Electric Drives and Controls,
Linear Motion and Assembly Technologies, Pneumatics, Service
Automation and Mobile Hydraulics. Bosch Rexroth, The Drive & Control
Company, offers comprehensive solutions for drives and motion control in
80 countries around the world.



Please direct Reader Inquiries to:
Drew Baker
Account Coordinator - Lead Management Services
TRITECH MARKETING, LLC
681 Commerce Street
Burr Ridge, IL 60527
Voice- 630-654-0170 ext. 130
Fax- 630-654-030
dbaker@tritechnet.com

Bosch Rexroth Corporation







FOOD-GRADE SUCTION CUPS
METAL-DETECTABLE AND STANDARD VERSIONS

A full range of food-grade suction cups that are especially made for handling breads, cakes, rolls, pizza shells, pies and similar items are being introduced by Anver Corporation of Hudson, Massachusetts.

Anver Food-Grade Silicone Suction Cups are now offered in metal-detectable and standard versions for depanning and handling a wide variety of baked goods and similar food products. Suitable for use directly at the exit point of baking ovens, they are rated for temperatures up to 600°F (316°C).

Available in a wide variety of round and rectangular bellows shapes and sizes, Anver Food-Grade Silicone Suction Cups come in six round sizes from 0.98" to 2.36" I.D., with bellows up to 2.72" H, and in rectangular sizes from 3.15" L by 0.87" W to 1.57" W, with bellows from 0.59" to l.30".

Anver Food-Grade Silicone Suction Cups are priced from $0.80 to $12.00 ea., depending upon version. Samples and literature are available on request.

For more information contact:

Anver Corporation
Mark Laycox, Group Manager
36 Parmenter Rd.
Hudson, MA 01749
(800) 654-3500 FAX (978) 568-1570
e-mail: anver@anver.com

www.anver.com



Linear Motion Systems Offer High
Rigidity And High Payload Capability

SCHUNK,Inc. has introduced a new linear motion
device LIRAX SSP specially designed to minimize
space requirements by combining a precision guide rail, a pneumatic cylinder with integrated air and electrical feed though. The combination results in a system with extremely high positioning accuracies, high force capability and reliable operation. These linear motion systems are ideal for gantry-type, pick and place applications.

The LIRAX systems operate telescopically, pneumatically
actuated and capable of handling loads up to 50Kg(100lbs).
The guide rail is specifically designed to provide high rigidity �
up to 60Nm(45lbf.ft). The piston is optimized and can produce
traverse forces up to 720N (160lbf) to handle heavy payloads.

The housing of the unit is made of extruded aluminum to
reduce weight, allowing for increased traverse speed.
Integrated hydraulic shock absorbers ensure fluid end
positioning, payload stability and positioning accuracy. Three
bore sizes are available from 18 mm to 40 mm with various
strokes up to 600 mm. The stroke is adjustable throughout
the range. Integrated sensors provide constant monitoring.

The internal air and electrical feed though further enhance
reliability, overall size and packaging. End mounted tooling is
powered with the 4 fold air feed through. Sensing for the tooling
is easily connected with 12 pole electrical feed through. This
feature additionally reduces cost at installation by simplifying air
and cable routing.

Combined with other SCHUNK automation components the
LIRAX SSP provides an extremely compact, highly robust,
reliable system with the best overall value possible.

SCHUNK INC.
211 Kitty Hawk Drive
Morrisville, North Carolina 27560
Phone: 919.572.2705 or
800.772.4865
Fax: 919.572.2818
www.schunk-usa.com
info@schunk.com





Hingham,MA,—PIAB, a manufacturer of industrial vacuum products for over 30
years, showcases its Vacuum Gripper System (VGS�3010) at Assembly Technology
Expo in Rosemont, IL. The VGS 3010 is an
expansion to PIAB's COAX� technology and makes for more efficient material
handling in decentralized vacuum systems.

The VGS 3010 features a suction cup and an efficient multi-stage air driven vacuum
pump integrated in a single unit, called a "Gripper." This avoids the problems
inherent to traditional vacuum systems with a centrally located vacuum pump. A
traditional vacuum system installation takes into account possible pressure loss. The
VGS 3010 avoids this problem of pressure loss because the pump and suction cup are
integrated. The VGS 3010 can even function at operating pressures below 45 psi. This
increases reliability in case of a breakdown in the air pressure network.

The suction cups are made from specially developed polyurethane named
DURAFLEX�. These suction cups adhere to many surfaces and can grip both porous,
leaky materials, such as corrugated as well as coarse and curved surfaces. The suction
cups in the Vacuum Gripper System are available in sizes from 1.5" to 4.5"diameters.

The Vacuum Gripper System is modularly constructed and the suction cups (with
molded fittings) are easily replaceable.

In case of rapid movement, transverse loads arise that can break loose suction cups.
Traditional vacuum systems are often equipped with extra suction cups to compensate
for this loss of vacuum, which increases system cost and energy expenditure. PIAB's
new concept features an accessory called a "Stabilizer" that can be fitted around the
suction cup for support during lifts. This prevents the suction cup from coming loose,
thereby retaining lifting force. The "Stabilizer" also helps hard-to-handle objects with
vacuum.

PIAB Vacuum Products
55 Accord Park Drive
Rockland, MA 02370
Phone 800-321-7422/781-792-0003
Fax 781-792-0574
www.piab.com or info@piab.com



The Pancake� II Direct Interchange Air Cylinders.
Innovation:
For over 40 years our famous Pancakes� have dominated as the world's first compact air cylinder line. Today, backed by decades of engineering and manufacturing innovation, our new Pancake II composite body air cylinders continue in the pancake tradition with a wide selection of models and options.

Packed with value:
Stainless steel tie bolts and aluminum spacers lock precision machined heads tightly around a unique, high strength, composite cylinder barrel. The barrel's extremely smooth, self-lubricating interior surface insures highly reliable performance and extended seal life. Its high impact resistance reduces chances of cylinder failure due to dings or dents. Zero slip-stick avoids problems that metal cylinders encounter when the sit in a static condition for extended periods of time. Combined with hard chrome plated stainless steel piston rods and a unique, nonmetallic rod bearing, the new Fabco-Air cylinder assembly assures optimal operation and longer product life.

Fabco-Air, Inc.
3716 NE 49th Ave.
Gainesville, FL 32609-1699
Phone: (352) 373-3578
Fax: (352) 375-8024

For more information click here


Balluff Introduces Lifetime Warranty on Entire Pneumatic Cylinder Sensor Line

Due to the reliability and robustness of its
magnetoresistive technology, Balluff has extended lifetime warranty coverage to its entire BMP cylinder sensor product line, designed to handle virtually any pneumatic end-of-stroke application.


"Magnetoresistive technology is inherently more suited for rugged factory applications than older Hall Effect or reed switch-based sensors," comments Balluff Product Manager Henry Menke. "Our magnetoresistive BMP line is a great
improvement over unprotected Hall Effect sensors and wear-prone mechanical reed switches. In fact, it's difficult to damage our BMF sensors electronically in normal hard
use, because their outputs are protected against short circuits, polarity reversal, and transient spikes. That's why we're offering a lifetime warranty for every BMF cylinder
sensor we make."


Compared to Hall Effect and reed switch technology, magnetoresistive technology is
more sensitive - therefore, more accurate. Magnetoresistive technology's speed,
temperature stability, and noise immunity characteristics are superior. Moreover, sensors
using it can operate with magnets installed either parallel or perpendicular to their axis.
The Balluff BMP sensor family consists of six sensor designs, a full line of
accompanying bracketry, and associated cables and connectors. Now, customers can
benefit from a single source supply chain solution that provides not only the sensor best
suited for the application, but also the cost and efficiency benefits inherent in the most
robust cylinder-related sensing technology. Balluff is the world leader in the use of
magnetoresistive technology for cylinder sensors.

Magnetoresistive Background

Pneumatic cylinders are typically made of aluminum, so magnetic field sensors
indicate end-of-stroke from outside the cylinder tube using a magnet installed internally
on the piston during cylinder manufacture. This magnet allows an externally mounted
magnetic field sensor to detect the motion of the piston. Magnetoresistive benefits
include high repeatability, low hysteresis, and universal compatibility with reed and Hall
Effect magnets.


Balluff s BMF magnetoresistive family has six versions that provide all the
performance capability and mounting flexibility the cylinder industry needs. The sensor
family includes the BMF 103, optimized for ultra compact short stroke cylinders; the
BMF 303, designed to flush mount in narrow channels; the BMF 305 designed to use a
wide selection of interchangeable brackets to fit virtually any cylinder type; the BMF 307
designed for quick flush mounting in T-channels; the BMF 21, optimized for tie rod
installations; and the BMF 32, designed for installations requiring heavy duty operating
characteristics.


Cylinder mounting configurations that Balluff BMF sensors easily handle include T-
slots, C-slots, all types of round mounting systems, duo-rail, trapezoidal rails, and
dovetail slots. Each BMF sensor includes connector choices and output options to meet
any customer requirement.

For more information, contact Henry Menke, Product Line Manager, Balluff Inc.,
8125 Holton Drive, Florence, KY 41042. Phone: 800-543-8390. Fax: 859-727-7752.
www.balluff.com.



New Narrow Profile Miniature Slide

The NPA, Narrow Profile Air Table, expands the breadth of Bimba's miniature guided slide family. A recirculating ball rail mounted above the cylinder bore provides precise load guiding. It is available in three bore sizes: 12mm, 20mm, and 32mm. Standard features include: anodized aluminum external components, stroke lengths to 120mm, and two bearing options. The standard model includes a single bearing block carrier, with an optional second block added for higher loads and reduced endplay.

For more information, contact W. Kokum (kokumw@bimba.com), Bimba Manufacturing Company, P.O. Box 68, Monee, Illinois 60449. Phone 708/534-8544, FAX 708/235-2014, Technical Assistance 800-44-BIMBA, website www.bimba.com







Rexroth Announces Two New Series of Pneumatic Rotary Actuators

The Rexroth RAN Series and RAP Series of pneumatic rotary actuators provide highly compact, space-saving designs.

Employing a vane-type principle, the RAN Series offers high torque within a small dimension, plus multiple front and side mount options for greater flexibility. Other features include a protective inner surface finish, formed seals and oil-infused metal bearings, producing a long-life, non-lubricated product. The RAN Series comprises five sizes with torques ranging from 0.16 Nm to 7 Nm and a maximum turning of 270 degrees.

If a 360-degree swing is required, the rack and pinion type, or RAP Series, is recommended. Its double-rack operating principle achieves a backlash-free, non-leak design. The RAP Series is available with single and double shafts and all stainless steel for severe environments.

With optional sensors both actuators can be used in a wide spectrum of applications, including workstations in small handling facilities.



Please Direct Reader Inquiries To:
George Petrides
Account Coordinator - Lead Management Services
TRITECH MARKETING, LLC
681 Commerce Street
Burr Ridge, IL 60527
Voice- 630-654-0170 ext. 143
Fax- 630-654-030
gpetrides@tritechnet.com

Bosch Rexroth Corporation





New Pre-Assembled Modular Guarding System
Saves Time & Money


(Crystal Lake, IL): FRAME-WORLD, a leading manufacturer of aluminum extrusions and accessories, is pleased to announce the introduction of FastFrames, a new line of completely pre-assembled panel and door modules.

The FastFrames guarding system requires no engineering, CAD drawings, cutting or welding. Instead of assembling extrusions and hundreds of connectors, gussets, brackets, etc., FastFrames modules just bolt together in minutes.

Each FastFrames panel or door is made of heavy-duty 1.5" x 1.5" anodized aluminum extrusions, with clear Lexan or wire mesh inserts. They are available in a variety of sizes and configurations.

Al Mueller, President of FRAME-WORLD, stresses the huge time savings the revolutionary new FastFrames modules will provide. Entire machine guards, enclosures or robot perimeter guards can now be installed in minutes instead of many hours or days. (Example: a 4-sided, 14' x 16' x 6' perimeter guard with 2 doors can be assembled in 39 minutes using FastFrames; 9 to10 hours using traditional extrusions or 12 to14 hours welding a steel frame.)

FastFrames modules can be used for a wide range of applications, including:
Test fixtures Work stations
Assembly stations Enclosures
Robot perimeter guards Tool cribs
Racks/shelving/storage Noise-reduction cells
Machine vision guards Nigh-security area fencing

For more information and other FastFrames modules, please contact FRAME-WORLD at 815-477-2599 or at www.frame-world.com.




Automatic Counterbalance Pressure Controller

Counterbalance systems on stamping presses, when set to the proper pressure, can greatly extend the life of press components. Maintaining the proper pressure in manually set systems can prove to be laborious and time consuming. The new Automatic Counterbalance Pressure Controller from ROSS CONTROLS is easy to install, secure, and automatically corrects over- and under-pressure conditions that occur with everyday press operations.


The Automatic Counterbalance Pressure Controller from ROSS CONTROLS is a pre-programmed, 2-channel counterbalance pressure controller for stamping presses. Two channels (expandable to 4) allow for user selectable mix and match functions such as inner and outer counterbalance, dual cushions, counterbalance and overload, or counterbalance and cushion. The controller utilizes user definable settings with two layers of password protection and can store die information (pressure settings) for up to 75 dies. Mounted in a NEMA 12 enclosure (16� x 14� x 8� deep), the Automatic Pressure Controller’s multi-language user interface includes a 2-line LCD display and dust resistant touch pad. The enclosure includes power switch with light, fault light, TDC (top dead center) input interface relay, and fused outputs. This new controller operates on 120 or 240 volt (50/60 Hz) or 24 volt d.c. power and includes an internal d.c. power supply for valve controls and pressure transducer.


The Automatic Pressure Controller integrates seamlessly with ROSS� counterbalance control valve packages, but works with other counterbalance systems as well.


For more information or a free brochure about the Automatic Counterbalance Pressure Controller, contact:


ROSS Controls

Customer Service

800-438-7677 (in the U.S.) or 706-356-3708 (outside the U.S.)

E-mail: custsvc@rosscontrols.com







Hargraves Technology Announces the Release of the EZ Mount SM


(Mooresville, NC) October 17, 2003. Hargraves Technology Corporation (Hargraves) announces the release of the EZ Mount today and becomes the first miniature pump company to offer an affordable vibration/isolation mount. As the name implies, the EZ Mount provides a versatile, low profile platform from which to secure the BTC, BTC-II, BTC-IIS, and future pump products. In addition to a top-down or bottom-up mounting option, the silicone-molded feet reduce vibration transfer and thus eliminating noise amplification.

The EZ mount is available in two styles; style A is used for the BTC single and dual head pumps and style B, for accommodating the long-stack motor. Both styles possess a plastic base constructed of ABS/PC material and the silicone-molded feet that can be positioned in any one of three ninety-degree planes. The EZ Mount has a low profile; it adds just slightly more than one-half inch to the pumps height and less than 20 grams in weight.

According to Doug Curtis, Engineering Manager at Hargraves, "the EZ Mount solves mounting issues arising from tight spaces in complex equipment designs. The ability to mount externally or from the top-down reduces the time and complexity of component assembly." Doug considered how engineers might apply this technology and, as a result, built as much flexibility into the mount as possible. "By allowing the silicone-molded feet to rotate on three distinct planes, the possibilities for mounting are endless."

Hargraves strives to produce the best and most reliable miniature pumps in its class. The patented pump head efficiency and long life continues to distinguish the Hargraves name in the miniature diaphragm pump industry.

The EZ mount literature is downloadable at http://www.hartechcorp.com/new.htm and is available for purchase on our e-commerce web site www.hartechcorp.com/store.html. Please contact Hargraves at 704-662-3500 for questions or technical assistance with the EZ Mount.







HIGH-WEAR VACUUM CUPS
ELIMINATE GHOST MARKS, HANDLE HIGH HEAT


A new line of vacuum cups, that are non-marking, handle high heat and are long-lasting for applications such as EOAT tooling in the plastics injection molding industry, is being introduced by ANVER Corporation of Hudson, Massachusetts.

ANVER Nomathane* Vacuum Cups are molded from a proprietary silicone-free, hybrid material that is non-marking and will not leave any residue, mold release agent, or ghost marks on products. Ideal for applications where
products need to be painted after handling, these medium Durometer (50) vacuum cups resist heat up to 356*F and are extremely pliable and wear resistant.

Developed for use on end-of-arm tooling in the plastics injection molding industry, ANVER Nomathane* Vacuum Cups come in flat, single, and multi-bellows shapes in standard 1/8" to 2" O.D. sizes and can be supplied custom up to 5". They are longer lasting than EPDM, neoprene, NBR, nitrile, silicone, TPU polyurethane, Viton*, or vinyl, claims the manufacturer.

ANVER Nomathane* Vacuum Cups are priced similar to other premium urethanes. Samples and literature are available upon request.

For more information contact:

Anver Corporation
Mark Laycox, Group Manager
36 Parmenter Rd.
Hudson, MA 01749
(800) 654-3500 FAX (978) 568-1570
e-mail: anver@anver.com

www.anver.com




SCHUNK introduces a new series rotary actuator SRU,
employing both high load capacities and many new
technological advances.

The advances start with innovative piston guidance using
sleeves in the optimized aluminum housing. The radial
clamped end stop adjustments allow easily accessed and
fully adjustable rotation angles from 0 to 180 degrees.
The housing is not only light it has mounting patterns on
both the bottom and side for easy implementation.
The revolutionary locked intermediate position is a
highlight new feature. An internal mechanical ball locking
mechanism provides rigid center position locking and
center position dampening just like the end positions.
The standard hydraulic shock absorbers assure smooth,
fast and accurate positioning.
Bore sizes ranging from diameter 20mm to 60mm and
are available both single and double powered to produce
torques from 1.5Nm to 72Nm. Popular features like air
feed through, inductive and magnetic position sensing
and flexible center bores were maintained from well accepted
predecessor OSE.
From the size and torque options to the locked,
dampened center position to the well known features
SCHUNK pioneered with previous rotary actuators, the
SRU is the state of the art in modern rotary actuation.
SCHUNK quality, innovation and durability no need to
compromise on your next rotary actuator application

SCHUNK INC.
211 Kitty Hawk Drive
Morrisville, North Carolina 27560
Phone: 919.572.2705 or
800.772.4865
Fax: 919.572.2818
www.schunk-usa.com
info@schunk.com




Fairchild Industrial Products Company's TCX I7800 Explosion-proof I/P transducer is now CSA approved for applications using natural gas (and all Group D gasses) as a supply media. This approval, along with it's no copper-based metals construction and tapped exhaust port, makes the TCXI7800 ideally suited to gas distribution and transmission applications.

The approval classification is as follows:
Explosion-proof Area Classification:
Maximum Supply Pressure: 75psig
Supply Pressure Media: Group D gasses including Natural Gas,
Methane ( Industrial - includes up to
15% hydrogen by volume). IEC 79-0 lists
additional gasses.
Class I, Division 1, Groups C & D
Class II, Division 1, Groups E, F, and G
Class I, Division 2, Groups A, B, C & D

This approved unit will include the addition of a factory installed conduit fitting with potted 10- foot signal leads. The user must use the tapped exhaust option (E), and should ensure the installation meets all requirements set forth in the Canadian Electrical Code (CEC) for explosion-proof environments.

To order CSA natural gas approved units, specify TCXI7800-4XX plus "E" for tapped exhaust and "N" for natural gas.

For more information about the TCX I7800 and other transducers in our product line, visit our
web site at www.fairchildproducts.com or contact Fairchild Industrial Products Co., 3920 West
Point Blvd., Winston-Salem, NC 27103, USA. Tel: (336) 659-3400, Fax: (336) 659-9323





Pneumatic rodless cylinder from Norgren combines quality with space savings

Littleton, Colorado, USA � August 2003. As more and more OEM’s are faced with the need to reduce the size of their machines, so the pressure on component and sub systems providers to offer space saving product is increased. In response to this pressure Norgren offers a range of pneumatic rodless cylinders. Ideal for use in applications where space is at a premium, the cylinders can be incorporated into a wealth of machine designs within such sectors as the electronics, packaging and printing industries.

Based on proven Lintra LITE technology the series of rodless cylinders is designed for markets where high quality needs to be combined with competitive pricing. Benefiting from an integral switch mounting the range of rodless cylinders is aesthetically pleasing and features fully machined anodized end covers with mounting holes.

Featuring a proven sealing system that prevents the loss of air and guards against the ingress of dust, the Lintra range of rodless cylinders is available with adjustable cushioning as standard. The double acting rodless cylinders can be specified in three diameters namely 25, 32 and 40mm with a maximum bore stroke of 5000 mm, while longer strokes are available on request.
Further information on this new range can be found at www.norgren.com





INTRODUCING "F" Series Cylinders  Stainless Steel Body, Non-repairable air cylinders


"F" Series Cylinders are directly interchangeable
model for model, bore for bore, stroke for stroke!

Get all the models:
Double Acting
D/A Hollow Rod
Single Acting Push
Single Acting Pull
Magnetic Piston
Air Cushion
Multi-Position
Position Feedback
Hole Punch
Delrin Corrosion Resistant

All 12 Bores:
5/16" thru 3"
All the Mounts:
Nose Mount
Rear Pivot
Block Front
Trunnion Mount
All the Options:
Over 100 to choose from.
and 24 Hour Delivery!

Fabco-Air, Inc.
3716 NE 49th Ave.
Gainesville, FL 32609-1699
Phone: (352) 373-3578
Fax: (352) 375-8024

For more information click here


Deluxe Blow Gun Kit from Coilhose

Coilhose's Deluxe Blow Gun Kit offers the serious users our best-selling 771 Series Blow Gun along with a variety of tips for virtually every application. The kit also comes complete with a connector, so that it's ready to use right out of the box. Our Blow Gun Kit is durable and compact for easy storage in a work area or a toolbox. Its contents also lock into place to ensure that they remain stationary and undamaged when not in use.

For more information please contact Coilhose





The KV valve range just got more Aggressive !


Unlike conventional pneumatic spool valves that do not lend themselves to
dusty, humid environments and become easily contaminated and damaged, KV’s
new poppet valves have been specifically designed to operate in such
aggressive conditions.

Termed “The Rhino� series for their durability and performance under the
harshest working conditions, the Rhino is available
as air or solenoid actuated with 3/2 and 5/2 versions having G1/8� and G¼”
inputs, and for body porting or manifold mounting.

The valves are also available with a 2 to 6 station manifold option and are
supplied complete with valve mounting screws and seals.

Interchangeability with another leading poppet valve on the market is an
additional benefit of the new range.

The Rhino’s durability and performance is achieved through its rugged metal
construction and the use of a seating poppet principle which provides the
valve with few moving parts resulting in the benefits of low stiction and
low wear thus prolonging product life.

The Rhino valve operates with a filtration level of just 100µm compared to a
normal spool valve requiring a 40µm filtration level and, in keeping with
the majority of other KV products, operates on unlubricated air.

Typical industries that would benefit from KV’s Rhino series of valves
include cement, fertilizer, flour, woodworking and ceramics, and also any
process which has high dust or particles in the air supply or where the
moisture level is high.

For details of this or any of our products, please contact our sales office
direct on 01908 561515 or email sales@Kvautomation.co.uk or visit our
website www.kvglobal.com




PHD Releases NEW Heavy Duty Lifter

PHD announces the release of their NEW Series PHL Heavy Lifters. Series PHL Lifters are ideal for automated, high load part lifting applications and are available in one working day. Units are available in six stroke lengths (50, 80, 100, 125, 160, & 200 mm) and are powered by a 63 mm ISO/VDMA cylinder.

Some benefits include:

� Simple design, compact size, long life, and the ability to handle high off-center loads make this lifter ideal for lifting panels out of dies.
� 63 mm ISO/VDMA cylinder is standard with adjustable cushions (reducing shock to unit) and magnetic piston for switches to provide end of stroke signal to controllers.
� Built-in rod compliance eliminates side load on cylinder piston rod thus increasing cylinder life.
� Composite bearings with internal lubrication for long life.
� Available with optional shock pads and stop collars for customer flexibility.
� Fully field repairable in just 10 minutes, using metric hex wrenches.
� Replaceable bearings eliminate costly lifter replacement.
� Low cost of ownership
� 24 hour delivery

For more information, send for a free catalog today or visit our web site at www.phdinc.com/phl. For immediate assistance, call PHD, Inc. at (800) 624-8511.

PHD, Inc., P.O. Box 9070, Fort Wayne, IN 46899
(260) 747-6151; FAX (260) 747-6754

www.phdinc.com
phdinfo@phdinc.com



New CTS Micro Pump by Hargraves Technology!

Spurred on by a leading Fortune 100 medical system corporation, Hargraves has improved pump head efficiency for micro vacuum pumps and compressors. This medical company presented a design challenge, in both size and performance, which other miniature pump manufacturers viewed as unachievable. By applying more efficient motor and pump-head technology, this enabled them to successfully launch their blood analysis system program and exceed their former power consumption threshold by more than 100%!

The former example demonstrates Hargraves Technology’s approach to customer-driven requirements. This process includes out-of-the-box thinking, rigorous product quality and reliability, aggressive price targets, and low to high volume demand. Challenge us today at www.hartechcorp.com by completing an application data form online.


The CTS pump is offered with a brush, coreless, or brushless motor. The CTS pump flows up to 2.5 LPM unrestricted flow, pressure service to 24 psig, and vacuum service to 20 in HG. Contact Hargraves at 704-662-3500 and ask for technical assistance.





New Remote Access Panels Offer Many New Features

Type FED (Front End Displays) offer a compact operator interface which simplifies access and provides diagnostic capability during machine startup and operation. These fully functional flexible units can also provide an intelligent solution for interacting with Festo IPC FEC Compact and Standard Controllers, IPC PS1 Professional Industrial PCs and Festo Smart Pneumatic Valve/Sensor Manifolds.

These remote access panels offer a compact design with many built-in features geared toward simplifying and improving on-line machine operations. Standard features for both models include a high visibility monochrome LCD graphical display with LED backlighting, selectable modes of operation (configuration/operation), tactile keyboard, rugged construction for use in tough industrial environments and easy programming with the FED Designer software.

The FED Designer software offers a user-friendly, WindowsTM interface. One or more display pages can be created that outline and control your applications. Using the multiple page capability of each panel, any application can be broken down into as many pages as required (depending on the target system memory). The FED Designer *.dpr file format contains all the information needed to display your page images and controller data values in the formats you selected, while creating your project file. The panel hardware handles all of the underlying communications necessary to transfer data to and from the controller. Completed projects can be uploaded from the panel directly.

FED-90 Features:

� 4-line x 20 character display
� 12 function keys
� 23 system keys (including 10-key pad)
� 512 KB of user memory
� Variable character height, scalable fonts
� 256 user defined characters, downloadable
� 8 level password protection
� 1024 alarms
� 16 KB recipe memory
� 256 event list
� Real-time clock with battery backup
� Serial interface (PC/Printer port) and a separate PLC port
� Optional Fieldbus connection (Ethernet) via plug-in auxiliary module
� Dimensions: 6.89" height x 5.53"width x 2.83" top [176 mm x 141 mm x 65 mm]
� Operates on 18-30 VDC
� Protection class IP65
� Compliant with CE requirements


FED-50 Features:

� 4-line x 20 character display
� 4 function keys
� 7 system keys
� 512 KB of user memory
� Variable character height, scalable fonts
� 256 user defined characters, downloadable
� 8 level password protection
� 1024 alarms
� 16 KB recipe memory
� 256 event list
� Real-time clock with battery backup
� Serial interface (PLC/ PC interface)
� Optional Fieldbus connection (Ethernet) via plug-in auxiliary module
� Dimensions: 4.29"height x 5.86"width x 2.83" top [109 mm x 149 mm x 65 mm]
� Operates on 18-30 VDC
� Protection class IP65
� Compliant with CE requirements


Festo Your Partner for Industrial Automation

As a privately held, financially strong company in business for over 75 years, Festo has the resources and application experience necessary to work with you as a long term partner to provide cost-effective automation solutions for industrial applications.

Festo offers state-of-art automation technology that offers the speed, accuracy and reliability required in today's manufacturing environments. As an ISO 9001 certified company Festo's Corporate Mission is to enhance the business success of our customers by providing innovative products and services, including: components, and custom engineered control and handling systems. For more information on our products and services please visit the "What's New" section of our website or contact a local Festo Sales Office by calling 1-800-99-Festo.

For Further Information Contact:
Festo Corporation
395 Moreland Road
PO Box 18023
Hauppauge, NY 11788
Tel: 631-435-0800
Fax: 631-435-8026

www.festo-usa.com


ROSS Controls� introduces the SELECT 4400 series of pneumatic valves for high-pressure air that solve many of the problems unique to the PET stretch-blow molding industry as well as a myriad of other applications.

Utilizing a patented design for internal components and flow areas, ROSS has created a series of valves that can provide pre-blow air pressure, controlled flow of pre-blow air, select capability between low-pressure pre-blow air and high-pressure final-blow air, plus a check function that prevents high-pressure flow upstream into the low-pressure air supply.

Sound too specialized for your application? Although these valves were originally developed to meet the special high-pressure needs of the plastics industry, the individual valves are available in several common functions such as 3/2 normally closed (Primary valves), Pressure Selectors, 2/2 normally closed, 2/2 normally open. All are base mounted for ease of maintenance.

SELECT 4400 units are available in port sizes of G ¾” and G 1�. Maximum operating pressure is 600 PSIG (40 bar).

For more information or for a free brochure about the SELECT 4400 valves or how ROSS can help with your high-pressure PET needs, contact:

ROSS Controls
Customer Service
800-438-7677 (in the U.S.) or 706-356-3708 (outside the U.S.)
E-mail: custsvc@rosscontrols.com
Internet: www.rosscontrols.com




Norgren’s Mini ISO series pneumatic valves offer compact design combined with high performance.

Littleton, Colorado, USA � July 2003. Combining a compact design with high performance the V40 and V41 series of mini ISO valves from Norgren are ideal for use in applications where the flow of compressed air has to be directed to system components such as actuators contained within pneumatic circuits. Featuring high flow rates, the valves can be included in most modern machine designs for industries such as the printing, packaging, automotive and electronics sectors.

Mounted on a flexible sub base system the valves are available in a number of functions namely 5/2, 5/3 and 2x3/2 and can be configured to suit many different customer requirements. Featuring dual spool technology, V40 glandless spool and sleeve and V41 softseal spool, both series can be delivered in solenoid pilot or air pilot actuated formats and can be easily converted from internal to external pilot supply.

www.norgren.com





Fabco introduces NFPA Air Cylinders

Fully Interchangeable
7 Bore Sizes to choose from
Strokes up to 48" maximum
Loaded with standard features
Many options to choose from
The same high quality you have come to expect from Fabco-Air

Get all the Models & Mounts:
Basic Cylinder
Double Rod
3 Rod End Styles
Head Rectangular Flange
Cap Rectangular Flange
Fixed Clevis and Eye Mounts
Detachable Clevis and Eye Mounts
Extended Tie Rods
Cap Extended Tie Rods
Head Extended Tie Rods
Head Trunnion
Mid Trunnion
Cap Trunnion
Sleeve Nut Mount
Angle Mount
Side Lug
Bottom Tap

Fabco-Air, Inc.
3716 NE 49th Ave.
Gainesville, FL 32609-1699
Phone: (352) 373-3578
Fax: (352) 375-8024

For more information click here




New Stronger and Longer Travel O-Ring
Gripper From The Innovators at Techno-Sommer


New Hyde Park, NY -- The new GS1015 O-ring gripper from Techno-Sommer provides more of everything needed to do the largest, heaviest o-ring placement applications. The new model has 10 expanding jaws with 12mm stroke each, providing a more uniform spread of the o-ring requiring less overall expansion to get it over the part. The ejector now has 15 mm stroke to push off o-rings. And, most important of all, the piston diameter has been increased to 75mm as compared to the 25mm on the GS65, to provide over 5 times more expansion force to expand even the toughest o-ring.


Some other features of the new design make it even more suited for the toughest applications. The expander jaws travel within t-slot guides throughout their entire length of stroke to provide exceptional resistance to any side loads.

The only small things about this new product are its price and size. The unit is only 100mm in diameter and the expanders travel entirely within the body diameter. For all the new and improved features that have been added to this unit, the price has also been kept small, especially compared to custom designed models.

Techno-Sommer Automatic, 2101 Jericho Turnpike, Box 5416,  New Hyde Park, New York 11042-5416. Phone: 516-328-3970. Fax: 516-358-2576. Web: http://www.techno-sommer.com



Flexeel�

Flexeel�, the original, lightweight polyurethane reinforced hose is extremely tough and retains its flexibility even in cold environments. Its reinforced design eliminates the possible separation of layers due to constant expansion and contraction during pulsating operations, such as with staple or nail guns. Flexeel is an excellent alternative to much bulkier, marring rubber and plastic hoses
.



Coilhose Pneumatics
East: 19 Kimberly Road, East Brunswick, NJ 08816
(732) 390-8480  Fax: (732) 390-9693

West: 1730 NE Miller Street, McMinnville, Oregon 97128
(503) 434-5964  Fax: (503) 472-1989

Coilhose





NEW Rodless Rail Slide Features
Enclosed Precision Bearing System


PHD announces the release of its NEW Series SFP Slide. The rail bearing technology of the slide provides smooth, precise linear motion within confined spaces. These space saving slides are available in two bore sizes (27 mm & 40 mm) with travel lengths up to 3400 mm in 25 mm increments and provide the lowest deflection and highest moment capacity combination in the industry.

The Series SFP Slide features a stainless steel outer band and saddle scraper seal to enclose the bearing system and continuously protect the unit's internal mechanisms from contaminants. The slide's body incorporates side switch slots for convenient mounting of PHD's Series 6790 4 mm Reed and Solid State Switches.

Other standard design features include adjustable cushions for smooth deceleration at end of travel, two standard port locations on end and side of each cap, and two precision fit dowel holes. Series SFP Slides are conveniently designed to interface directly with PHD Series STP and Series SK/SL Slides eliminating the need for transition plates. The saddle is easily removed to allow for custom machining.

Optional hydraulic shock absorbers are also available to provide maximum deceleration control and load stopping capability for heavy loads at higher velocities.

For more information, send for a free catalog today. For immediate assistance, call PHD, Inc. at 1-800-624-8511 or visit our web site at www.phdinc.com.

PHD, Inc., P.O. Box 9070, Fort Wayne, IN 46899
(260) 747-6151; FAX (260) 747-6754

www.phdinc.com
phdinfo@phdinc.com





PIAB Vacuum Products, suppliers of compact, maintenance-free vacuum pumps and accessories, announces the launch of a new line of modular automation tooling.

PIAB's Modular Automation Tooling (PMAT) allows you to construct vacuum end effector tools to meet your exact needs with minimal design time. The tooling system, which is made of mostly hard-coat anodized aluminum, is lightweight and easy to assemble on-site without welding or use of special tools.

The PMAT system can be used to construct end effector tools for use on any automation equipment needs you may have.

The tooling consists of a swivel arm assembly with a choice of various functional attachments that includes a vacuum pump. The air-driven vacuum pump provides both vacuum pressure through COAX technology and a connection for blow-off pressure and can be equipped with a check valve feature called VacTrap�.

COAX is a new and improved design based on PIAB's innovative multi-stage concept for creating vacuum with compressed air. The result is a smaller, more efficient, more reliable and highly flexible technology that allows you to design a modular system.
VacTrap� is a vacuum innovation that "traps" vacuum pressure for an indefinite period in a leak-free system. This feature allows parts to be handled safely in case of a system interruption or failure.

PIAB Vacuum Products
55 Accord Park Drive
Rockland, MA 02370
Phone 800-321-7422/781-792-0003
Fax 781-792-0574
www.piab.com or info@piab.com


Fairchild Industrial Products Company has added DeviceNet communications to the T7950 Series I/P, E/P transducer. This makes a powerful, flexible, cost effective combination that includes all the advantages and features of the T7950 I/P, E/P Transducer and utilizes DeviceNet communications capabilities.

The T7950 is a state-of-the-art transducer with advanced features such as:
� A closed loop, integrated microprocessor-based electronic control system that regulates outlet pressure
� Fully functional keypad and backlit liquid crystal display
� User adjustable PID tuning coefficients
� RFI/EMI protection
� Output ranges of 3-15, 3-27, 6-30, 0-30, 0-60, and 0-120psig
� No air consumption within deadband range
� Flexible in-line, Bracket or DIN Rail mounting
� High density manifold mounting.

DeviceNet is a low-cost communications link used to connect industrial devices including limit switches, valve manifolds, temperature transmitters, pressure transmitters and operator interfaces to a network.

The advantages of DeviceNet are:
� Low cost method of connecting multiple devices on a network
� Established protocol with wide span of vendor support
� Easy to install, use and maintain
� Reduces volume and cost of installation wiring
� Remote configuration and querying of individual devices
� Remove or replace devices without interrupting network power
� System and device level diagnostic capabilities.

When the T7950 is used with DeviceNet, the user will have an intelligent, full-function device that will be cost effective addition to a control system network.

For more information, contact Fairchild Industrial Products Co., 3920 West Point Blvd., Winston-Salem, NC 27103 USA. Tel: (336) 659-3400 Fax: (336) 659-9323
Email: sales@fairchildproducts.com Web: www.fairchildproducts.com




MINIATURE SUCTION CUPS
HANDLE DELICATE PARTS WITHOUT DAMAGE


A full line of miniature vacuum suction cups for end-of-arm tooling (EOAT) in robotic and automation systems where gentle attach and release is critical is available from ANVER Corporation of Hudson, Massachusetts.

ANVER EOAT Vacuum Suction Cups feature flat and single- or multiple
bellow styles molded from a wide range of materials including non-marring silicone, anti-static compounds, NBR, nitrile, neoprene, natural gum rubber, vinyl, and urethane. Developed for handling delicate parts without damage, they are available in over 40 standard versions in sizes from 0.08 in.
(2 mm) dia. up.

Suitable for use with push-in, flanged, and barbed fittings, ANVER EOAT Vacuum Suction Cups can be formulated to meet specific vacuum manipulation requirements. For example, the non-marring silicone cups are molded from a clear, translucent FDA-approved compound that contains no dyes that can leach out at high (600°F [316°C]) temperatures.

ANVER EOAT Vacuum Suction Cups are priced from $0.80 ea., depending upon material, size, and quantity. Free samples, price quotations, and literature are available upon request.

For more information contact:

Anver Corporation
Mark Laycox, Group Manager
36 Parmenter Rd.
Hudson, MA 01749
(800) 654-3500 FAX (978) 568-1570
e-mail: anver@anver.com

www.anver.com





New Innovative Inline Valves

The unrivaled V60-62 Series valves from Norgren are the most comprehensive Inline valve range with 3/2, 5/2, 5/3, and 2 x 3/2 functions. The new twin solenoid (double solenoid located on one side) eliminates 50% of the electrical connector costs and offers the highest flow for the equivalent valve size in the industry.

The V60 Series offers the highest flow, is priced competitively, and is durability-rated for 50 million cycles under normal operating conditions.

www.norgren.com




Rexroth Ceram� Pneumatic Valves Add Serial Link Connectivity


The Ceram� valve product offering has been expanded to include serial link connectivity via contact bridges, allowing use of the extensive Rexroth serial link options.

Bosch Rexroth recently expanded its Ceram pneumatic 4-way directional control valve line with the addition of serial link connectivity. Contact bridges mounted on the solenoid coils provide a direct connection to Rexroth serial link components. This allows the Ceram to be controlled by all major protocols, and reduces wiring and troubleshooting time.

Available in ISO sizes 1 through 4, the Ceram valve utilizes ceramic plates for sealing. Long regarded as the industry standard, the Ceram valve is the valve of choice for rugged conditions or dirty air, and is a valve that will not stick.

Bosch Rexroth Corporation, a merger of Bosch Automation Technology and Rexroth, is a wholly owned subsidiary of Robert Bosch GmbH. In the year 2001 the separate companies had total revenues of approximately $3.42 billion (3.88 billion Euros) and a worldwide total of around 26,000 employees. In the Americas, Bosch Rexroth had total revenues of $710 million and 3,146 employees in 2001.

Business units include Industrial Hydraulics, Electric Drives and Controls, Linear Motion and Assembly Technologies, Pneumatics, Service Automation and Mobile Hydraulics. Bosch Rexroth � The Drive & Control Company � offers comprehensive solutions for drives and motion control in 80 countries around the world.

Please Direct Reader Inquiries To:

John Bridges
Bosch Rexroth Corporation
Pneumatics
1953 Mercer Road
Lexington, KY 40511-1021
Telephone (859) 254-8031
Fax (859) 281-3491
john.bridges@boschrexroth-us.com









Indianapolis, Indiana - SMC Corporation of America, the world’s largest manufacturer of pneumatic automation products has announced the release of the Series SV solenoid valve designed for electronic and general machinery manufacturers.

The SV valve series features a modular design that allows modification of manifold stations by simply snapping them together. The design of pneumatic and electrical connections of the manifold provides a “Plug and Play� concept for building the manifolds.

Rated IP65 and CE compliant, the SV valves are offered in both serial interface and parallel wiring configuration. These units are particularly suitable for applications in semiconductor, food processing, automotive and metal working industries.

The SV valves have a life expectancy of 50 million cycles and are offered in four sizes, i.e. SV1000, SV2000, SV3000, and SV4000 with flow capacity ranging from 0.23Cv up to 1.6Cv. Dual 3 port valves in Series SV1000 and SV2000 allow individual control of A and B ports.

“The SV valves are truly plug-and-play. Installation and upgrading are literally a snap with the elimination of the traditional lead wire internal wiring in favor of pin type connectors. Balaji Rao, Senior Product Manager for SMC explains. “By connecting each manifold block with a pin connector, valve stations can be reconfigured simply by plugging and unplugging them.� For stackability, the units are available in two mounting options: a tie-rod configuration or a cassette configuration for use with DIN rails. Up to 20 stations can be stacked together in a block

(18 for the SV1000 Cassette type). “The whole process of installing and modifying these valves is so easy it can be done by someone with little or no technical background� says Rao.

Not only are these valves easy to use and install, but the use of serial interface protocols (also called “field bus technologies�) are quickly becoming the norm in automated plants these days. The SV manifolds come with both centralized and decentralized type Serial units. The EX500 decentralized Gateway/SI unit comes in DeviceNet, Profibus-DP and Remote I/O protocols. The gateway unit controls up to four branches with 32 I/O per branch and is IP65 rated. The EX250, centralized SI unit comes in DeviceNet, Profibus-DP, CC-Link and As-I protocols with 64 I/O.


For more information, please visit www.smcusa.com

SMC Corporation of America,
141 Myford Rd.
Tustin, CA
92780-7020.
Phone (714)-669-0941





Extruded Linear Thruster in Five Bore Sizes

April 1, 2003, Monee, Illinois - The Bimba Extruded Thruster is a rugged, guided actuator with a cylinder integral to the Thruster block. The sleek body incorporates switch mounting, for a clean, space-efficient package.

Three models are offered with nylon or ball bearings. The basic ET model includes four bushings and the guide shafts are extended for moderate loading. The ETS model is a compact version with two bushings and guide shafts that don't extend out the rear of the housing. The ETD model offers the highest load-carrying capabilities in a double-ended version. Five bore sizes: 12mm, 16mm, 20mm, 25mm, and 32mm are offered with seven types of options including shock absorbers. Stroke lengths are available to 10".

For more information, contact W. Kokum (kokumw@bimba.com), Bimba Manufacturing Company, P.O. Box 68, Monee, Illinois 60449. Phone 708/534-8544, FAX 708/235-2014, Technical Assistance 800-44-BIMBA, website www.bimba.com







AIR-POWERED VACUUM STATIONS
SMALL AND VIRTUALLY MAINTENANCE-FREE


A new series of sub-compact, air-powered vacuum stations that are totally self-contained and suitable for a wide range of applications including gas sampling, end of arm tooling, custom jigs, and hold down fixtures is being introduced by ANVER Corporation of Hudson, Massachusetts.

ANVER Mitey-AirVac Air-Powered Vacuum Stations are totally self-contained, employ a powerful Venturi vacuum pump to achieve a 26"Hg (660 mm Hg) vacuum with flow rates from 0.74 to 7.0 scfm (21 to 200 l/min.), and have no moving parts; making them virtually maintenance-free. Featuring an internal check valve to maintain vacuum in case of a power loss and a vacuum gauge, they include ports for either a remote vacuum release switch or a valve to activate blow-off.

Fully integrated and ready to use, ANVER Mitey-AirVac Air-Powered Vacuum Stations can be mounted in any orientation. On a clean, smooth non-porous material, they will hold vacuum per ASME Std. B30.20a-2001 for vacuum holding devices; allowing an operator to put down the load safely. Measuring only 3.31" x 3.66" x 4.11" (84 x 93 x 104 mm) and 2 lbs. (0.9 kg), the MTY-1 model is the smallest complete vacuum station on the market.

ANVER Mitey-AirVac Air-Powered Vacuum Stations are priced from $390.00 (list) complete. Literature is available upon request.

For more information contact:

Anver Corporation
Mark Laycox, Group Manager
36 Parmenter Rd.
Hudson, MA 01749
(800) 654-3500 FAX (978) 568-1570
e-mail: anver@anver.com
www.anver.com



SmartPump from Norgren delivers intelligence and efficiency in one smart package

In modern automated manufacturing environments the need to maintain reliable vacuum between the cup and object under production is paramount. Developed as a fully featured vacuum management tool, SmartPump from Norgren offers the customer built in intelligence for highly reliable vacuum control. This is then combined with the efficient use of compressed air in a single robust compact package making SmartPump the smart choice for modern assembly systems.

Designed for use in applications such as pick and place, packaging/handling, test and general assembly machines SmartPump offers real benefits to various industries such as the electronics, packaging, printing, medical and automotive sectors. With features such as high vacuum flow, low air consumption, intuitive programming interface, intelligent part present and automatic blow off SmartPump has been proven to make manufacturing systems faster, quieter, cleaner, more economical and smarter.

With on board intelligence the SmartPump provides the user with an intuitive interface for the control of the vacuum cups. SmartPump will generate vacuum and will maintain this preset level for as long as the user needs to hold the object. The SmartPump system will only generate the vacuum it needs when it needs to. The intelligent part present facility will automatically switch off the compressed air flow once the preset levels have been achieved and will only switch back on if a system leakage is detected. With this facility the generation of compressed air is kept to a minimum thus SmartPump will help the user cut operational costs.

Within traditional vacuum management systems the installation engineers will have to undertake a huge amount of complex integration. There will be the need for multiple system components such as valves, proximity switches, silencers, vacuum gauges and excess piping. The SmartPump only requires one air, vacuum and electrical connection thus installation is quick and will reduce overall system costs.

The automatic blow off facility ensures that cups do not remain attached to the object once the vacuum is released. SmartPump will monitor the system for this problem and if vacuum starts to build up pressurized air will automatically be injected into the cup to destroy the vacuum. This ensures that expensive objects such as silicon wafers that can cost up to $20,000 are not handled incorrectly.

www.norgren.com





NEW Series PDK Crowder

PHD announces the release of its NEW Series PDK Crowder. The Series PDK Crowder is ruggedly designed to absorb high impact forces and is ideal for pushing sheet metal panels into location for precise positioning. The Series PDK Crowder's compact size accommodates applications within limited space.

The Series PDK Crowder is available in six stroke lengths (50, 80, 100, 125, 160, & 200 mm) and is powered by an ISO/VDMA cylinder. The cylinder is designed with standard adjustable cushions to reduce shock and a magnetic piston for proximity switches to provide end of stroke signals to the controller. Built-in rod compliance eliminates side loads on the cylinder's piston rod. The unit's tool plate, guide bar, and bearings are designed to deflect .06 inch under large loads to protect the crowder from damage if a panel is mis-loaded.

The Series PDK Crowder works well in stamping applications and can be used independently or in conjunction with PHD's NEW Series PDG Disappearing Gage. Units are shipped in one working day from receipt of order and offer a low cost of ownership.

For more information, send for a free catalog today or visit our web site at www.phdinc.com/pdk. For immediate assistance, call PHD, Inc. at (800) 624-8511.

PHD, Inc., P.O. Box 9070, Fort Wayne, IN 46899
(260) 747-6151; FAX (260) 747-6754

www.phdinc.com
phdinfo@phdinc.com








Compact I/P Transducer in an Explosion-Proof Housing
Provides Solution for Use with Natural Gas Applications


AMHERST, NH, USA - May, 2003 -- ControlAir Inc. announces the introduction of the Type 950XP Explosion-Proof I/P (Current-to-Pressure) Transducer that is approved by Canadian Standards Association (CSA) and Factory Mutual (FM) for use with natural gas. The Type 950XP approved for use with natural gas was designed as an option to deliver safe, reliable high performance for applications using sweet natural gas in the most hazardous environments.

The Type 950XP I/P Transducer converts an electrical current signal to a proportionally linear pneumatic output to actuate valves. Natural gas extraction and transport applications in remote locations often do not have access to compressed plant air for operation of pneumatic valve actuators. In this case, natural gas from the pipeline is used to supply the inlet pressure to the Type 950XP I/P Transducer that provides the output pressure used to drive control valves. The "Tapped Exhaust" option on the Type 950XP is used to connect piping which captures natural gas that vents from the unit and escorts it to a safe area, often away from the application, where it can be safely released as required. Its NEMA 4X (IP65) housing is designed for both Intrinsically Safe and Explosion-Proof operation. The Type 950XP has Factory Mutual (FM), Canadian Standards Association (CSA) and Cenelec (European) approvals for explosion-proof applications. For applications using natural gas, the Type 950XP has been approved by FM and CSA. Advanced circuitry includes electronic feedback control for superior vibration protection and highly accurate output. In addition to accuracy of 0.10%, the Type 950XP also delivers low hysteresis, and excellent repeatability. This is performance that surpasses most control system requirements. Yet because it typically consumes only .05 SCFM (0.11m3/hr) of air in operation, it not only costs less to buy, it costs less to operate as well. This is an important consideration with the high value of natural gas and the environmental effects of releasing it into the atmosphere.

The Type 950XP I/P Transducer approved for use with natural gas is ideal for natural gas extraction and transport applications such as natural gas gathering stations, compressor stations, pipeline feed, and booster stations that are in remote locations and often do not have access to compressed plant air for operation of pneumatic valve actuators.

ControlAir Inc. manufactures precision pneumatic and electropneumatic controls. ControlAir's markets include process control, semiconductor, printing and converting presses, diagnostic and surgical medical equipment, robotics, quality control, automotive, analyzers, compressors, pumps and paint equipment. For more information, ControlAir's website, www.controlair.com, offers full product specifications with pdf files, product CAD drawing files, and company profile.

Contact:
John Walsh
ControlAir Inc.
8 Columbia Drive
Amherst, NH 03031 USA
Phone: 603-886-9400
Fax: 603-889-1844
E-mail: sales@controlair.com
Website: http://www.controlair.com





NEW Series PLL Lite Duty Lifter

PHD announces the release of its NEW Series PLL Lite Lifter. The Series PLL Lifter is ideal for lifting light metal panels out of dies and is ruggedly designed to absorb high impact forces. The Series PLL Lifter’s compact size allows the unit to fit inside the die, close to the panel, to accommodate short tooling arms.

The Series PLL Lifter is available in six stroke lengths (50, 80, 100, 125, 160, & 200 mm) and is powered by an ISO/VDMA cylinder. The cylinder is designed with standard adjustable cushions to reduce shock and a magnetic piston for proximity switches to provide end of stroke signals to the controller. The cylinder’s built-in rod compliance eliminates side loads to the piston rod.

The Series PLL Lifter’s unique self-lubricating, energy absorbing bearings support the guide bar and are tolerant of dirt to provide long unit life. Units are shipped in one working day from receipt of order and offer a low cost of ownership.

For more information, send for a free catalog today or visit our web site at www.phdinc.com/pll. For immediate assistance, call PHD, Inc. at (800) 624-8511.



PHD, Inc., P.O. Box 9070, Fort Wayne, IN  46899
(260) 747-6151; FAX (260) 747-6754





Rexroth TaskMaster� Pneumatic Cylinder Line Expanded


The TaskMaster� pneumatic cylinder line has been redesigned to offer more options and features

The Rexroth TaskMaster� pneumatic cylinder line, the original integral tie rod cylinder in the industry, has been redesigned to offer two distinct model choices. The TM-8 series offers an exact replacement for the original line. The TM-1 series matches NFPA rod thread and port dimensions.

The smooth, hard anodized aluminum tubing is corrosion resistant and easy to keep clean. New features include standard magnetic pistons for position sensing, oversize rod options, and port and cushion options.

Available in 1 ½“ through 6� bore sizes, the TaskMaster cylinder is rated for 200 psi. Control options include integral electronic position sensing, proximity switches, and integral valve mounting. A wide variety of mounting options and accessories are available.

Bosch Rexroth Corporation, a merger of Bosch Automation Technology and Rexroth, is a wholly owned subsidiary of Robert Bosch GmbH. In the year 2001 the separate companies had total revenues of approximately $3.42 billion (3.88 billion Euros) and a worldwide total of around 26,000 employees. In the Americas, Bosch Rexroth had total revenues of $710 million and 3,146 employees in 2001.

Business units include Industrial Hydraulics, Electric Drives and Controls, Linear Motion and Assembly Technologies, Pneumatics, Service Automation and Mobile Hydraulics. Bosch Rexroth � The Drive & Control Company � offers comprehensive solutions for drives and motion control in 80 countries around the world.

Please Direct Reader Inquiries To:

John Bridges
Bosch Rexroth Corporation
Pneumatics
1953 Mercer Road
Lexington, KY 40511-1021
Telephone (859) 254-8031
Fax (859) 281-3491
john.bridges@boschrexroth-us.com







Ultra-Mini Venturi Vacuum Pump
For low flow, low air consumption applications


Ultra-miniature, venturi vacuum pumps are versatile and efficient, ideal for gas sampling and analysis, leak testing, degassing molds, drip control for dispensing liquids, vacuum curing plastics, transferring liquids in and out of containers, and pick and place of small parts.
> Lightweight - less than I oz.
> Compact - 1.25" x 0.56"OD
> Vacuum levels up to 27"Hg
> Input pressure from 5 PSI
> No moving parts
> Quiet - silencer not required


Operating over a wide range of supply pressures, ultra-miniature vacuum pumps do not require silencers or filters and can be located close to the work area for efficient use of space, rapid response and minimal air consumption. With no moving parts, the ultra-miniature venturi is a durable, reliable, and cost effective alternative to electric vacuum pumps, and provides constant vacuum flow rather than a fluctuating flow typically associated with
diaphragm pumps.


Designed to operate at input pressures as low as 5 PSI, Vaccon's ultra-miniature pumps generate vacuum levels up to 27"Hg. Ultra-miniature pumps are made of anodized aluminum; for chemical compatibility requirements, food or medical applications, custom materials are available including Delrin� Teflon� and PVC.

Vaccon Co Inc.
32 Rear Spring Street
Medfield, MA, 02052
Phone: 508-359-7200
Fax: 508-359-0177








ControlAir Inc. announces the introduction of the Type 350SS Stainless Steel Filter Regulator and the Type 360SS Stainless Steel Regulator. The Type 350/360SS series was designed to stand up to the harshest environments yet provide highly accurate pressure regulation.

The 316 stainless steel housing and filter assemblies and the fluorocarbon diaphragm construction make the Type 350/360SS series compatible with sour gas and adaptable to off shore environments. Meeting all NACE standard MR-0175 requirements for corrosive resistance, the Type 350/360SS series also provides extremely accurate and repeatable control of gas pressure. Low initial cost and minimal air consumption make this unit economical to buy and operate. To maximize performance, oversized valving helps the regulators achieve high flow rates with minimal pressure drop. A tapped exhaust port permits remote venting of hazardous gases. A low air consumption rate of 4 SCFH (0.1 m3/hr) ensures economical operation.

The Type 350/360SS series is designed to provide instrument quality air to valves, pneumatic controllers, transmitters, transducers, valve positioners, air cylinders, and a wide range of pneumatic control systems. Applications include petrochemical processing, both on and offshore; food; pulp and paper; pharmaceutical processing; pollution control; wastewater treatment and research projects.

The Type 350SS Stainless Steel Filter Regulator is available in 1/4" NPT and 1/2" NPT porting. The Type 360SS Stainless Steel Regulator is available in 1/4" NPT. There is a choice of four output ranges that provide outputs up to 150 psig (10 BAR). Maximum supply pressure is 290 psig (20 BAR). Two 1/4" NPT gauge ports are included. Optional hardware is offered that allows direct, inline or panel mounting.

ControlAir, Inc.
8 Columbia Dr.
Amherst, NH 03031
Phone: 603-886-9400
Fax: 603-889-1844





New TYPHOON� High Volume Blow Gun

The Ultimate Blow Gun

The Typhoon is Coilhose's most powerful blowgun, delivering up to 51 CFM and over three pounds of thrust at 125 PSI. The Typhoon is ideal for heavy-duty clean-up and blow-off, and its light weight and sleek design make this gun a favorite. The Typhoon meets or exceeds OSHA
regulations, and a wide variety of tips and extensions is available.

Highest Flow. Most Power.

> Meets or exceeds OSHA regulations.
> Maximum flow for easy clean-up and blow  off of even the heaviest shavings and chips.
> Lightweight and ergonomic.
> Variable flow trigger for controlled blow off.
> Wide variety of tips and extensions is available.



Coilhose Pneumatics
East: 19 Kimberly Road, East Brunswick, NJ 08816
(732) 390-8480  Fax: (732) 390-9693

West: 1730 NE Miller Street, McMinnville, Oregon 97128
(503) 434-5964  Fax: (503) 472-1989

Coilhose








NEW Series PDG Disappearing Gage

PHD announces the release of its NEW Series PDG Disappearing Gage. The Series PDG Gage features a simple, rugged design and is ideal for stopping and positioning sheet metal panels or other parts. The gage's compact design allows it to fit inside a progressive die where it will retract or "disappear" from the work area as panels move to the next stage of processing.

The Series PDG Gage is available in six stroke lengths (50, 80, 100, 125, 160, & 200 mm) and is powered by an ISO/VDMA cylinder. The cylinder is designed with standard adjustable cushions and a magnetic piston for proximity switches to provide end of stroke sensing. Built-in rod compliance eliminates side loads on the cylinder's piston rod. The unit's guide bar includes a hardened impact surface to protect it from damage. A unique energy absorbing, self-lubricating bearing supports the guide bar and absorbs energy as parts are stopped.

The Series PDG Gage works well in stamping or part stopping applications and can be used independently or in conjunction with PHD's NEW Series PDK Crowders. Units are shipped in one working day from receipt of order and offer a low cost of ownership.

For more information, send for a free catalog today or visit our web site at www.phdinc.com/pdg. For immediate assistance, call PHD, Inc. at (800) 624-8511.

PHD, Inc., P.O. Box 9070, Fort Wayne, IN 46899
(260) 747-6151; FAX (260) 747-6754

www.phdinc.com
phdinfo@phdinc.com








Norgren's NEW VM10 Valve is a High Performance, Cost-Effective, and Value-Engineered Solution.

The VM10 has been designed and engineered to make life as easy as possible for Norgren customers:


 > easy and quick to connect via integrated Push-In-Fittings

 > easy to configure with Norgren's unique, free valve island configurator

 > easy to change configuration via interchangeable valve types

 > easy to add valves for extra functionality

 > easy to replace individual valves if necessary

 > easy to understand and use with LEDs and clear labeling

Norgren





Pneumadyne, Inc. Introduces 10 mm & 15 mm Solenoid Valves

Pneumadyne's new 10mm & 15mm direct acting solenoid valves are a cost effective, space saving solution for the use of single or multiple valves. These 2-way and 3-way valves feature a variety of voltages, orifices and connectors to fit design requirements. Fast response times and high flow rates make these lightweight, miniature valves suitable for numerous applications. Mounting versatility is provided through aluminum or acrylic multiple-station manifolds or single bases.

For more information, send for a free catalog today or visit our web site at www.pneumadyne.com. For immediate assistance call Pneumadyne at 763-559-0177.

Pneumadyne Inc.
12975 16th Ave N
Plymouth MN 55441
P: 763-559-0177
F: 763-559-0547
www.pneumadyne.com
sales@pneumadyne.com





Techno-Sommer Introduces 3 NEW
Pneumatic Linear Rail Slides Models


New Hyde Park, NY -- 3 new series of Pneumatic Linear Rail Slides from Techno-Sommer, Inc. called the LS, LSF, and LSX Series feature compact design, high load capacity steel linear rails, and convenient mounting options. The LSX series of slides features 2 rails (9mm or 15mm) mounted on perpendicular planes to maximize the load and moment capacity. All slides feature built in stroke adjustment screws for fine adjustment of end positions. There are also slots for Hall Effect sensors on both ends of travel to easily sense the position via magnets built into the piston. The main air ports are on the side of the unit and a set of alternate ports are provided on the end of the unit to increase the mounting flexibility. Sets of unique adapter plates are also available for the slides to provide multiple axis slide combinations. The LSX and LSF series have built in mounts for optional shock absorbers for smooth deceleration at the end stops. There are 3 different cylinder diameters available providing varying amounts of force with up to 200mm of stroke.

Techno-Sommer Automatic, 2101 Jericho Turnpike, Box 5416,  New Hyde Park, New York 11042-5416. Phone: 516-328-3970. Fax: 516-358-2576. Web: http://www.techno-sommer.com



CPX Modular Electrical Terminal Consolidates Festo's Strength in Supporting Fieldbus Applications

As a universal peripheral solution, designed specifically to serve as a means by which standard valve terminals can be interfaced directly to fieldbus systems, or to implement additional I/O capability in existing fieldbus installations, Festo's CPX modular electrical terminal offers the simplicity, convenience, and the versatility. The CPX system is based upon configurable modules, where different electrical functions and a pneumatic interface can be assembled to meet the requirements of a wide variety of applications.


Because the system is designed around multi-stage (sandwiched) modules for digital and analog I/O capability, Fieldbus interface, system linking (including power supply options), and pneumatic interface modules, (for the implementation of Festo's Type CPA, MIDI and MAXI valves), users of the CPX Terminal, benefit from its capability to service different interfaces for Fieldbus protocols. DeviceNet, Profibus-DP, Interbus, CANOpen, CC-Link, are among those protocols which are currently supported, with future aims at including Ethernet capability and Festo's Type FEC programmable Logic Controller.
The CPX system is constructed in sandwiched functional layers consisting of an interlinking (base) block, the electronics (intermediate) module, and a connection (top) block. The interlinking blocks support serial communications between modules, and separate power capabilities for electronics and sensors, and valves and actuators.
An additional power supply can be ordered as an option, for example to separate the actuator power supply. Several connection blocks configurations facilitate implementation of different signal connection interface systems.


The Electronics modules are either analog or digital types, and both are designed to mount atop an interlinking block to form a highly concentrated I/O module. There are separate configurations for analog inputs and outputs, and this also holds true for digital I/O as well.
Devices with standard analog interfaces, such as pressure switches, temperature and flow rate, filling level transducers can be monitored and controlled with the 0 to 10 Volt (0 to 20mA and 4 to 20mA) analog input module. The analog input module units (like all of the other I/O modules) can be parameterized to meet the needs of the application, including different data formats, Protection is achieved through integrated electronic fuse.
The analog output module also controls devices with standard analog interfaces such as proportional valve, the analog output module, like the input unit, operates on 0 to 10 Volts (0 to 20mA or 4 to 20mA), and depending upon the connection block (user interface) numerous socket and connection options can be implemented.


Digital I/O is also handled by an independent module (multi-module available to combine both), with the sandwiched construction that runs true to the CPX Terminal's design concept. The digital input module allows the connection of two-wire and three-wire sensors, like proximity sensors, and inductive or capacitive sensors.


Up to 8 inputs are possible (per module). All inputs are also parameterized via software, or in the future, a hand held tool. The CPX system provides point level diagnostics.
The digital output module controls actuators such as individual valves in the application. Separate circuits are implemented in the output module with an additional power supply, which can be connected in parallel with the other supply to support devices that dissipate as much as 4 A. This module also operates on a 24-volt DC power supply and uses PNP logic, and is configured in the same fashion as the other CPX Terminal modules. A digital input/output (multi) module is also available for supporting devices with higher concentrations of I/O at a connection point. The fact that CPX I/O modules are designed for connection via M12 (5- or 8-pin), M8 (3-pin), Sub-D, Harax and terminal connections a wide range of coil and sensor control configurations can be achieved. With its Sub-D configuration, the multi module is highly adaptable to control boxes configured with various push buttons and indicator lamps. Using a pre-assembled cable with the M12 plug (8-pin connection block) for user access, the digital I/O multi module can support up to four cylinder/valve combinations with integrated sensors (2 inputs and 2 outputs per socket). While the Sub-D and M8 configurations of the module are capable of providing IP65 protection, the spring-loaded cage clamp configuration of the connection block offers a fast and convenient method of connecting pig-tailed cables inside a control panel with IP20 protection.


CPX terminals are so versatile, that by means of a pneumatic interface module, Festo's highly integrated CPA 10 and CPA 14 Compact Series, and the field-proven Midi/Maxi Series valves can be assembled into standalone manifolds, which can be operated with any of the fieldbus protocols supported. The two CPA type valves can have up to 22 coils, while Midi/Maxi configurations can have up to 26 coils for applications where higher flow rates are necessary.
The diagnostic capability of CPX terminals with pneumatic interface includes load voltage of the valves, short circuit solenoid coils, broken wires (quiescent current detection method) is capable of monitoring coil status, including missing coils and short circuit in the valve system.
Compared to the competition, the CPX has resolved many of the problems typically encountered in implementing "block I/O products," including those associated with communications with third party peripheral products, preventive maintenance diagnostics, customized I/O (input filter pulse, signal stretching, recovery from short circuit, hold or default for outputs and solenoids); scalable 11/12-bit analog I/O, and standalone capability for I/O capability.

For Further Information Contact:
Festo Corporation
395 Moreland Road
PO Box 18023
Hauppauge, NY 11788
Tel: 631-435-0800
Fax: 631-435-8026
Pat_barry@festo.com

www.festo-usa.com


2� FILTER-WATER SEPARATOR AND PILOT REGULATOR FROM HOERBIGER ORIGA

Only a few companies still make this size of equipment. However as a complete systems supplier, HOERBIGER-ORIGA offers a 2� line as a robust main air line system that has proven itself as a top performer over the years.

ADVANTAGES
-high operating reliability
-high availability
-extremely high flow rates
-long filter service life through large filter service area
-free from silicone and release agents

RECOMMENDED APPLICATIONS
-plant engineering
-building construction
-automotive production

Hoerbiger Origa Corporation 1-800-695-5984
www.hoerbigeroriga.com
Usmarket@hoerbiger-origa.com





NEW Series PFC Clamp is Ideal For Heavy Parts Clamping

PHD announces the release of its NEW Series PFC Frame Clamp. The Series PFC Clamp features a rugged cam design that provides consistent clamping force throughout a wide power window. The unit's wide jaw throat accommodates large parts with simple tooling, making it ideal for heavy parts clamping. Series PFC Clamps provide the lowest cost of ownership and are available for shipping in one working day.

Additional benefits include:

� Total clamping force of 11,250 lb is available 3.940 in above the tooling surface. This force is constant as the jaws close through the last one degree producing a .135 in wide power window.
� Tooling surface has dowels and threads to North American Automotive Metric Standards (NAMS) NC blocks.
� Jaws have dowels and threads for NAMS mounting and shims.
� Modular design allows the jaws and bushing block to be easily removed for modification.
� Weld cover option protects internal mechanisms from flying sparks and debris.
� Position sensing option provides open and close sensing with an industry standard AC or DC Weldfield immune switch mounted to a protected housing.
� Operates quietly in less than .6 seconds. Flow controls are not required. Body has orifice communication.
� Fully field repairable in less than 30 minutes using only 4 metric hex wrenches

For more information, send for a free catalog today or visit our web site at www.phdinc.com/pfc. For immediate assistance, call PHD, Inc. at (800) 624-8511.

PHD, Inc., P.O. Box 9070, Fort Wayne, IN 46899
(260) 747-6151; FAX (260) 747-6754
www.phdinc.com
phdinfo@phdinc.com





Anver Mini PumpsMINIATURE VACUUM PUMPS
USE COMPRESSED AIR LOGIC AND COMPONENTS

A full line of miniature, venturi style vacuum pumps that are powered by compressed air and create a vacuum right at the load, with instant attach and release, is available from Anver Corporation of Hudson, Massachusetts.

Anver VR Series Mini-Vacuum Pumps provide suction at the load by mounting directly to a vacuum cup, attach and release in milliseconds, and minimize the potential for loss of vacuum through tubing. Designed for use in high speed assembly and packaging machinery, these miniature vacuum generators use compressed air logic and components and can be connected to a manifold system for picking up large groupings of separate items or a single load.

Capable of achieving a 26" Hg vacuum level with only 0.74 to 1.27 scfm
air consumption, depending upon size, Anver VR Series Mini-Vacuum Pumps require only 72 psi supply pressure and come in a variety of sizes with � female supply ports. Constructed of aluminum and brass, these lightweight miniature vacuum generators have no moving parts and can be supplied with suction cups, in different styles and materials, and various suspensions.

Anver VR Series Mini-Vacuum Pumps are priced from $ 23.00 ea., depending upon material, size, and quantity. Literature is available on request.

For more information contact:

Anver Corporation
Mark Laycox, Group Manager
36 Parmenter Rd.
Hudson, MA 01749
(800) 654-3500 FAX (978) 568-1570
e-mail: anver@anver.com
www.anver.com




NEW Compact Slides Offer High Load Capacities

Just released from PHD, a new compact slide family, the Series SxL/SxH Slides. Series SxL/SxH Slides feature a compact design and provide high load capacities, making them suitable for a wide range of applications.

Series SxL and SxH Slides are available in two bearing types and five sizes (8, 10, 14, 20, and 32 mm) with travel lengths up to 3 inches. Units incorporate twin switch slots for flush installation of PHD's Series 6790 Switches eliminating the need for expensive collars, brackets, and target kits. Units are available in imperial and metric versions to accommodate applications in worldwide markets.

Additional standard features include:

� High capacity internal shock pads to reduce noise and end-of-travel impact
� Low breakaway piston and rod seals
� Tapped and/or counterbored mounting holes in slide housing and tool plate with optional dowel holes for easy mounting and attachment of tooling

Like other PHD products, Series SxL/SxH Slides are offered with a wide range of options to fit specific automation design requirements. Optional travel adjustment on extend equips the unit with stop collars and external shock pads for high speed cycling applications and easy adjustment of the extended tool plate position. Units are also offered with corrosion resistant options to provide protection in corrosive environments.

For more information, send for a free catalog today or visit our web site at www.phdinc.com/salsah. For immediate assistance, call PHD, Inc. at (800) 624-8511.

PHD, Inc., P.O. Box 9070, Fort Wayne, IN 46899
(260) 747-6151; FAX (260) 747-6754
www.phdinc.com
phdinfo@phdinc.com




Ultraline - The new name in Rodless cylinder technology from KV

New from KV is the "Ultraline" range of pneumatic Rodless cylinders, offering a wide variety of user friendly options and configurations.

With rodless cylinders now becoming widely accepted as a competitive advantage and offering space saving benefits over standard pneumatic cylinders, the new "Ultraline" rodless program incorporates several innovative and user driven features including smooth slow speed operation, very low leak rates, minimal breakout pressure, extended cushioning, flexible
port options and compactness.

Working in conjunction with a major seal manufacturer and by utilizing
hybrid seal technologies, KV have been able to develop a unique sealing
system which provides low leak rates and minimal breakout pressures, which
when combined together, are often impossible to achieve due to the open
construction of the cylinder barrel.

In addition, the minimal breakout pressure provides an ultra-smooth linear
movement making it ideal for spraying or synchronized transitioning with
controllable operating speeds as low as 2mm/sec.

Finally, KV have designed flexible porting as standard, which allows
customers the benefits of single porting from one end or porting from either
end. In conjunction, where space is limited, KV have developed a range of
compact rodless cylinders, which are currently the shortest cylinders on the
market.

"Availability has not been overlooked" advises KVs project director - Andrew
Hough. "The current design and assembly allows for a standard 5 day
delivery and we fully expect to be able to offer a 24hr turnaround in the
very near future"

Cost is also a key feature of the new Ultraline range, and due to its
simplistic assembly technique, KV have been able to minimize costs with real
cost savings being passed onto customers.

Finally to complement the introduction of the new Ultraline range, KV have
also produced an easy to use rodless configurator, which is available as a
stand-alone CD or usable on-line, which also incorporates 2D & 3D drawings
for all models.

For details of this or any of our products, please contact our sales office
direct on 01908 561515, email sales@kvautomation.co.uk or visit our website
at www.kvglobal.com

For further information contact
Tel. 01908 561515
Fax. 01908 578829
www.kvglobal.com





PSK PRESSURE SWITCH
EASY TO ADJUST WITH GRADUATED KNOB



The new Elettrotec PSK adjustable pressure switches with fixed hysteresis have been particularly designed to monitor a minimum or maximum pressure in hydraulic and pneumatic circuits or lubrication plants.
Manufactured with body in yellow anodized aluminum, standard NBR diaphragm or gasket, aluminum graduated knob and set-point security dowel in stainless steel, the PSK pressure switches, thanks to the rugged construction and the very easy adjustment by means of the graduated knob, can be easily fixed on the line either by the G1/4" inside thread connection or manifold assembled by 4 holes (�5,25).
Designed with SPDT contact rated at 3A / 220Vac switching at the adjusted set-point value, the PSK pressure switches are available in a diaphragm execution for pressure up to 100 bar (model PSK100 - maximum over-pressure 300 bar) or piston execution for pressure up to 360 bar (model PSK360 - maximum over-pressure 600 bar).
As all the Elettrotec products, also the new PSK pressure switches have been designed and manufactured according to the strict procedures of the UNI EN ISO 9001:2000 Certification Approval to grant the quality, reliability and safety of every single component.
Company Quality System UNI EN ISO 9001:2000 - ICIM Certificate no. 0158/3.


ELETTROTEC SRL
Tel.: +39 02 26110272
Fax: +39 02 2826715
E-mail: export@elettrotec.it

Contact Elettrotec



FAIRCHILD’S TXI7800 EXPLOSION-PROOF TRANSDUCER DOES NOT CONTAIN
COPPER-BASED METALS

Fairchild Industrial Products Company’s TXI 7800 Explosion-proof I/P transducer is now
constructed without copper-based metals. Other design features include internal electronic
feedback that assures precise control for a specific output pressure range, a piezoelectric
disc and solid-state control circuit to provide maximum stability regardless of vibration or
position, and split-range operation that controls two or more functions from a common control
signal.
Known for its quality, value and small size, the TXI7800’s epoxy coated housing, field
selectable output ranges, RFI/EMI protection and tapped exhaust port option make it the
logical choice for harsh environment applications.
The TXI7800 has FM, CSA, ATEX and SAA approvals. It is also authorized to display the CE
mark for the European marketplace.


For more information about the TXI7800 and other transducers in our product line, visit our
web site at www.fairchildproducts.com or contact Fairchild Industrial Products Co., 3920 West
Point Blvd., Winston-Salem, NC 27103, USA. Tel: (336) 659-3400, Fax: (336) 659-9323



Techno-Sommer Introduces Line of  Heavy Duty Long Stroke Grippers

New Hyde Park, NY - A new line of Long Stroke Parallel Grippers from Techno-Sommer, Inc. called the GH6 Series features a robust T-slotted jaw design for the toughest loads. Additional design features make this a versatile gripper. Some of the design benefits include a T-slot jaw guide that is fully supported along the entire jaw travel to increase stability and provide greater moment load capacity. The jaws are ensured of being synchronized because the rack teeth are machined right into the bottom of the jaws of the gripper. There are dual cylinders that power the jaws directly that are connected through internal porting to make sure that both jaws get maximum power without racking. To make air connections easier and more flexible, the main air ports are on the side and alternate ports on the bottom allow connecting to a manifold plate for hoseless connections. There are 4 different sizes in this family of grippers providing strokes ranging from 80mm (3.14in) up to 400mm (15.75in) and up to 3000N (660 lbs) of gripping force.

Techno-Sommer Automatic, 2101 Jericho Turnpike, Box 5416,  New Hyde Park, New York 11042-5416. Phone: 516-328-3970. Fax: 516-358-2576. Web: http://www.techno-sommer.com


Space saving and cost efficient Cylinders from KV

KV has a wide range of cylinders designed to meet every application, and the
Compact and Clamp series of cylinders is purpose designed to provide
efficient use of available space and provide a highly cost-effective
solution to the market place.

Designed around VDMA body mounting dimensions, the new compact pneumatic
cylinders are significantly shorter than conventional cylinders, and ideal
for use where space is at a premium. The range is available in bore
diameters from 32 to 63mm and each cylinder is supplied complete with
magnetic pistons for external electric sensing.

In addition, with an extended cylinder nose incorporating a PTFE lined
bearing, increased side loading can be accommodated.

Also designed for installation in confined spaces, KV’s new short stroke
cylinders provide fast response actuation for clamping, conveying and tool
holding applications. Single acting units are available with non-magnetic
piston assemblies, whilst double acting cylinders can be supplied with
either magnetic or non-magnetic pistons.

Clamp cylinders have an operating pressure range of 0.5 to 10 bar. There are
eight diameter options ranging from 12 to 63mm, the larger of which are
compatible with VDMA 24652 body mounting dimensions.

With hard anodised aluminium bodies, stainless steel piston rods and
polyurethane seals, both new series can operate at extreme of temperature.

For further information contact
Tel. 01908 561515
Fax. 01908 578829
www.kvglobal.com





NEW Series PB Clamps Ideal for Work Holding Applications in Welding Environments

PHD announces the release of its NEW Series PB Clamp product family. The Series PB Clamp features a simple design that employs a hardened helical spline with three hardened drive balls that ensure long unit life with little wear. Two sizes with left and right rotations are available to accommodate a wide variety of work holding applications.

Some benefits include:

Keyed interface between the rod and arm ensure location and easy installation.
Unique adjustable rear plug allows arm position to be adjusted up to 90 degrees at installation or change clamps from a left to a right rotation by easily changing rear plugs.
Rod weld cover is available to protect the cylinder rod and bearing areas from weld splatter during clamping.
Anti-backlash arm and guide are available to minimize the amount of arm backlash during clamping.
Clamp body has two switch grooves on all sides to ease cable routing.
Switches mount flush with the outside of the body providing a clean protected profile.
Solid State switches are available with an M8 connector.
Flow controls are not required. Body has controlled orifice communication.
Arms are available as finished or as blank arms that can be tooled by the customer.
Available in two sizes
Mounting patterns on two surfaces for application flexibility.
Units are switch ready.
Lowest cost of ownership
24 hour delivery

For more information, send for a free catalog today. For immediate assistance, call PHD, Inc. at (800) 624-8511 or visit our web site at www.phdinc.com.

PHD, Inc., P.O. Box 9070, Fort Wayne, IN 46899
(260) 747-6151; FAX (260) 747-6754
www. phdinc.com
phdinfo@phdinc.com





VACUUM CUP SUSPENSIONS
FOR HIGH SPEED AUTOMATION EQUIPMENT


A new line of non-rotating suspensions that lock each vacuum suction cup in place for precise positioning, especially oblong and rectangular types that tend to spin and disassemble at high speeds, is being introduced by ANVER Corporation of Hudson, Massachusetts.
ANVER Automation Vacuum Cup Suspensions are constructed from all stainless steel parts and once tightened will lock into position. Designed for high speed automation equipment using non-round suction cups that must retain their orientation, these suspensions will not rotate during operation.

Featuring spring-loaded tubes which provide an easy way to interface the suction cup to the vacuum lines, with compensation for variations in object height, ANVER Automation Vacuum Cup Suspensions come in 10 sizes from 1.14" (29mm) high to 6.61" (168mm) long with 0.20" (5mm) to 2.8" (70mm) travel.

ANVER Automation Vacuum Cup Suspensions are priced according to size and quantity. Literature describing suspensions and a wide range of compatible oblong and rectangular vacuum suction cups are available upon request.

For more information contact:

Anver Corporation
Mark Laycox, Group Manager
36 Parmenter Rd.
Hudson, MA 01749
(800) 654-3500 FAX (978) 568-1570
e-mail: anver@anver.com

www.anver.com




Rexroth stainless steel round pneumatic cylinders are hygienically designed

Rexroth stainless steel round pneumatic cylinders are hygienically designed with smooth surfaces and no cavities/dead spaces for easy cleanup.  Offered in both 316 and 304 stainless steel, they are inherently corrosion resistant.  When direct contact with food is an issue, the Rextreme� series is perfect, with all parts made of 316 stainless and lubricated with FDA-approved edible grease.

The Mecstreme� series is made of 304 stainless steel as a more economical option for less stringent requirements.  Both cylinder series meet ISO 6431 standards. They feature adjustable cushions on both ends as standard, and Viton seals are available for high temperature environments.  Bore sizes range from 25 mm to 125 mm.

Please direct Reader Inquiries to:

John Bridges
Marketing Services
Bosch Rexroth Corp., Pneumatics
PO Box 13597
Lexington, KY 40512
Phone: (859) 254-8031
Fax: (859) 281-3491
E-Mail: john.bridges@boschrexroth-us.com

www.boschrexroth-us.com


Miniature rotaries for industrial automation from Norgren

A completely new range of rotary actuators has been launched specifically for OEMs and automation specialists who build special purpose machines for the electronic, medical and packaging industries.


These small units offer a consistently smooth, accurate, cushioned movement and are available in six sizes � two miniature and four compact and can be easily adjusted to provide bespoke angles of rotation. They have an expected service life of 3 million cycles before servicing or replacement is required.

If you would like more information please click here Norgren



Norgren Announces New movers for industrial automation

A new range of grippers is available aimed specifically for OEMs and automation specialists building special purpose machines for the electronic, medical and packaging industries.


The seven individual families of grippers are lightweight, compact and fitted with magnetic pistons, they have a service life of five million cycles. Angular and parallel motion versions are available and both single and double acting models are on offer. These grippers are ideal for loading or unloading production lines, assembling printed circuit boards or handling test tubes.

If you would like more information please click here Norgren





Allenair now offers fully threaded construction ALL STAINLESS STEEL cylinders. Available in 1&1/8, 1&1/2 and 2 inch bores with strokes up to 15 inches. Specifically designed for food/drug processing/conveying equipment or any industry that requires a clean, crevice free design for wash-down, corrosion free or clean room applications. With a full line of options and mounting accessories available for delivery within 1 week from Allenair.



Allenair Corp.
255 East Second Street
Mineola, New York 11501
Phone (516) 747-5450
Fax (516) 747-5481





FPZ / Secoh is pleased to announce the introduction of their diaphragm linear air compressors.

FPZ / Secoh linear compressors use electromagnets to move two diaphragms back and forth to create vacuum or pressure. The linear motion that the diaphragms make as the electromagnets are sequentially energized, contributes to the fact that they generate very little noise. Decibel ratings for FPZ / Secoh compressors range from 23-47 dB(A) with airflows ranging from 13 lpm to 330 lpm.

FPZ / Secoh linear compressors feature oil free operation, low power consumption, rugged construction, and long service-free life. Most models are UL listed for stand-alone outdoor operation. FPZ / Secoh compressors have proven reliability with over 55 years of combined market experience.

Typical applications include: wastewater treatment, pond aeration, aquaculture, air mattresses, air sampling, ink jet printers, circulation equipment, and blood cuff monitors.

For more information contact:

FPZ / SECOH
2091 N. Port Washington Rd.
Grafton, WI 53024
Phone: 262-375-7360 � Fax: 262-375-7361
Email: usa@fpz.com





ELETTROTEC INTRODUCES ADJUSTABLE PRESSURE SWITCHES FOR PNEUMATICS

BLUE SERIES
(PSA2/10 - MSA2/10 A-C-SC- PSM2/10B - PSM2/10 CE)


This series of adjustable pressure switches has been especially designed to be used in pneumatics.


PSA 2/10 pressure switches are manufactured with an hexagonal anodized blue aluminum body, adjusting range 0,2 ...10 bar and hysteresis 10% � 30% actual value. They have SPDT contacts 220Vac/6A and IP65 DIN 43650 swivel connector that it is possible to turn 360� around to place the electrical connection in the required direction.
Elettrotec has added also to the series both the PSM2/10B pressure switches for manifold mounting with 2 assembly �5 holes in anodized blue aluminum, with a working range 0,2 � 10 bar, SPDT contacts, 6/A 220V-AC and three-pole + ground connector and the PSM2/10 CE model with the same electrical specifications but with a 40 x 40 red aluminum body and a screwing according to CETOP standards.


MSA pressure switches are designed with an hexagonal blue aluminum body, adjustable working range 0,2 � 10 bar, NO, NC or SPDT + Ground electric contacts and electrical rating 6A/220Vac, standard thread connections G1/8 " and G1/4", equipped with face seal. These pressure switches have been designed with a switch housing in 3 different colors, blue for N/C, red for N/O and black for SPDT contacts to help to find quickly the contact required and avoid any other specific control.


All the pressure switches suit the UE standards and on request they can be supplied adjusted with specific certificates released by our factory.
For further information ask for catalogue no. 4 ed. 2000
Company Quality System ICIM ISO 9002

Contact Elettrotec





Peters Indu-Produkt introduces the first fully round cylinder sensor for 4mm cylinder grooves. This range of sensors is used to detect the position of a magnetic piston element found in linear & rotary pneumatic cylinders. An LED is used to confirm that the sensor has changed status through the detection of the cylinders piston magnet. The output information from the sensor is then used to signal further electrical function as required. Our sensor are available in reed & GMR types and are all supplied with molded cable. To compliment the range we also supply the sensors with the option of M8 connection and various brackets to fit other cylinder styles. The sensor is completely protected within the cylinder groove.


For further product information please contact info@peters-indu.de

or call +49-281-9546-15


Peters Indu-Produkt GmbH
Mercatorstr.41
46485 Wesel
Germany
info@peters-indu.de
www.peters-indu.de



AIR OPERATED VACUUM TUBES
PROVIDE ADJUSTABLE TRANSFER SPEEDS


A line of vacuum flow and transfer tubes that are powered by compressed air for conveying a wide range of materials or evacuating smoke, fumes, dust, and scrap is available from Anver Corporation of Hudson, Massachusetts.

Anver Adjustable Flow and Transfer Tubes feature a straight-through bore that lets materials pass without clogging and are powered by compressed air which creates a Venturi vacuum. Available in a wide variety of sizes, with air flows from 15 to 145 SCFM, they provide infinitely controlled transfer speed and output flow by simply regulating the input air pressure.

Made from aluminum with a wear-resistant anodized finish, Anver Adjustable Flow and Transfer Tubes are designed for in-line installation. Applications include pneumatic conveying, hopper loading, dust-, smoke-, fume-, trim-, and waste removal, part ejection, paper feeding, and tank purging.

Anver Adjustable Flow and Transfer Tubes are priced from $ 68.00 (list), depending upon model. Literature is available upon request.

For more information contact:

Anver Corporation
Mark Laycox, Components Group Mgr.
36 Parmenter Rd.
Hudson, MA 01749
(800) 654-3500 or (978) 568-0221
FAX (978) 568-1570
e-mail: anver@anver.com
www.anver.com





Two Additional Sizes Released for Series SM Slide

PHD announces the release of two additional sizes for the Series SM Slide. Originally offered with 8, 16, and 25 mm bore sizes, the Series SM Slide is now also available in bore sizes of 12 and 32 mm. All five sizes offer a choice of three travel lengths to fit a wide range of applications.

PHD's Series SM Slides provide smooth linear motion at twice the thrust of a single bore cylinder. Modular mounting patterns on slide housing allows bolt direct with our Series STP Slides without the need for transition plates. Optional porting through the guide shafts allow the saddle to move without flexing the incoming air. All units are 8 mm proximity switch ready using external mounting kits to prevent flexing of the electrical connectors of the switches. The Series SM Slide is available in imperial and metric versions and offer standard 2-day delivery.

For more information, visit our website at www.phdinc.com/slides. For immediate assistance, call PHD, Inc. at (800) 624-8511.

PHD, Inc., P.O. Box 9070, Fort Wayne, IN 46899
(260) 747-6151; FAX (260) 747-6754
www. phdinc.com
phdinfo@phdinc.com





Electronic Vacuum Switches
TERA - EXA - GIGA


FIPA GmbH is launching a completely new range of electronic vacuum switches christened TERA, EXA and GIGA to make their benefits more transparent.

Each of the switches may be used for all kinds of monitoring applications requiring precise measurement and switching, such as for control circuits or for optimizing cycle times. They are extremely small, compact and light in weight. They can be mounted in any desired position, and their controls are freely rotatable. In the digital switches, the display can be turned through 180�.

The TERA analog vacuum switch with a measuring range of between 0 and -1 bar has an intelligent sensor and a teach-in feature. The switch offers simple push-button control and has colored LEDs for easy monitoring. The small dimensions and light weight of the switches make for easy mounting even in confined spaces.

The digital EXA (UL/URL certification) and GIGA vacuum switches allow precise measurement and data reduction via two programmable switching outputs, resulting in high reproducibility (�0.2%). Current readings can be taken from the display. Two colored LEDs reliably indicate the switching condition. Hysteresis can be set as a difference in bar to the switching threshold defined. The measuring range is from 0 to -1 bar.
Due to their round shape, switches of the GIGA type can be used even where other switches do not fit.

All the switches have a high protection rating of IP 65 and do not require a vent hose. Connecting cables and holders are available for each of the switches.

FIPA GmbH Vakuum-Technik
Freisinger Str. 30
D-85737 Ismaning
Germany
Tel: +49 (0) 89 / 96 24 89 - 16
Fax: +49 (0) 89 / 96 24 89 - 11
e-Mail: hallenberger@fipa-online.com
http://www.fipa-online.com





NEW Designer's Resource� (Vol. 7, No.1) CD-ROM

PHD has recently released the latest version of the Designer's Resource� (Vol. 7, No.1) CD-ROM. This latest version includes PHD's most up-to-date CAD configurator and sizing software, product catalogs, videos, and much more. All programs and files provided on the CD-Rom can be accessed without installation.

The CD-Rom also contains direct links to PHD's website allowing full access to the latest enhanced web support features, including:

� Online CAD Configurator which supports over 80 CAD file formats
� Online sizing capabilities
� Searchable knowledge base
� Custom product quotations
� Latest software updates
� New products and developments from PHD
� Latest catalogs and videos
� Application examples
� Local distributor search by zip code
� Application assistance
� Request information

For more information, send for a free Designer's Resource� CD-Rom set today. For immediate assistance, call PHD, Inc. at (800) 624-8511 or visit our web site at www.phdinc.com.

PHD, Inc., P.O. Box 9070, Fort Wayne, IN 46899
(260) 747-6151; FAX (260) 747-6754
www.phdinc.com
phdinfo@phdinc.com





New LARGE CHECK VALVES from ROSS Controls�.

ROSS Controls� introduces a new line of large port, high-flow check valves. The new Series 1900 Large Check Valves feature a proven, rugged poppet design with high flow and low cracking pressure (less than 1.5 psi).

The Series 1900 Large Check Valves operate quietly due to a soft-seal design and are serviceable in-line. These units are available in sizes from �" NPT to 2 �" NPT with maximum Cv ratings of 5.2 up to 50. Metric and SAE ported models are also available.

For more information or for a free brochure about the
Series 1900 Large Check Valves, contact:

ROSS Controls
Customer Service
800-438-7677 (in the U.S.) or 706-356-3708 (outside the U.S.)
E-mail: custsvc@rosscontrols.com
Internet: www.rosscontrols.com




MINIATURE SUCTION CUPS
FOR AUTOMATED HANDLING APPLICATIONS


A full line of miniature suction cups that are made from a wide range of materials and sizes to match customer specific robotic and pick-and-place automation requirements, have been introduced by ANVER Corporation of Hudson, Massachusetts.

ANVER Hi-Tech Vacuum Cups and Suction Cups are offered in over 40 standard versions in sizes ranging from 0.13" to 3.74" (3mm to 95mm) dia. Designed for push-in flanged- or barbed fittings, these miniature suction cups come in flat and single- or multiple bellow styles which can be molded from a variety of specialized materials for precise automation applications.

Available molded from non-marking silicone, anti-static compounds, NBR, nitrile, neoprene, natural gum rubber, vinyl, and urethane, ANVER Hi-Tech Vacuum Cups and Suction Cups can be formulated to customer requirements. Typical applications include high-technology pick-and-place equipment used in the electronics, pharmaceutical, food, and packaging industries.

ANVER Hi-Tech Vacuum Cups and Suction Cups are priced from $ 0.80 ea., depending upon material, size, and quantity. Free samples and price quotations are available on request.

For more information contact:

Anver Corporation
Mark Laycox, Group Manager
36 Parmenter Rd.
Hudson, MA 01749
(800) 654-3500 FAX (978) 568-1570
e-mail: anver@anver.com
www.anver.com




New 3/2 CROSSMIRROR Double Valves from ROSS Controls.

ROSS Controls is proud to introduce its new line of 3/2 CROSSMIRROR double valves for Control Reliability.  The new Series 77 CROSSMIRROR double valves offer the unparalleled safety features of our patented SERPAR Crossflow double valves with the advanced benefit of a dynamic monitoring design.  The CROSSMIRROR dynamic monitoring system is a patented design that allows the valve’s monitor to cycle with every cycle of the valve.

The 3-port, 2-position CROSSMIRROR locks itself out in response to a fault in the valve.  The CROSSMIRROR valve remains locked-out until reset by maintenance or safety personnel.  An anti-tie-down feature makes the reset function “tamper-proof� and a pressure switch option is available as a fault indicator.  The CROSSMIRROR with its unparalleled features is truly the next generation of double valves.

Applications for these valves include press machinery, amusement park rides, metal shears, and safety-related applications where control reliability is a must.

For more information or for a free brochure about the 3/2 CROSSMIRROR double valves, contact:

ROSS Controls
Customer Service
800-438-7677 (in the U.S.) or 706-356-3708 (outside the U.S.)
E-mail: custsvc@rosscontrols.com
Internet: www.rosscontrols.com




New HOZE-FUZETM from ROSS Controls automatically reduces the dangers of air line hose and plastic tubing failure.

If you have ever seen a broken air line whipping around, then you will instantly see the benefits of the new HOZE-FUZETM from ROSS Controls.  The HOZE-FUZETM senses the high flow in the line that occurs when a hose or tubing suddenly fails and automatically reduces the flow to minimize hose whip.

HOZE-FUZETM units are available in port sizes from ¼” to 1� with either NPT or BSP threads.  Maximum operating pressure is 260 PSIG (18 bar) and temperature range is �4 to 275 F (-20 to 135 C).

The HOZE-FUZETM should be installed upstream of flexible hose or plastic tubing.

For more information or for a free brochure, contact:

ROSS Controls
Customer Service
800-438-7677 (in the U.S.) or 706-356-3708 (outside the U.S.)
E-mail: custsvc@rosscontrols.com
Internet: www.rosscontrols.com




New High Performance Rodless Cylinder
Robust RexMover� rodless cylinder from Bosch Rexroth capable of high speeds


New generation of rodless cylinders provides wide variety of models and user-friendly options with a space saving, durable design

The new RexMover rodless pneumatic cylinder incorporates several innovative, user-driven features including a robust design, high-speed capability (up to 16 feet per second), virtually leak free operation, and user-friendly installation and maintenance. An oval-shaped piston design allows greater resistance to side load, and saves space due to a low overall height. The user benefits from three choices of air connections - on the side at both ends, on the rear of the end covers, or on one end cover. Other choices include NPT or ISO-G (BSPP) ports, and four model versions - internal guiding, slide bearing guide, mini guide and heavy-duty guide. RexMover cylinders feature strong, yet lightweight aluminum construction, cushions and impact bumpers, a magnetic piston for sensors, and grooves for sensors on three sides for flexibility. An on-line configurator is available to calculate an application, obtain a CAD drawing, and get a part number for a custom cylinder.


Please direct Reader Inquiries to:

John Bridges
Marketing Services
Bosch Rexroth Corp., Pneumatics
PO Box 13597
Lexington, KY 40512
Phone: 1-800-REXROTH
Fax: (859) 281-3491
E-Mail: info.pneumatics@boschrexroth-us.com

www.boschrexroth-us.com



New Hyde Park, NY -- Two new rotary actuators from Techno-Sommer Automatic feature the ability to rotate in 4 adjustable steps plus their compact sizes. Rotary actuators are commonly used in automation applications as ratchet drives for rotary tables, as rotators for a robot arms, for opening and closing valves, for tilting containers, for rotating components for insertion, etc. These step rotor units consists of an outer and inner vane. The outer vane and the stop of the inner vane are a single piece. The position of the inner vane therefore determines the position of the shaft. Four different positions may be achieved via four air inlets.

The 0.521 kg smaller unit, model SH-5, features rotational angles of up to 390o at up to 240 cycles per minute.  Operating pressure is from 3 to7 bar. The axial and radial load is 29 N and 59 N respectively.  The operating torque is 1 Nm at 6 bar.

The 1.137 kg larger unit, model SH-20, features rotational angles of up to 480o at up to 180 cycles per minute.  Operating pressure is from 3 to 7 bar. The axial and radial load is 43 N and 85 N respectively.  The operating torque is 3.4 Nm at 6 bar.

http://www.techno-sommer.com




VACUUM CUP SUSPENSIONS EASILY MATCHED TO LOAD REQUIREMENTS

A full line of vacuum cup suspensions that come in a wide range of configurations and sizes for use in pick-and-place and other material handling systems is available from ANVER Corporation of Hudson, Massachusetts.

ANVER Vacuum Cup Suspension Assemblies feature spring-loaded tubes which provide an easy way to interface the suction cup and vacuum lines to the machine tooling. Compensating for variations in object height and assuring consistent cup pressure with each pick-up, these spring-loaded suspensions absorb shock and help extend the life of rubber vacuum suction cups.

Allowing machine builders to meet demanding applications, ANVER Vacuum Cup Suspension Assemblies permit the use of flat cups for faster release and can mate with various types of fittings, ball swivels, vacuum generators, sensing valves, and related components. Tubes range from a few inches to several feet long and come in various O.D.s with stainless steel springs.
ANVER Vacuum Cup Suspension Assemblies are priced according to configuration, size, and quantity. Literature and price quotations are available upon request.

For more information contact:
ANVER Corporation
Franck Vernooy, VP Marketing
36 Parmenter Rd.
Hudson, MA 01749
(800) 654-3500 or (978) 561-0221
FAX (978) 568-1570
e-mail: anver@anver.com
www.anver.com






Series RIxH Rotary Actuator Features Hollow Pinion Design

PHD announces the release of its NEW Series RIxH Rotary Actuator.  The Series RIxH Rotary Actuator is an addition to the Series RI Rotary Actuator and offers a hollow pinion design to provide protection and routing for electrical cables and air lines. The Series RIxH Rotary Actuator provides a lower cost solution to the Series RI Rotary Actuator for applications that do not require internal air passages within the rotary pinion.

Series RIxH and Series RI Rotary Actuators are available in 25, 32, and 50 mm bore sizes and six torque ranges from 32 to 414 in-lb at 87 psi [3.6 to 46.8 Nm at 6 bar]. Units provide 0 to 180 degrees rotation, infinitely adjustable throughout the entire range with a 3 position option available at 90 degrees. Optional shock absorbers or bumpers are available to provide quiet operation and end of rotation deceleration. Series RIxH and Series RI Rotary Actuators offer standard 2 day delivery and can be supplied in either imperial or metric units.

For more information, send for a free catalog today. For immediate assistance, call  PHD, Inc. at (800) 624-8511 or visit our web site at www.phdinc.com

 To view our archive of New products Click here

Norgren's servo controlled ISO cylinder offers highly accurate positioning

Norgren, world leader in pneumatic components and automation systems, has expanded the popular RA/8000 ISO/VDMA cylinder range with the launch of a servo-controlled cylinder.

Unlike ordinary cylinders, the servo-controlled model offers exact
positioning of the piston through an electrical or pneumatic control
signal, ensuring that it will be accurately held in any desired position, even under changing load conditions.

Applications for the highly versatile cylinder include open and closed loop process control systems in a number of demanding industrial areas, such as temperature control or pressure regulation in power stations, chemical plants, gas works, food processing, steel works and paper mills. Suitable for use in harsh environments, it is vibration resistant, dust proof and splash proof.

A positioning feedback mechanism included with the cylinder links the
controller to the piston rod. Coupled with the position controller, this system allows higher thrust and shorter positioning time than ordinary cylinders.

Comprised of a Foxboro/Eckardt (model numbers RA/8000/P1 to P4) or Siemens (model numbers RA/8000/P5 to P8) universal position controller, Norgren's servo cylinder features left or right hand versions, which can be direct or reverse acting.

The RA/8000 is available in a wide variety of diameters, from 63 to a large 320mm. Stroke lengths are from 100 to 600mm, while the positioners are offered in electro-pneumatic (4 to 20mA) or pneumatic (0.2 to 1.0bar) versions. In addition, a wide range of mounting options are available to suit various applications.

Featuring high performance, stability and reliability, the RA/8000 conforms to ISO6431, VDMA24562 and NFE49-003-1.

If you would like more information please click here Norgren





ROBOHAND EXPANDS DirectConnect PRODUCT LINE
WITH ROD LOCKING CYLINDER OPTION


Robohand, Inc., of Monroe, Conn., introduces an externally locking cylinder option to its DirectConnect thrusters and slides product lines.

This VDMA (ISO) locking cylinder comes as an option on Robohand's externally powered DirectConnect thrusters and base slides. With bore sizes of 32mm, 50mm and 63mm, and with strokes up to 700mm, this fully repairable cylinder and locking mechanism is the most reliable in
the industry. The head and the locking device are built into a common block offering a compact profile that offers the tightest package in the industry.

Robohand also offers Hall-effect sensors, flow controls and Metric (BSPP) or standard (NPT) porting on the locking cylinder. In the event of an air pressure loss or failure Robohand's external locking cylinder will act as a safety look preventing damage to the machine.

For more information about the DirectConnect line or other product offerings from Robohand, or to order a catalog, visit the website: www.robohand.com or send an email to: solutions@destaco.com.
Robohand, Inc. is a DE-STA-CO Industries company.


Robohand, Inc.
482 Pepper Street
Monroe.CT 06468-2653
Toll-Free: (800) ROBOHAND
Fax: (203)452-7418

DE-STA-CO Industries
International Headquarters
31791 Sherman Drive
Madison Heights, MI 48071
www.destaco.com




New Hyde Park, NY -- Eight new rotating jaws for parallel grippers from Techno-Sommer Automatic have the unique ability to both grip and turn parts simultaneously thereby shortening production cycle times by up to 50%. Identified as the SB Series, these standardized off-the-shelf units can be fitted to most parallel grippers and handling systems. They eliminate the need to design special costly fixtures which might include rotary actuators, etc. to achieve a similar result.  Sizes range from models capable of handling hypodermic needles to the larger sizes designed to pick-up and rotate heavy parts such as complete automotive engine blocks. Three models in the SB Series use synchronous belt drives and five models are gear train driven. Torques range from 0.09 ft-lbs up to 42.0 ft-lbs. Position sensors to sense position are available for all models. One of the models is available with hydraulic drive.

These units are available on a special free trial evaluation basis. In addition, a free .DXF CAD file drawing of this unit is available for downloading through the Techno technical support BBS or via a disk sent by mail.  Detailed technical specifications are provided in Bulletin H920 available free upon request from Techno-Sommer Automatic, 2101 Jericho Turnpike, Box 5416,  New Hyde Park, New York 11042-5416. Phone: 516-328-3970. Fax: 516-358-2576. Web: http://www.techno-sommer.com



SPC introduces its complete line of Ball Valves- Compatible with both Air & Water!

SPC’s ball valves are ideal for pneumatic applications in both open and closed positions. The body is constructed from PPS resin, ensuring durability, efficiency, & optimal flow of air or water. The ergonomically designed handle increases the turning leverage for easy opening and closing. In comparison to other ball valves in the market, SPC’s line of ball valves proves more cost-effective and gives a clean, simple appearance.

-Comparison-
Current Ball Valves in the Market:
Body Substance: Brass � relatively heavy
Joint Connection Design: Female exterior � requires additional fittings to enable connection
Interior Operation: Ball to control flow � Teflon packing makes for rigid shift between Off and On

SPC Ball Valves:
Body Substance: Engineering plastic substance (PPS) � much lighter than brass
Joint Connection Design: fitting is already installed inside the valve, enabling easier connection;
            fitting body swivels after installation; no additional fittings required
Interior Operation: Stem to control flow � usage of a rubber O-Ring allows smoother rotation



Available in the following metric sizes:  6mm, 8mm, 10mm,  & 12mm tube diameters in conjunction with R1/8, R1/4, R3/8, & R1/2 thread sizes.

Available in the following inch sizes:1/4 in., 5/16 in., 3/8 in., & 1/2 in. tube diameters in conjunction with NPT 1/8, NPT 1/4, NPT 3/8, & NPT1/2 inch thread sizes.

For more information contact us at:

SPC
377 Van Ness Way, Suite 1206
Torrance, CA. 90501
Tel: (310) 212-5568
Fax: (310) 212-5583
http://www.ajatrade.com


Peters Indu-Produkt TOP-MOUNT-SENSOR (patent pending) for 6mm T-groove cylinders

This range of sensors is mainly used to detect the position of a magnetic piston element found in linear & rotary pneumatic cylinders. An LED is used to confirm that the sensor has changed status through the detection of the cylinders piston magnet. The output information from the sensor is then used to signal further electrical function as required. Our sensors are available in reed & GMR types and are all supplied with molded cable. To compliment the range we can also supply the sensors with the option of M8 or M12 connection. This new sensor housing is easily mountable from the top directly into the cylinder groove allowing easy assembly and disassembly. The sensor is then protected within the cylinder groove.

Product features: robust design-reed & GMR versions-fixed molded cable-LED indicator to confirm status

For installation information please use download area-proximity sensors-PDF

For additional information: Peters Indu-Produkt GmbH, Mercatorstr.41, 46485
Wesel, Germany, info@peters-indu.de, www.peters-indu.de








The Peters Indu - Produkt DDS Differential Pressure Switch is a compact device used in place of proximity switches in order to sense the end of stroke and/or clamping pressure of a linear actuator.
The basic working principle of the DDS is that port "A" and "B" connect in the pressure line anywhere between the actuator and the valve. Using two highly accurate
ceramic pressure sensors, the pressures are compared electronically within the DDS. These ceramic pressure sensors allow a high temperature stable measurement, and are unaffected by high overpressure or pressure peaks.
Extremely consistent and repeatable proximity sensing based on reference
pressure (from exhaust line) and dependent pressure (from input line) bring
an added dimension to end of stroke sensing. The DDS is unaffected by
changes in stroke length since it's sensing is based on pressure. The DDS
sensor lends itself well to applications requiring tactile type sensing.
Trip points are adjustable based on forces applied by the actuator. This
unit is especially useful for clamping various size work pieces, for spot
welding applications or where electronic magnetic proximity devices need to
be constantly re-calibrated if the application requires changing trip
points. Installation does not require specialized cylinders (i.e. magnetic
pistons, special flanged end caps, specialized keyways, or aluminum barrels)
and works especially well on short stroke cylinders.

For additional information: Peters Indu-Produkt GmbH, Mercatorstr.41, 46485
Wesel, Germany, info@peters-indu.de, www.peters-indu.de





BOTTLING PICK-UP BROCHURE
FEATURES PNEUMATIC GRABS AND COMPONENTS


A new brochure featuring a full line of bottling pick-up heads and common wear items for designers, manufacturers, and users of bottling machinery is being offered by Anver Corporation of Hudson, Massachusetts.

The Bottling Pick-Up Heads Brochure features a broad selection of pneumatic powered bladders that instantly and securely pick-up bottles, without crushing or marking them. Included are a wide variety of modular pick-up heads, internal bladders, components, and associated wear parts that are pre-engineered, built in volume, and field-replaceable to reduce costs.

Providing an overview of the ease with which thousands of customized pick-up solutions can be created by combining only a few dozen components, the 6-panel, full-color Bottling Pick-Up Heads Brochure includes photographs
of bottle types that can be picked up and released in milliseconds.

The Bottling Pick-Up Heads Brochure is available free from: Anver Corporation, 36 Parmenter Rd., Hudson, MA 01749.

For more information contact:

Anver Corporation
Franck Vernooy, VP Marketing
36 Parmenter Rd.
Hudson, MA 01749
(800) 654-3500 or (978) 568-0221
FAX (978) 568-1570
e-mail: anver@anver.com
www.anver.com





VACUUM PICK-AND-PLACE COMPONENTS
ALLOW CUSTOM FABRICATION USING STANDARD PARTS


A wide variety of standard cross arm suspension bracket assemblies, suspension rods, vacuum suction cups, and fittings that simplify the design and fabrication of vacuum frames for pick-and-place systems
are being introduced by Anver Corporation of Hudson, Massachusetts.

Anver Cross Arm Suspension Assemblies include the major components required for machine builders and transfer system designers using vacuum for pick-and-place applications. Featuring a standard line
of adjustable mounting brackets with nickel plated steel cross arms
in several compatible sizes, the suspension assemblies include hanging rods, hundreds of suction cup varieties, and related vacuum fittings.

Allowing the construction of custom pick-and-place systems using standard components, Anver Cross Arms come in 1�", 1�", 1�", and 2" sq. sizes and varying lengths. Suspension rods are offered from 1.14" to 6.61" high, and hundreds of suction cups are available in sizes from 2 mm to 5" diameter., molded in many styles from a variety of materials.

Anver Cross Arm Suspension Assemblies are priced according the parts, sizes, and quantities selected; with delivery from stock. Literature and pricing are provided upon request.

For more information contact:

Anver Corporation
Mark Laycox, Group Manager
36 Parmenter Rd.
Hudson, MA 01749
(800) 654-3500 or (978) 568-0221
FAX (978) 569-1570
e-mail: anver@anver.com www.anver.com





Festo's ProPneu Dimensioning Software Links Electronic Catalog to Application Solutions

The practical aspects of ordering pneumatics components from Festo Corporation have been enhanced significantly by the Company's new selection software, ProPneu, which not only offers component size, performance and system optimization data, but it also interacts
with Festo's electronic catalog.

Now customers and automation consultants who currently use Festo's
electronic catalog to select pneumatic system components are
easily able to use practical design concepts to establish the
proper component selection for any application.

ProPneu software allows the user to input system parameters,
select cylinder, valve, tubing and fittings, and with ProPneu
software's simulation capability, a graphic display, depicting the
anticipated performance of the components selected, can be
generated. Simulation graphs include plots for speed vs. position,
and acceleration vs. pressure. An annotation feature allows the
user to add commentary to each simulation graphic. The program
automatically compares the simulation data to flag potential
system design problems.

The program is MS Windows compatible easy to install and operate,
and since it imports electronic catalog files, the time and effort
involved in selecting compatible components is greatly reduced.

For more information, contact
Festo Corporation
395 Moreland Road
P.O. Box 18023
Hauppauge, NY 11788
Phone: 1-800-99-FESTO
FAX: 1-800-96-FESTO
E-mail: info@festo-usa.com
www.festo-usa.com




SMART CUBIC VALVE

Size and performance issues addressed by Ingenious" Smart Cubic"
valve terminal series

Festo Corporation has developed two unique valve terminals for the
optimized implementation of their new direct-control valves. These
valve terminals, collectively referred to as the "Smart Cubic"
series are distinguished by their mechanical configuration, and
suitability for the broadest range of applications with miniature
actuators.

The CPV-SC is a 40mm wide-by-40mm high, fixed-grid valve terminal
offering a choice of 4, 8 or 12 valve positions, and flow rates up
to 150 liters per minute ( 152 Cv). The CPV-SC operates with 0.9
to 8.0 bar pressure with a 24 VDC power supply to achieve
switching times in the 10ms range with LED status signaling. The
terminal's compact size is made possible by the ingenious design
of the electrical connection scheme, which includes D-connector
access to an integral sub-base wiring system.

The CPV-SC, with its fixed grid design, permits installation of
any combination of valves, including single solenoid and 5/2-way,
double solenoid 5/2-way, 3/2-way normally open or normally closed,
and 2/2-way normally closed valves.

The modular alternative to the fixed grid terminal is the CPA-SC,
a sub-base valve terminal which share the CPV-SC's 40-millimeter
height dimension, but offers a range of electrical connection
schemes for

standard connections and plug-in sockets, including multi-pin
connectors. The modular design facilitates the implementation of
valves on various sub-bases (M5 connections or PRS manifolds), or
single (stand-alone) valve configurations with various sub-bases.
The miniaturized, high-flow valves offer a wide range of
capabilities, such as typical 5/3 or 2x 3/2-way functionality, and
special pilot and vacuum applications.

The CPA-SC terminal has a 10mm-wide grid, and like the
"space-saving" CPV-SC terminal, it operates at 0.9 to 8.0 bar; and
also shares several mechanical and operational features, such as
the 40-millimeter height dimension, the same flexibility in valve
population, and 150 liter-per-minute flow rate capacity, IP 20
protection, temperature range (0 to 40°C), status indications
features, switching time, and power supply requirements.


For more information, contact
Festo Corporation
395 Moreland Road
P.O. Box 18023
Hauppauge, NY 11788
Phone: 1-800-99-FESTO
FAX: 1-800-96-FESTO
E-mail: info@festo-usa.com
www.festo-usa.com




Norgren extends its range of air preparation equipment.

Global pneumatics expert, Norgren, has launched its Olympian Plus 68 series of air preparation units. This upgrades its successful 15 series and extends its existing Olympian Plus range.


Benefits of the new range include cost and time savings such as: mechanical pressure drop indicators fitted as standard to coalescing filters, a tamper resistant lock shroud for pressure and filter regulators and sight glasses
on all coalescing filters. Most noteworthy is the availability of an
integral filter/regulator, the B68, providing all the features of a modular
filter and a regulator in a compact, lower cost design.


Terry Weeber, Norgren's marketing vice president, said: "The new range has
a similar style to our Excelon range of air preparation units which
introduces uniformity across the ranges. There is no need for 15 series
customers to change existing mountings as the 15 series and 68 series are
interchangeable and all 68 series units fit into old 15 series yokes.


"In addition, mechanical pressure drop indicators on high flow units can
help to achieve a reduction in energy usage resulting in cost savings," he
said.


The 68 series offers a port range of �" to 1�" which extends the fully
modular Olympian Plus range.

The full range comprises general purpose filters, coalescing filters, oil
vapor removal filters, pressure regulators, filter regulators, lubricators,
pressure relief valve, soft start dump valves, shut off valves and yokes.
All are available at the Norgren Webstore at www.norgren.com or via
traditional sales/distribution routes



If you would like us to provide you with more information please click here Norgren





Flairline AO-Series Air/Oil tanks provide customers with a means to benefit from the smooth control of hydraulic oil using existing shop air
Pressurizing the tank from one end with existing shop air provides hydraulic fluid out the opposite end into the cylinder. The cylinder speed can be controlled with the use of flow controls to adjust exhausting fluid from the cylinder.
Internally the tank has 2 baffles, one on each end. These reduce aeration of the hydraulic fluid when leaving the tank and when pressurized at the opposite end. The cylinder barrel is made of a translucent, wound fiberglass and epoxy composite.
This provides an easy-to-read level indicator as well as a high strength non-denting body.
End caps are precision-machined anodized aluminum. Tie rods, mounts and nuts have a corrosion resistant coating.

For more information Please contact:

FLAIRLINE FLUID /AIR PRODUCTS
FARMINGTON HILLS, MI 23435 INDUSTRIAL PARK DR.
Phone (248) 478-3330
FAX (248) 478-3321





AUTOMATION STUDIO

Fluid Power Circuit Design and Simulation Software


Industrial users can now benefit from Automation Studio’s user friendly, simple and powerful interface to design circuits for all their projects. Specially packaged for designers, application engineers and technical sales representatives, the software allows the user to greatly save time, reduce errors and increase productivity.

Highlights

* Fast schematic design using “drag & drop� from symbols library
* Functional simulation to troubleshoot and test circuit operation
* Extendable and customizable component libraries
* More and improved CAD functionality (alignment, grouping, drawing layers, etc)
* Automated and customizable parts lists generation - BOM & Database Catalog
* Covers major automation technologies: Pneumatics, Hydraulics,
Electrical Control, PLC Ladder Logic, Digital Electronics, Motor control, Cartridge Valves, Sequencers, SFC (Grafcet) and an optional I/O Interface Kit.


Call us today or visit our Web Site at
www.automationstudio.com/pneumaticsonline to:
* Schedule a live, on-line demonstration based on your specific
curriculum needs.
* For further information, pricing, customized quote and more�

Famic Technologies 2000 Inc.
9999 Cavendish Blvd, Suite 350
St-Laurent, QC, Canada, H4M 2X5

Tel.: (514) 748-8050
Fax: (514) 748-7169
E-Mail : sales@famictech.com
Web Site: www.automationstudio.com




Parker Hannifin Cylinder Division introduces the
new non rotating pneumatic cylinder
. Series
2MNR is available in bore sizes 1-1/2, 2, 2-1/2.
3-1/4 and 4 inch. Based on the proven 2MA
design, the 2MNR series is a non-lube cylinder
designed to meet today's requirements for low
cost, efficient, linear motion actuators.


The Series 2MNR combines all the high performance features
of the Series 2MA with a new head and rod bearing
design incorporating three piston rods. The three rod
construction coupled with two interchangeable tooling plates
offers more stability, high precision linear movement and
aligned positioning.

Specifications
� N.F.P.A. Interchangeable
� Bore Sizes: 1 -1/2 to 4 inches
� Rod Diameters: 5/16 to 5/8 Inches
� Single End or Double End Designs
� Mounting Styles: 9 N.F.P.A. Standard Mounts
Plus 1 Base Bar Style

� Rated Air Pressure: 250 P.S.I. Air Service
� Standard Temperature:-10' Fto+165' F
� Strokes: available In any practical stroke length
� Cushions: optional at either end or both ends of stroke
� Caustic washdown version available



For any additional product information, please contact the Local Parker
Distributor closer to you - to find local distributors please refer to our
web site at
www.parker.com






FPZ introduces a new series to their extensive line of high performance regenerative blowers.  The SCL 115DH / 115SH blower is capable of producing 1530 scfm at open flow, 8.7 psig at maximum pressure, and 13.3� Hg at maximum vacuum.  Integral silencers are included and multiple electric motor options from 20 to 50 hp are available. No lubrication or maintenance is required and blowers are mountable in any orientation. Great alternative to PD / rotary lobe blowers.

For more information contact:

FPZ, Inc.
2091 N. Port Washington Rd.
Grafton, WI  53024
Phone:  262-375-7360 Fax:  262-375-7361
Email:  usa@fpz.com
www.fpz.com




NEW Featured Product - Series PA Clamp

PHD has recently released the new Series PA Swing Arm Clamp to its line of pneumatic clamps. Series PA Clamps have a simple design, compact size, low weight, long life, and high clamp force ideal for part holding or transfer. They are available in one working day from receipt of order.

Benefits

bulletSimple design, compact size, low weight, long life, and high clamp force make these clamps ideal for part holding or transfer.
bullet Series PA Clamps are available in five sizes for application to a wide variety of tasks.
bulletMounting patterns on three surfaces of the rectangle bodies provide flexibility in design and clamp mounting.
bullet Clamps are available in left and right rotations to fit within the space allowed.
bulletSteel and copper arms are supplied for standard and welding applications.
bullet Reed and Hall Effect Switches are available for easy interfacing to electronic controls and logic systems.
bulletSteel and Neoprene-tipped spindles are available for clamping rugged or show finishes.
bullet Lowest cost of ownership.

Click here for PHD



Festo's New DNA Series Pneumatic Cylinder Takes NFPA Standard to the Extreme


Beyond its compatibility with NFPA standards, as it pertains to pneumatic cylinder mounting, bore and rod sizes, accessory dimensions and compressed air fitting port sizes, Festo's DNA series double-acting cylinder employs the latest in aluminum profile extrusion technology and innovative design. Features, such as its extruded, grooved (for sensor mounting), high-strength barrel profile is at the foundation of the DNA's unique design.

The profile provides not only a precise bore and highly efficient housing, but it also facilitates the use of precision machined aluminum end and head caps that do not require connecting rods to form an reliable air-tight seal. These components are affixed directly to the profile with slim collar screws, which have been especially fabricated with internal threads (at the head) to receive screws for various NFPA mounting configurations as described NFPA T3.6.7.R2-1996. The sensor grooves in the cylinder profile facilitate the application of either of Festo's space savings SME-8 or SMT-8 sensor types. They are easily installed without brackets or cylinder disassembly of any kind.

Internally the DNA exhibits some characteristics that go beyond the requirements of the NFPA standard, and offer the user several advantages. The piston rod is burnished to provide superior resistance to corrosion as compared to the typical chrome plated rod found in other NFPA cylinders. The piston assembly is specifically designed to accommodate the full stroke range for a given configuration, while also allowing both the air connection port and air cushioning adjustment screw to be mounted in close proximity to each other and on the same surface of the cylinder. This feature reduces the machine designer's burden with respect to machine maintenance. Rod accessories are fabricated from carbon steel with a black oxide finish and can withstand the environmental conditions of applications where NFPA standards apply. Festo offers the required piston rod diameters of 5/8- or 1-inch for barrel diameters of 1-1/2, 2 and 2-1/2, and 1- or 1-3/8-inch rods for barrel diameters 3-1/4, 4 and 5 inches.

For Further Information Contact:
Festo Corporation
395 Moreland Road
PO Box 18023
Hauppauge, NY 11788
Tel: 631-435-0800
Fax: 631-435-8026
www.festo-usa.com



Innovative ISO 6431 Pneumatic Actuator Design� Lookin' Good!

Festo's new DNC cylinder meets ISO 6431 standards and introduces a new aluminum extrusion design that offers reduced physical envelop and a variety of variations for use in a wide range of industrial environments. Seven bore sizes (32 - 125mm) and strokes from 25 to 500mm give machine designers a most space efficient and capable alternative.

For Further Information Contact:
Festo Corporation
395 Moreland Road
PO Box 18023
Hauppauge, NY 11788
Tel: 631-435-0800
Fax: 631-435-8026
www.festo-usa.com





NORGREN - HERION

MODEL 33D Solid-State Pressure Switch


Norgen-Herion's new Model 33D Solid-State Pressure Switch provides highly reliable switching and long life - up to 100 million cycles. It is available in ranges from vacuum to 10,000 psi and fully programmable for NO, NC, or "window-mode" operation. Real-time LCD display with selectable pressure units has amber backlight for high visibility. Switch features programmable delays, LED status indication, tamper protection, and industry standard M12 electrical connector. All-stainless steel wetted parts provide compatibility with a wide variety of fluids. Options include dual switch outputs or a secondary analog output.

For more information contact:
Donald Hoerr - Product Manager
Herion USA
176 Thorn Hill Road
Warrendale, PA 15086
Telephone (724) 776-5577 FAX (724) 776-0310





NEW “SMART� VALVE POSITIONER MEANS EASY CONFIGURATION AND LOWER MAINTENANCE

The newest version of the Siemens SIPART�, PS2 Series valve positioner is now available from the Process Industries Division of Siemens Energy & Automation, Inc. New, premium diagnostic capabilities, including an actuator leak test, are now standard on all units. This allows the user to identify necessary preventive maintenance actions before a problem occurs. The diagnostic information is also easily accessible through the local faceplate.  In addition to a standard auto-tuning feature, the PS2 will self-diagnose system changes and continue to optimize the tuning parameters in order to maintain valve performance, even with changes in actuator supply pressure and valve friction.

  The upgraded PS2 valve positioner will provide communication capabilities through either PROFIBUS-PA� or HART� protocols, and can also be operated through a Windows-based HMI (human machine interface) with simple PC software. If manual operation of the valve positioner is preferred, simple configuration can also be accomplished using a built-in user interface with an intuitive menu structure, three push buttons, and an LCD display.

In the balanced condition, the PS2 positioner consumes virtually no air. This results in reducing electricity costs by decreasing the usage of compressed air. This design saves users over $900/year per valve compared to using conventional smart positioners.

  Other features include user-defined ramping; user-defined, tight shut-off and full open settings; seven pre-set flow characterization curves with a 21-point, user-defined custom flow characterization; user-defined split ranging; and a universal shaft for linear or rotary applications.

  CONTACT:
Mark Stiefbold
Product Manager
(215) 646-7400 ext.2711
mark.stiefbold@sea.siemens.com

 Teresa Parris
Marketing Communications Manager
(215) 646-7400 ext. 2592
Teresa.Parris@sea.siemens.com




Air Motor Rotation Sensor by Diditco

Model RS-101

Measure rotation speed of new or used air tools with the Diditco Air Motor Rotation Sensor.  Model RS-101 is essential to your operations if performance of air tools makes a difference to the quality of your product and your company’s reputation.

bulletDoes your tool design meet your specifications?
bulletDid your supplier deliver as promised?
bulletAre your tools ready for preventive maintenance?
bulletDid repairs restore full, predictable capability?
bulletIs that bargain overstock motor really a bargain?

The Model RS-101 measures rotation speed from 200 RPM to 50,000 RPM.  BNC outputs provide amplified signals, TTL pulse each rotation and voltage proportional to rotation speed. The Model RS-101 easily attaches to your air motor and accommodates a wide variety of motor bodies.

Al Akerman, Phd
Diditco
865-406-6589
Al@Diditco.com




AIR OPERATED VACUUM TUBES

PROVIDE ADJUSTABLE TRANSFER SPEEDS

A line of vacuum flow and transfer tubes that are powered by compressed air for conveying a wide range of materials or evacuating smoke, fumes, dust, and scrap is available from ANVER Corporation of Hudson, Massachusetts.

ANVER Adjustable Flow and Transfer Tubes feature a straight-through bore that lets materials pass without clogging and are powered by compressed air which creates a Venturi vacuum.  Available in a wide variety of sizes, with air flows from 15 to 145 SCFM, they provide infinitely controlled transfer speed and output flow by simply regulating the input air pressure.

Made from aluminum with a wear-resistant anodized finish, ANVER Adjustable  Flow and Transfer Tubes are designed for in-line installation.  Applications include pneumatic conveying, hopper loading, dust-, smoke-, fume-, trim-, and waste removal, part ejection, paper feeding, and tank purging.

Literature is available upon request.

For more information contact:

ANVER Corporation
Mark Laycox, Components Group Mgr.
36 Parmenter Rd.
Hudson, MA 01749
(800) 654-3500 or (978) 568-0221
FAX (978) 568-1570
e-mail: anver@anver.com
www.anver.com


Number Cruncher (Series PNC)

Provides a cost effective solution for stamping identification characters into parts or material.High clamp force produces characters in draw quality steel at 70 psi.
Accommodates industry standard characters and retainers.
Operates quietly in less than 0.2 seconds.
Eliminates the downtime associated with changing or replacing characters.
Includes lockout pin for safety during tooling changes.
Available with side, bayonet, or rear mounting for maximum flexibility.
Anvils are color coded by material thickness and require no adjustment.
Jaws and body contain locking threads. No adhesive thread locker is required.
Two hardened steel plates eliminate damage from panel impact.
Rugged design for a minimum of 5 million trouble free cycles.
Fully field repairable in less than 20 minutes using only 3 metric hex wrenches.
Design provides a wide and deep throat to accommodate most applications.

Click here for PHD



Parallel Grippers (Series GRL)
Parallel jaw motion simplifies jaw tooling design and is ideal for gripping parts of varying sizes.
Double acting for use in both internal and external gripping applications.
Narrow width, low profile and long jaw travel for a wide range of applications where space is limited.
Rugged jaw support and hardcoated bearing surfaces ensure long service life.
Jaws and body feature dowel pin holes for accurate tooling alignment.
Available in either synchronous or non-synchronous versions.
Optional manifold ports allow elimination of external air lines.
Optional 6 mm square Hall Effect switches are available for indication of jaw position and simple interfacing to electronic system controls.



Click here for PHD



Parallel Grippers (Series GRR)
Narrow width and long jaw travel for a wide range of applications with limited space.
Rugged design withstands high impact and shock loads.
Dual, large diameter jaw guides provide low jaw deflection, high moment capacities, rugged performance, and long life.
True parallel jaw motion simplifies jaw tooling design and is ideal for gripping parts of varying size.
Double acting for use in both internal and external gripping applications.
Rack and pinion jaw synchronization provide minimal backlash. The rack is enclosed, protecting the mechanism from debris.
Jaws and body feature dowel pin holes for accurate tooling location.
TC fluoropolymer composite guide shaft bushings provide long life and high grip force.
Optional Rodlok� locks the jaws in a stationary position in the event air pressure is lost.
Proximity switches are available for indication of jaw position and interfacing to a system controller.

Click here for PHD



Parallel Grippers (Series GRW)
True parallel synchronous jaw motion simplifies jaw tooling design.
Large diameter jaw guides supported through the length of the body provide superior jaw stability, long allowable tooling lengths, and high moment capability.
Standard shock pads at both ends of jaw travel provide quite operation and absorb impact.
Less deflection.
Easy tooling with multiple mounting holes.
Double acting for use in both internal and external gripping applications.
Specially formulated nitrile piston and rod seals and internally lubricated bearings provide long service life.
Optional manifold porting available on either of the two standard mounting surfaces.
Optional 4 mm round inductive proximity or 6 mm Hall Effect switches are available for indication of jaw position and simple interfacing to electronic system controls.
Easily field converted to non-sychronous version.
Units are fully field repairable.

Click here for PHD



Cantilever Slides (Series SCV)
Ideal for non-rotating vertical applications or light duty horizontal applications where some deflection can be tolerated.
Available in 8 bore sizes from 20mm to 100mm, and standard travel lengths up to 12 in [300mm] to suit a wide range of applications.
Available in both imperial and metric versions for applications in worldwide markets.
PHD's rugged Series CV Cylinders power Series SCV Slide units.
Units specified with Hushcontrol� Advantage achieve superb speed control, deceleration control, and environmentally safe noise levels.
Ports, cushion controls, and port controls can be specified in any combination and in several locations on the cylinder head and cap for easy accessibility.
Optional NPT ports are available on metric units to meet specific customer requirements.
Optional PHD Read and Magnetoresistive Switches are available for simple interfacing to electronic system controls.
Standard internal shock pads on the cylinder eliminate metal to metal contact at ends of cylinder stroke.
Optional travel adjustment with shock pads provides versatility and eliminates metal to metal contact at ends of slide travel.
Anodized aluminum alloy tool plate with combination tapped and counter bored holes, and a precisely machined mounting surface make tooling attachment simple.
Optional Rodlok� securely holds a static tool plate in place at any point of travel desired. Ideal for applications where rod drift due to system leakage, airline rupture, or electric power loss is unacceptable.

Click here for PHD



Cantilever Slides (Series SD & SE)
Linear ball bushings or PHD’s TC fluoropolymer composite bushings are available in each series providing the best value with the least possible slide deflection.
Four bushings allow two hardened precision ground shafts to move smoothly while supporting the tool plate and attached loads, providing rugged precise linear motion.
Oversized guide shafts are available with TC bushings for maximum rigidity and minimum deflection.
Linear ball bushings provide optimum tool plate accuracy.
TC bushings are supplied with internal lubrication for maximum life.
Shaft seals are provided on units with linear ball bushings to protect them from external contamination.
Available in five sizes each with an oversized shaft available on each size to fit a wide range of linear motion applications.
Anodized aluminum alloy tool plates have combination tapped and counterbored holes and a precisely machined mounting surface, permitting easy attachment of fixturing.
Units are powered by PHD Cylinders for long life and a wide range of control and switch accessories.
Options include travel adjustments, shock pads, built-in speed controls (Port Control � ), and cushions to fit the slide to your specific requirements.
PHD Reed and Hall Effect Switches and industrial proximity switches are available for easy interfacing to electronic controls and logic systems.
Ports, Port Control, cushion, switch adjustments, and travel adjustment are on one side for easy access.

Click here for PHD

Cantilever Slides (Series SK & SL)
All SK and SL Slides can have either linear ball bushings or TC fluoropolymer composite bushings to provide optimum performance with minimum slide deflection for all types of applications.
SK and SL Slides are available in six sizes for application to a wide range of tasks.
Four bushings allow the hardened and precision ground shafts to move smoothly, ensuring rugged, precise linear motion of the tool plate and load.
Oversize guide shafts are available with TC bushings for maximum rigidity and minimum deflection.
Linear ball bushings and TC bushings have internal lubrication for maximum life.
Linear ball bushings provide lowest friction, highest load capacity, and optimum accuracy of tool plate motion.
Units with linear ball bushings have shaft wipers to exclude external contaminants.
Anodized aluminum alloy tool plates with combination tapped and counterbored holes and a precisely machined mounting surface permit easy attachment of tooling.
Slides are available without a cylinder and supplied with complete hardware for mounting standard VDMA/ISO cylinders.
Series SK and SL Slides are provided with Series CV Cylinders (sizes 72 - 76 only) which provide the following advantages:

Units specified with the Hushcontrol� Advantage provide superb speed and deceleration control and environmentally friendly noise levels.
Internal shock pads are standard.
Wide range of options.
Optional Rodlok�

See additional benefits in the Series CV catalog.
Provisions for 8 mm proximity switches are standard on all units.
Dowel pinholes are standard on housings and tool plates, and are available with a variety of optional fits.
Units bolt and dowel directly to metric Series SG gantry slides without need of a transition plate.

Click here for PHD

O-Ring Gripper Installer


AGI - American Grippers Inc. provides the most innovative pneumatic
industrial components on the market today.
The O-Ring gripper made for picking and placing O-Rings on the parts. The
twelve-jaw gripper has two independent pistons, the six spreading jaws are
double acting and the six ejector jaws are single acting. When air pressure
is applied to the first piston, six parallel jaws spread the o-ring. The
O-ring is stretched evenly in a hexagonal shape; this allows the O-Ring to be
expanded with considerably less deformation. The stroke can be precisely
adjusted using the setscrew. After the o-ring is expanded and over your part,
air pressure is applied to the second piston. This causes the ejector jaws to
push forward and press the O-Ring from the spreading jaws onto the part being
assembled.
The O-Ring gripper can be tooled to accommodate all types of rings, the
smallest would be the smallest you can make your tooling jaws to fit the
inside diameter and the largest is approximately four inches depending on the
cross section. End of stroke sensing is available for both the spreading and
ejecting jaws. The size of the units is 2.5 inches diameter by 2.7 inches
tall.
The new 2001 catalog features a complete range of products that include,
parallel grippers, rotary actuators, thrusters, powered slides, mini slides,
tool changers, overload devices, and specialty O-ring grippers.
AGI is making direct replacements for some of the most popular gripper
companies. Making several improvements over the competition, the AGI units
have performance advantages in the same size envelope. The latest technology
is incorporated, from the materials to the design allowing AGI to exceed past
the competition. The AGI advantage is listed for each category in the new
catalog.
These units are stocked at AGI - American Grippers inc. 171 Spring hill Rd.
Trumbull, CT. 06611 Phone # (203) 459-8345




PNEUTRONICS ?X-VALVE - SMALLEST VALVE ON PLANET EARTH

     Pneutronics  unveils  the radically different NEW X-Valve, the world's smallest  valve.  The  miniature  size,  innovative  design  and  unlimited industry capabilities have to be seen to be believed.
     The  patent-pending  X-Valve  significantly  reduces system size while providing pneumatic solutions in one ultra-reliable package making it ideal for  a vast array of industrial, medical and analytical applications.  It's a  two  position,  three-way digital valve that's only 8mm in width and the smallest valve in overall footprint area.  The unique body incorporates all the  functional  features  in  one  glass-reinforced  PBT  ?  (Polybutylene Terephthalate)  molded  body,  which  simplifies  the  design  and  reduces
components within the valve.

     With  fewer functional parts, there are less potential leak points and tolerance  problems  so  reliability  is  greatly increased while costs are significantly   reduced. Combining  the  body  and  coil  unit  with  the one-of-a-kind flow-through design, also enables it to handle flow rates far in  excess  of  other  miniature solenoid valves in its class, at pressures from 0 to 30 psig.

According to Jim Heselton, General Manager at Pneutronics:  "The
possibilities for the X-Valve are virtually limitless.  The unique size
design makes it ideal for a variety of industrial, medical, and analytical applications as an all-in-one solution.  Pneutronics is confident this valve will revolutionize the valve industry allowing OEMs to radically shrink package size.  We have already had a great deal of interest in numerous applications".

For more information visit www.Xvalve.com or contact:

Richard Parker
Parker Hannifin Corporation
Pneutronics Division
26 Clinton Drive, Unit 103
Hollis, NH 03049 USA
603-595-1500






Mini-ISO valve range launched by Norgren
Additional features of the Mini-ISO valve V44/V45 include:
        High flow: Cv of 1.2 (V45) and Cv of 0.9 (V44)
        Low 1.2W power consumption solenoid pilot
        Voltage variety of solenoid pilot 12V, 24V, 110V (DC) and 24V, 48V, 115V, 230V (AC)
        Accommodate high operating pressure of up to 230 psig (V44) and up to 150 psig (V45)
        Compact design (< 26mm width)

Modular subbases and end plate kits are shipped complete with fixing screws, eliminating the need for fixed length tie rods. The quick addition and removal of valve stations is greatly enhanced by this fixing screw design. Moreover, its sandwich flow control and pressure regulation options are complemented by the intermediate supply/exhaust module and the single valve shut-off plate.
Norgren




Compact modular valve islands

V20 (6mm, G1/8) and V22 (8mm, G1/4) series include 5/2, 5/3 or two 3/2 valves per slice. They are available with a choice of multipole connections and have built-in diagnostics and power saving. They are Fieldbus 11 compatible.

If you would like us to provide you with more information please click here Norgren





Membrane Driers

These new in-line membrane driers are easily installed and remove water down to a dewpoint of 44ºC below ambient. They produce minimal pressure drop and are completely maintenance free.

If you would like us to provide you with more information please click here Norgren





 Composite Fittings range new jewel in Norgren's pneumatic crown
Norgren, world leaders in pneumatic components and automation systems, has launched a core range of composite fittings, Pneufit C. The company has invested well over $2 million in developing the combined plastic and brass range which will complement its popular existing range of all-brass fittings for pneumatic tubing and air-line systems.

Features of the Pneufit C range, which has more than 280 part numbers,
include nickel-plated brass threads and silicone-free seals for use in
various environments. Norgren has designed the range to be ultra reliable and very easy to use.

The company has patents pending on three elements of their design; an
ultra-sonic welding technique which gives the fittings extra strength for superior pull-out loads; an advanced grab-ring design which provides the secure grip on many tubing types; and a smoother swivel joint than competitor products allowing easy free movement on applications.

"The range is particularly appropriate for sectors such as printing,
packaging and semi-conductor, which increasingly require lighter, smaller composite fittings", said Terry Weeber, Norgren's vice president of marketing. "The size and weight of pneumatic components are becoming more important generally, as machines become smaller and more compact."

The Pneufit C range has been designed for applications where brass fittings have been either too heavy or too big. The range fits tubes of many types, including soft PU Tube (85d) through to copper and stainless steel. Weeber said original equipment designers were increasingly specifying softer PU tubing, which connects better to plastic than to brass.

Norgren has introduced dedicated personnel and new training and
manufacturing methods to develop and produce the range including investment in six new plastic moulding machines, over 65 new mould tools and ultrasonic welding equipment.

The tube and thread connectors are manufactured at a dedicated unit in
Norgren's fittings factory in Lichfield UK, while inline non-return and
inline flow-control valves are being made at Norgren's Spanish plant near Barcelona.

The Pneufit C range is identifiable in Norgren's corporate colors of black bodies, red (metric) or gray (inch) push buttons. An additional component called the C-Clip can also be supplied in different colors to provide engineers with a method to differentiate between air sources on their applications. The C-Clip also provides a tamper-resistance feature.

Customers can order the Pneufit C range and Norgren's traditional range of brass fittings via Norgren's Webstore at www.norgren.com, which carries the full range of Norgren products including air preparation equipment, valves and actuators.

For more information please contact:
Norgren




 Festo's Modular Control Node Offers Economical DeviceNet� Interface and Allen-Bradley SLC-500� PLC Performance For Compact Valve Manifolds

The importance of positioning pneumatic valves in near proximity to their respective actuators is becoming increasingly more important, as contemporary automation technology continues to push the "performance envelope" well beyond traditional proportions. Several years ago, the introduction of Festo Corporation's Compact Performance Valve (CPV) series was a major breakthrough in perpetual efforts to design a system that moved control valves as close as possible to their respective actuators. This, in an effort to overcome the logistical issues connected with the needs of modern automation, including the inherent effects of compressibility in pneumatic automation.

Adding to the excitement of the CPV's design, is the prospect of controlling these highly efficient and capable manifolds with a popular PLC that could also be exposed to the perils of industrial environments while offering a familiar Allen-Bradley platform from which to operate. Beyond that, was the desire to make the system compatible with a DeviceNet communications network. The challenge was met by Festo's "Economy Control Node", which, like its companion unit for type 03 manifolds, the SF 6, is a licensed, full-function Allen-Bradley SLC-500 with an integral DeviceNet scanner, packaged in an IP 65 proetected enclosure for industrial environments and a wide range of interface and network configuration options.

Compact Performance Valve types CPV and CPA are supported by the Economy Control Node, and its SLC-500 functionality. This integration of licensed leading-edge electronics and proprietary miniaturized pneumatic manifold technology, adds a new dimension to the viability of precision pneumatic automation. Various configurations of valves and I/O are available, to allow these miniaturized valve manifolds to be mounted efficiently on machines in applications where space is at a premium and the proximity of the valve to its respective actuator is critical for performance. As many as four valve manifold groups, each with up to 16 solenoids and 32 I/O, can be connected and controlled by a single Economy Control Node with DeviceNet scanner. Each of the manifold groups is interfaced to the control system via a single wire. The manifolds themselves are available with 10, 14 and 18 mm ports, and they feature high flow rates (400 to 2,100 liters per minute) for up to 16 valve coils per manifold equipped with any combination of 3/2-, 5/2- and 5/3-way valves.

Programming of the PLC (Economy Control Node) in these systems is essentially identical to that of an SLC-500, and familiar techniques can be applied to derive a savings in programming time. The unit accepts APS, A.I., and RS-Logix 500 programming software.

For Further Information Contact:
Festo Corporation
395 Moreland Road
P.O. Box 18023
Hauppauge, NY 11788
Phone: (631) 435-0800
FAX: (631) 435-8026
www.festo-usa.com



 The "Smart" Positioning Controller (SPC 200), Festo's latest addition to its highly capable servopneumatic positioning system, is a 2-axis unit, designed to simplify system configuration and programming. It has been developed to provide extended flexibility with a minimum amount of effort and knowledge, and to reduce the cost associated with implementing and commissioning the system. The controller can operate in a coordinated fashion with each instruction in a program controlling the position of both axes, or it can operate autonomously, with each axis having its own set of independent programs. Future expansion will allow the SPC 200 to support up to 4 axes.

The SPC 200's Input and output capability is expanded to provide more I/O than previous axis controllers, including compatibility with Festo's CP (Compact Performance) line of valves and I/O devices. This expanded capability can be used for operating devices such as grippers, auxiliary actuators.

When connected to the SPC 200, CP devices operate on a CAN-bus network, which drastically simplifies wiring and installation of distributed I/O. The control system has been made modular to provide even more flexibility. Each axis utilizes an interface module; specifically designed to perform all signal conditioning required for communication to the controller over the CAN network. This eliminates the need to have different controllers for different types of feedback devices.

Festo's application development software (WinPISA) has been specially written for use with the SPC-200 controller. WinPISA software is a Windows-based program that provides a familiar operating platform, and the ease of NC commands compliant with DIN 66025. The command set has been expanded to include several new commands, and many of the existing commands from earlier programming software versions have been made easier to use through new features and some logical syntax changes.

The SPC 200's expanded graphing capability allows the user to upload performance data from the axis during debugging or during the actual process run. The graphing feature can plot Desired or Actual curves for Position, Speed, and Acceleration, as well as, Valve Output and Motion Complete signals on the screen, in a window. The Windows drag and drop features make zooming-in on a detail extremely convenient. For purposes of comparison, several different graphs can be displayed simultaneously. In addition, other functional improvements to the software include program debugging and I/O status observation.

The introduction of SPC 200 marks Festo's commitment to providing user-friendly solutions for sophisticated applications, with modular "plug-and-play" technology. A servopneumatic system can not only be assembled quickly and accurately, due to

Festo's pneumatic linear actuator design, but also programming tasks that represented significant effort in the past can now be handled with easy-to-use, Windows�- based software.

For Further Information Contact:
Festo Corporation
395 Moreland Road
P.O. Box 18023
Hauppauge, NY 11788
Phone: (631) 435-0800
FAX: (631) 435-8026
www.festo-usa.com



 Festo's Mini Slide Units Bring Precision to Pneumatics in Handling and Assembly Technology

Festo Corporation's Handling and Assembly Technology (HAT) systems are based on a key word, "precision." Precision, not only in the large stroke, high-force and rugged pneumatic linear positioning equipment, introduced under the acronym "HAT," but also, the precision in smaller pneumatic mini slides performing highly intricate tasks while positioning a vast array of sensors, probes, end-effectors and tools used in conjunction with HAT.
The SLF, a low profile unit which employs integral, parallel pneumatic actuator (side drive), and precision double-row caged ball bearings to provide extremely accurate travel, with high resistance to rotational moments, while offering up to 80 mm stroke (16mm bore). These units are available with 6, 10 and 16 mm bore sizes, and stroke range of 10 to 30 mm, 10 to 50mm and 10 to 80mm, respectively.
The SLS design, has the capability to be installed in tight quarters, due to its narrow design and centerline thrust configuration. The actuator, which is positioned directly under the units double-row inline bearing and guide rail system, drives a narrow right-angle slide (L-shaped). This configuration enables the SLS to offer at least 50% more resistance to pitch, yaw and roll errors than most of its competitors.
The twin piston style SLT slide unit, also utilizes inline, double-row ball bearings on a single profiled guide rail (centrally positioned) in an efficient configuration. This group of mini slides offers more models (longer stroke lengths) than other competitive models of the same bore size. This efficiency can be attributed to their bearing and dual actuator drive system. The design also enables the unit to operate faster in colder environments that it leading competitor, and within the smaller models (6mm bore with strokes to 30mm), the SLT is capable of handling higher rotational moments.
These highly engineered, instrument grade slides are suitable for installation in any orientation, and they can be easily mounted Festo's HAT systems, or they can stand alone in applications where precision motion is required.

Festo
395 Moreland Road
P.O. Box 18023
Hauppauge, NY 11788
Phone: (631) 435-0800
FAX: (631) 435-8026
www.festo-usa.com



  MINIATURE SUCTION CUPS
MATCH PRECISE APPLICATION REQUIREMENTS

A full line of miniature suction cups, molded from a wide variety of specialized materials in a broad range of sizes and configurations, has been introduced by ANVER Corporation of Hudson, Massachusetts.

ANVER Mini Suction Cups are molded from specialized materials including non-marking silicone, NBR, nitrile, neoprene, natural gum rubber, vinyl, or urethane in sizes from 0.13 inch (3mm) to 3.74 inch (95 mm) diameter. Developed to match precise vacuum manipulation requirements, these miniature suction cups come in flat and single- or multiple bellows styles.

Ideal for high technology pick-and-place applications, ANVER Mini Suction Cups are suitable for food and pharmaceutical processing, laboratories, and cleanrooms. Non-marking silicone cups are molded from a clear, translucent FDA-approved compound and contain no dyes that can leach out at high (600°F) temperatures. Anti-static formulations are also offered.

ANVER Mini Suction Cups are priced according to configuration, material, size, and quantity. Free samples, literature, and pricing are available upon request or on-line at www.anver.com.

For more information contact:

ANVER Corporation
Mark Laycox, Group Manager
36 Parmenter Rd.
Hudson, MA 01749
(800)654-3500 or (978)568-0221
FAX (978)568-1570
e-mail: info@anver.com
www.anver.com







Festo Corporation, a world leader in design and development of pneumatic solutions for automation processes, has announced the introduction of the CRHD Linear Actuator Series for hygienic environments. The latest addition to the Company's extensive selection of stainless steel actuators, Type CRHD offers all the environmental features that brought prominence to earlier models aimed at the chemical and food-processing environments. Type CRHD, however, breaks new ground with respect to conformity with the needs of hygienic applications in pharmaceutical and medical processes.

Prior to the introduction of CRHD actuators, the CR Series serviced aggressive environments, where acids, bases, highly aggressive media and cleaners challenged the integrity of the stainless steel actuators. The new stainless steel CRHD design meets and exceeds these capabilities, and in addition, offers unmatched compatibility with sterile operating environments due to its inherently streamline (cylindrical) shape, and integral mounting component on the rear cap. There are no corners or debris collection points on the exterior surface, so efficient "drain-off" of fluids is assured during cleaning activities. The units are tested for compatibility with harsh environments, including hot/cold aging at temperatures ranging between +120°C to
-20°C, resistance to condensation and spray mists of sodium chloride.

The product range includes bore sizes between 32 to 100mm, and stroke ranges from 10 to 500mm. CRHD units can be ordered with either a polyurethane (PU) or viton wiper seal for compatibility with a wide range of applications. High temperature operations (up to +150°C) are supported by a FKM wiper seals option. Two different bearing caps and three different rear-end caps are used to derive mounting configurations that include, threaded holes in the rear cap and a specially designed (hygienic) thread collar and shoulder on the bearing cap; clevis attachment in rear cap, and a lug attachment on the rear cap. The piston rod ends are fashioned with thread and nut, and options for either a clevis or rod eye are available.

Festo's hygienic design concept make the most of clean-in-place (CIP) and sterilize-in-place (SIP) requirements of medical and pharmaceutical applications, because the CRHD series features minimal gaps in the assembly and peak-to-valley variations in the external surfaces between 0.5 to 0.6 microns.

Regardless of the application, CRHD cylinder characteristics complement not only extended requirements of hygienic environments, but they also support all of the demands for cleanliness and resistance to harsh environments present in food processing and packaging, and chemical processing.

395 Moreland Road
P.O. Box 18023
Hauppauge, NY 11788
Phone: (631) 435-0800
FAX: (631) 435-8026
www.festo-usa.com



 You don't have to "overkill" DeviceNet controlled pneumatic valve applications anymore. Now, Festo offers an alternative to traditional type 03 and 04 valve sensor manifolds, which have won fame and favor in pneumatic automation environments with their "plug-'n-play (no wiring) design and modular functionality.

The introduction of the new IDN Interface Module has simplified using DeviceNet communications for controlling low-density manifold configurations (up to 8 solenoid coils). Not unlike the "full-blown" predecessors of the IDN, namely the F11 on manifold types 03 and 04, which were made famous for reducing the time, labor and costs involved in bringing pneumatic systems on line, the IDN fills a void created by a need to network Midi/Maxi and ISO 5599II valves in smaller and less intense remote terminals, absent the inputs found in the larger units.

IDN-controlled manifolds are also totally modular, and support plug-in valves, sub bases, flow controls, pressure regulators and DeviceNet adapter. They offer IP-65 protection and CE compliance, and they can be made compatible with E-Stops via an auxiliary power connector. These low-density configurations are also flexible in accepting a mixture of single and double-solenoid 5/2- and 5/3-way valves.

395 Moreland Road
P.O. Box 18023
Hauppauge, NY 11788
Phone: (631) 435-0800
FAX: (631) 435-8026
www.festo-usa.com


 These days, Festo is making 'em short-and-sweet- short stroke, sweet design, and yes of course, compact in size! The Company's recent introduction of the truly "short-stroke" pneumatic cylinders known as types AEVC and ADVC (single- and double-acting units, respectively) has consolidated Festo's position among competitors in the highly efficient cylinder design arena.

One of the outstanding features of these new units, which are expected to replace virtually all first generation short stroke units from the AV Series, AVL and ADV Series, is the highly efficient, "one-piece" design, which results in as much as 33% space savings over typical ISO 6431 cylinders for a given stroke length.
Additionally, the AEVC and ADVC cylinders offer a complete configuration range, consisting of 13 bore sizes to support virtually any applicable dynamic requirement in stroke lengths between 2.5mm and 25 mm. They offer a choice of internal or external piston rod threads, improved cushioning, sensor options above 4-mm stroke, and eight different mounting attachments. AVEC and ADVC cylinders are suitable for replacement of as many as 31 models of Festo's first generation short stroke cylinders for the AV, AVL and ADV Series.

Fabricated from aluminum profiles and equipped with sensor mounting grooves (above 4 mm bore size), the cylinders are designed to provide sufficient overlap with respect to stroke range and dynamic capability to afford the user the highest degree of force generation capacity to relative stroke and dimensional size. The six models (32- through 100-mm rod diameter) are VDMA 24562 compliant, while smaller units are equipped with through-holes for mounting. These characteristics position the Festo's AVEC and ADVC "short stroke" units ahead of their closest competition, since they exhibit uniform advanced design via second generation sophistication, compatibility with a single integral groove-mounted sensor, and worldwide availability.
Festo Corporation

395 Moreland Road
P.O. Box 18023
Hauppauge, NY 11788
Phone: (631) 435-0800
FAX: (631) 435-8026
www.festo-usa.com


 MULTI-STAGE AIR POWERED VACUUM PUMPS
FEATURE INTERNAL SILENCER AND COMPACT PACKAGE

A new series of multi-stage air-powered vacuum pumps that feature built-in silencers, making them the most compact multi-stage vacuum pumps on the market for material handling, packaging, automation, and laboratory applications, is being introduced by ANVER Corporation of Hudson, Massachusetts.
ANVER MSPX Series Multi-Stage Vacuum Pumps are air-powered units that operate using the venturi principle and feature built-in silencers that save space and run quietly at 60-65 dBA. Providing vacuum levels down to 27" Hg and flows to 42 SCFM, each pump has four vacuum ports for plumbing versatility and uses industry standard mountings for all sizes.
Designed for a wide range of applications requiring a high flow rate at moderate vacuum levels, ANVER MSPX Series Multi-Stage Vacuum Pumps incorporate lightweight, yet precise aluminum and composite construction. All pumps include a vacuum gauge, 1/8" ports for optional sensors and switches, BSPP and NPT adapter fittings, and two mounting brackets and screws.
ANVER MSPX Series Multi-Stage Vacuum Pumps are competitively priced, and OEM and distributor discounts are offered. Literature and pricing are available on request and online at http://www.anver.com.

For more information contact:

Anver Corporation
36 Parmenter Rd.
Hudson, MA 01749
(800) 654-3500 or (978) 568-0221
e-mail: mlaycox@anver.com
www.anver.com



 PIAB, with over 30 years of experience in industrial vacuum products, now launches a completely new technology, the COAX( technology. This new concept makes it simpler than ever to use vacuum. Tomorrow's vacuum pump is at your service today.

The emphasis on this new range of vacuum pumps using the COAX( technology, the P3010 Series, is on modularity and efficiency. The core of the system is a compressed air-driven vacuum pump module. This patented design expands the compressed air in several stages in a straight-through manner. This allows for greater amounts of vacuum flow while consuming less compressed air than conventional pumps.

The pump module is clipped onto a "click-in" strip that can handle up to four pumps, without tools. There are a number of pump accessories, all very easy to attach. These include connector modules for either three or six possible vacuum connections, vacuum switches, quick-release modules that provide a "puff" of air to blow off parts for faster work cycles. There are also extra pump modules to increase performance.

The pumps are designed to be easy to maintain and simple to install. They are 0.65" wide and weigh about 3 ounces. They can create a vacuum pressure as low as 27 -inHg at 45-psi inlet pressure. The pump has no moving parts that means the noise level can be held down to 66 d(B)A. There is no need for lubrication and there is no risk of static build-up or sparks.

PIAB Vacuum Products
55 Accord Park Drive
Rockland, MA 02370
Phone 800-321-7422/781-792-0003
Fax 781-792-0574
www.piab.com or info@piab.com



 ISO Stainless Steel Cylinders

These 32 to 125 mm bore double acting cylinders are perfect for use in the food industry and other applications demanding hygiene and corrosion resistance.

For more information please contact:
Norgren




 Guiding and Stopper Cylinders

These new cylinders are ideal for handling and precise guiding and positioning applications.
The M/61000/M with plain bearings can absorb high side and impact loads and can be used as a stopper cylinder in handling systems or for precise guiding of heavy loads in conveyor systems.
The M/6100/MR has ball bearings and is perfect for guiding operations with an accuracy of �0,02mm.

For more information please contact:
Norgren




 LINTRA electric actuators

Total precision control of position, speed and force is now possible using our new LINTRA electric linear actuators. Fully interchangeable with our LINTRA pneumatic cylinders and accessories they are available with a wide choice of drive motor and spindle types in five nominal sizes from 25mm to 63mm providing from 500N to 6000N maximum force.

For more information please contact:
Norgren


 Stainless steel fittings

Push-in design tube fittings in stainless steel are now available in five tube sizes 4-12mm and three thread sizes 1/8", 1/4" and 3/8". They are easy to use, very compact and have full flow and are available in a range of body types ideal for food and process industry use.

For more information please contact:
Norgren




 Silicone Suction Cups Handle High Heat Applications
A new line of silicone suction cups that are molded from a proprietary compound, without dyes, and can operate at temperatures of up to 600� F is being introduced by ANVER Corporation of Hudson, Massachusetts.
ANVER SIT-2000 Silicone Suction Cups are molded from a clear, translucent compound that is FDA-approved and contain no dyes that can leach out at temperatures up to 600� F. Soft and pliable (60 durometer typical, depending upon thickness), these non-marking suction cups are available in flat-, single-, and multiple-bellows configurations in sizes from 5 mm to 150 mm diameter.
Better suited for food and packaging applications than conventional colored silicone suction cups containing dyes, ANVER SIT-2000 Silicone Suction Cups will not leave a mark on the object being handled. All cups are 100% interchangeable with PIAB� brand cups and are unmarked for OEM use.
ANVER SIT-2000 Silicone Suction Cups are priced according to style, size, and quantity, with delivery from stock. Free samples, literature, and pricing are available upon request or on-line at www.anver.com.
For more information contact:
ANVER Corporation
Mark Laycox, Group Manager
36 Parmenter Rd.
Hudson, MA 01749
TEL (800)654-3500 or (978)568-0221
FAX (978)568-1570
e-mail: sales@anver.com
http://www.anver.com





New Micro Controller With Ethernet Connectivity Offers Simple, Low Cost Distributed Processing, and Local & Remote Process Communication

Now distributed processing is not only simple, but also inexpensive with the FEC-FC34 from Festo Corporation. This compact micro controller, with its Ethernet 10Base-T connectivity and TCP/IP protocol, offers the system designer the option to link multiple FEC-FC34 units for the purpose of handling distributed processing tasks. The powerful, 16-bit 20 MHz processor allows for multi-tasking of up to 64 programs with 24VDC, 12 inputs (user configurable as PNP or NPN) and 8 outputs. Two of the inputs can be used as high speed counters. Using WIN FST software allows for easy controller programming, utilizing IF, THEN, OTHERWISE type statements in Festo Statement List software.

For more information, contact
Scott Schuler
Festo Corporation
Tel: (613) 435-0800 ext. 383
Fax: (631) 435-8026
E-mail: Info@festo-usa.com
http://www.festo-usa.com



 RECTANGULAR SUCTION CUPS
PROVIDE BETTER GRIP AND SUPPORT

A new line of rectangular suction cups for handling a wide variety of long, thin products such as injection molded parts or food, cookies, and candy is being introduced by Anver Corporation of Hudson, Massachusetts.

Anver Rectangular Suction Cups are designed to handle long and thin products that previously required multiple round cups to stabilize the load. Featuring a larger surface area than round cups, they provide a better grip and support using only one cup and suspension.

Precision molded from FDA-approved, non-marking silicone or nitrile,
Anver Rectangular Suction Cups are offered in a wide range of sizes from 0.39" to 3.94" L X 0.27" to 1.38" W and various depths. They can be supplied with fittings, suspensions, and tubing.

Anver Rectangular Suction Cups are priced according to material, size, and quantity. Samples, literature, and pricing are available on request.

For more information contact:

Anver Corporation
36 Parmenter Rd.
Hudson, MA 01749
(800)654-3500 or (978)568-0221
FAX (978)568-1570
e-mail: sales@anver.com
http://www.anver.com



 SPC’s New Compact Fittings- 40% Smaller!

SPC’s new line of inch & metric compact fittings are specifically designed for pneumatic installations in equipments that are small and compact in size. SPC compact fittings are 40% less in volume and 20% less in outside diameter in comparison to the standard type. Available in the following metric sizes: 3, 4, & 6mm in tube diameter in conjunction with M3, M5, M6, and R1/8 thread sizes. Available in the following inch
sizes: 1/8 & 5/32 with 1/4 inch soon to follow and thread sizes of 10-32UNF and NPT1/8. SPC Compact Fittings are designed for temperatures of 0-60C (32-140F) and maximum operating pressure of 150PSI. SPC’s compact fittings may be smaller in size, but proves just as durable and effective than the standard type.

For more product information: Please Contact
SPC
377 Van Ness Way, Suite 1206
Torrance, CA. 90501
Tel: (310) 212-5568
Fax: (310) 212-5583
http://www.ajatrade.com




 AutoDrill offers, for the manufacturing production industry, a fast low cost
method to drill holes. The Series 2000 and Series 2100 Self-feeding Drill
Units are designed to produce simultaneously one or many accurate holes in
production parts. Cycle times faster than some CNC equipment are possible.
Operations that are difficult to perform by other fabricating methods can be
setup for automatic trouble free production. Much less operator training is
required than for other hole making methods.

The built-in pneumatic stroke cylinder is the secret to AutoDrill’s
capabilities. Available in 2", 4" and 9" stroke lengths, they handle most
existing or new drilling operations. Many drills can be operated in parallel
to give extremely short cycle times for gang hole drilling. An electric
motor with an industrial duty HTD timing belt system completes the standard
package. Options to integrate the drills into existing operations or apply
PLC logic with the equipment are available.

Simple semi-permanent jigs can be assembled for repetitive drilling
applications. Free application engineering is offered with the equipment.

For more information contact:
AutoDrill
50 Division Avenue
Millington, NJ 07946
Ph: 800-871-5022
Fax: 908-542-0242
www.AutoDrill.com




 A new line of precision molded vinyl vacuum cups that are completely degassed, molecularly fused, highly elastic, and long wearing, is being introduced by Anver Corporation of Hudson, Massachusetts.
Anver Molded Vinyl Vacuum Cups are vulcanized; that is, molded with a combination of pressure and heat which produces a completely degassed, molecularly fused, uniform, and highly elastic long wearing material. Available in flat, bellows, and slip-on seal configurations and in a wide range of sizes, these cups are non-marking on glass and painted surfaces.
Featuring better memory and material density than conventional molded cups produced by being merely poured into a mold, Anver Molded Vinyl Vacuum Cups are designed for 0°C to 70°C (32°F to 158°F) operation, and are UVA-, UVB- and ozone- resistant for use in a variety of environments.
Anver Molded Vinyl Vacuum Cups are priced according to size, configuration, and quantity. Samples, pricing, and literature are available upon request.

Anver Corporation



 Bubble Tight Dual Checks with Manual Release

NGT's new line of pneumatic dual checks are designed to lock bubble tight, in the event of a pressure loss. Dual checks help control cylinder travel by locking air on both sides of the cylinder when the valve is closed. No pilot lines are required. The balanced poppet reduces the force required to open and close the valve and eliminates wear due to impact. Two air cushions at either end of the spool also help to reduce impact forces. The valve body is hardcoat anodized for wear and corrosion resistance. The internal components are aluminum and stainless steel. The manual release allows the operator to internally release trapped pressure without opening a line. Sizes range from 1/8 to 1/2 NPTF. Flow coefficients (Cv) range from 1.5 to 4.



 Mini Chip Vacuum Pumps are small yet powerful!
For immediate release.
Rockland, MA, March 1, 2000: PIAB Vacuum Products, suppliers of compact, maintenance-free vacuum pumps and accessories, announces an improved series of pneumatically driven vacuum pumps. Seen for the first time at the NEPCON West show, the new Low-Pressure Mini Chip vacuum pumps are designed to handle low or fluctuating compressed air pressures.

These vacuum pumps, at an inlet pressure of only 55-psi, provide down to 24.1 -inHg of vacuum pressure. As with all PIAB's multi-ejector vacuum pumps, the Low Pressure Mini Chip Series pumps are quiet, small, efficient, easily installed and virtually maintenance-free.

These vacuum pumps are available in several mounting arrangements to suit your application needs, including high-tech composite for lightweight needs or durable aluminum. Ideal for end-of-arm tooling and wherever space is at a premium, the Mini Chip Pump is the solution.
www.piab.com



SMART GUARD�
ZERO AIR LOSS DRAIN

We have developed a major breakthrough in compressed air condensate removal.
The new SMART GUARD� drain system uses
state-of-the-art software in combination with a special transducer interface to measure the presence of condensate, volumetrically, 50 times per second.

There is no loss of compressed air. Continuous
monitoring insures fast, effective discharge of
up to 40 gallons (120 liters) per hour.

There are no sensors to foul up and the unit functions equally well with clear water or heavily emulsified and dirty condensate.

The SMART GUARD� requires no anti-syphon pipeline. A specially designed direct operating valve with a large orifice protects against blockage. Self calibration and an automatic re-set protects the unit against voltage peaks or other electrical supply fouling.

The SMART GUARD� operates in a pressure range from zero to 230 psig (16 bar) and the large condensate removal capacity makes it suitable for all applications, regardless of size. A clear bowl offers fast visual inspection.

SPECIFICATIONS
Inlet connection �"
Min./Max pressure 0 to 230 psig (0 to 16 bar)
Min./Max. temperature 36ºF to 122ºF (2ºC to 50ºC)
Voltage connection 115VAC 50/60Hz or 230VAC 50/60 Hz., IP 65
Valve 2/2 way direct acting with large orifice, FPM seals, brass
body, stainless steel inner parts, group H coil insulation
Condensate reservoir LEXAN, clear bowl for visual control
SMART GUARD�
Its SMART� It GUARDS�
- 87C50 microcontroller - 50 measuring checks per second
- Special Transducer Interface - Visual control through clear bowl
- Self calibrating - Not effected by emulsions
- Automatic re-set - Not affected by syphon effect
- No sensors to foul up - Large orifice for fast discharge
- No air loss.

www.jorc.com

Precision Parts Handling

Ronkonkoma, NY January 15, 2000, Precision Pneumatics � New to the market Precision Pneumatics "Dual Slide"
Pick & Place, 2-axes of motion in one housing.

The only 2-axis positioning system of its kind. Precision Pneumatics� "Dual Slide" Pick & Place is different from those of
our competitors because it offers these advantages:

Features & Benefits

bulletUni-block design-Greater speeds due to lower inertia

Two axes of motion in one housing:

bulletFaceplates are precision machined - Accurate mounting of end effectors
bulletCable Carriers, for tubing - Prevents sagging and pinching of wires & sensors, and air hoses: protects sensors
bulletIntegrated cylinders: - Compact size, and lighter weight
bulletFine adjust stop collars: - Allows for exacting precision

Other features:

No Interface Plate Required, Custom Faceplates, Custom Mounting Stands, High Precision Placement for Grippers and Tooling, also, Dual Slide Pick & Place is available in 5/8", 1" and 1 �" bores, with maximum stroke lengths up to 18 inches.
www.precision-pneumatics.com





 New air-driven vacuum pumps provide 27 -inHg at only 50 psi!

Rockland, MA, December 7, 1999:

PIAB Vacuum Products, suppliers of compact, maintenance-free vacuum pumps and accessories, announces an improved series of pneumatically driven vacuum pumps.

The new Low Pressure M Series vacuum pumps have been designed to handle low or fluctuating compressed air pressures. These vacuum pumps, at an inlet pressure of only 50-psi, provide up to 27 -inHg of vacuum. As with all PIAB's multi-ejector vacuum pumps, the Low Pressure M series pumps are quiet, small, efficient, easily installed and virtually maintenance-free.

Each Low Pressure M pump has very broad application capabilities that allow the user to choose a vacuum pump without the need to specify very precise operating characteristics.The durable Low Pressure M pumps are ideal for applications requiring high flow at moderate vacuum levels. They can be used in packaging systems, for laboratory use, for materials handling, and in vacuum systems for other industrial automation applications.The Low Pressure M Series pumps feature an aluminum connection plate for durability and a lightweight PPS composite body (1.43-1.80 lb.) that provides for easy assembly and disassembly with only four bolts to remove.

PIAB Vacuum Products
55 Accord Park Drive
Rockland, MA 02370
Phone 800-321-7422
Fax 781-792-0574
www.piab.com
info@piab.com



PLASTIC MANIFOLDS offer the smallest and lightest package available for the mounting of air valves. Most manifolds are made of metal; our manifolds are made of light weight durable plastic. Available in clear (or opaque) acrylic or clear (with grayish tint) PVC.
 Plastic manifolds allow custom circuit designs for mixing pressure and vacuum, 3-way with 4-way valves, top or bottom ports,etc.
 Standard features include: bonded-in miniature brass inserts, glass-like polished bores, fully annealed for long life, operating pressure to more than 125 P.S.I.G.

Rothermel Associates
voice: (305) 556-4801
web page:
http://www.rothermelassociates.com




Do you know that
* Every single bar of overpressure takes 6 - 10 % more energy !
* 80 - 90 % of the costs from producing compressed air are energy cost !

With this in mind Cubeair proudly presents the first cost saving
fixed-pressure in-line regulator ever produced. It is intended to be
used in places where you, untill now, used the line pressure because it
was convenient to do so. This is however a waste of energy and money. In
many situations you do not need the high line pressure. In allmost any
piece of automation and handling equipment you have components that
could work well with reduced pressure. This could be the return stroke
of cylinders. For blow guns it is evident that a reduced pressure saves
money and improve the safetylevel using the blow gun. Add to these
advantages that the Cubeair in-line regulator cost far less than a
variable pressure regulator. The in-line regulator is available in fixed
pressures of 1, 2, 3, 4, 5, 6 bar as a standard and optionally in any
pressure for oem use. To get more information about the Cubeair in-line
regulator please contact us at cubeair@cubeair.dk or visit us at our
homepage at
http://www.cubeair.dk.

DISCLAIMER
All information contained within the Pneumatics Online Web Site is the property of Pneumatics Online. Reproduction, redistribution or modification of the information is prohibited without the express written permission of Pneumatics Online.

COPYRIGHT �1997-2004 Pneumatics Online
